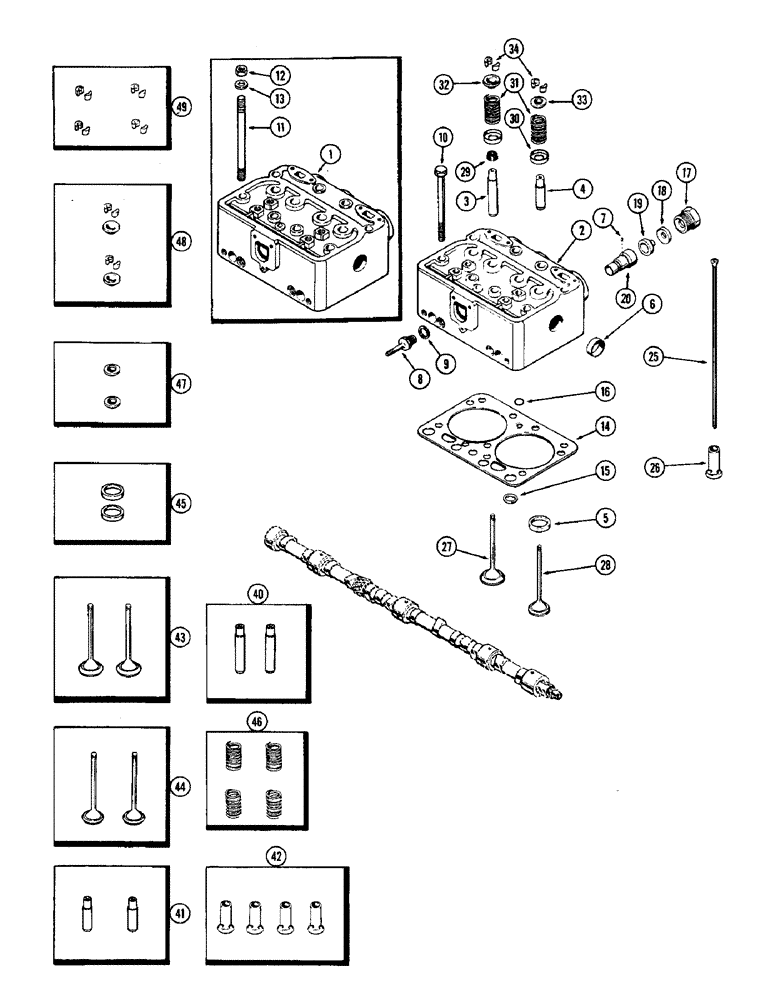

Запчасти Case W10 (006) - CYLINDER HEAD AND VALVE TRAIN (02) - ENGINE

1

A11814

NO LONGER SERVICED

HEAD ASSY. (Casting No. A11800) Prior to loader SN 8162900, Includes: Ref. 3 - 9

3шт.

The cylinder head and block stud pattern was changed at loader SN 8162900. Use A24462 gasket for early pattern and A23118 for later pattern.

1шт.

2

A20956

HEAD (CYLINDER)

HEAD ASSY. - (Casting No. A20957) 1st used loader SN 8162900, Includes: Ref. 3 - 9

3шт.

The cylinder head and block stud pattern was changed at loader SN 8162900. Use A24462 gasket for early pattern and A23118 for later pattern.

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 40)

2шт.

4

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 41)

2шт.

5

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 45)

2шт.

6

A34124

PLUG,Cup, 1 5/8", Stainless

- cup (1-41/64" dia.)

2шт.

7

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel (1/8 x 17/64")

2шт.

8

A10678

STUD

- injector

2шт.

9

A10679

GASKET

- stud (23/32 x 29/32 x 1/32" copper)

2шт.

10

A23355

BOLT

- head to block (See ref. 11)

27шт.

11

A21058

BOLT

- head to block (Early production)

27шт.

12

25-119

NUT,9/16"-18, G5

- head stud, 9/16" N.F. hex

27шт.

13

A27870

WASHER

- stud nut (w/A21058 stud only)

27шт.

14

A24462

GASKET

- head to block (Prior to loader SN 8162900)

3шт.

14

A23118

GASKET

- head to block (1st used loader SN 8162900)

1шт.

15

A7669

RING

"O" RING - water passage

6шт.

16

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage

3шт.

17

A11813

PLUG

SCREW - powrcel clamp

6шт.

18

A11812

CLAMP

- powrcel

6шт.

19

A22979

CAP - powrcel

6шт.

20

A22978

BODY

- powrcel

6шт.

25

A21060

ROD

- push

12шт.

26

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 42)

12шт.

27

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 43)

6шт.

28

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 44)

6шт.

29

A10726

SEAL

SHIELD - oil intake valve stem

6шт.

30

A27866

SEAT

- valve spring

12шт.

31

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 42)

12шт.

32

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 48)

6шт.

33

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 47)

6шт.

34

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 49)

24шт.

40

A21671

GUIDE

KIT - intake valve (Set of 2)

3шт.

41

A21674

GUIDE

KIT - exhaust valve (Set of 2)

3шт.

42

A21654

KIT

LIFTER KIT (Set of 4) Prior to loader SN 8162900

3шт.

42

A21653

KIT

LIFTER KIT - (Set of 4) 1st used loader SN 8162900

3шт.

42

A22463

KIT

LIFTER KIT - (Set of 4 .010" oversize)

3шт.

43

A40351

KIT

VALVE KIT - intake (Set of 2)

3шт.

44

A24770

VALVE

KIT - exhaust (Set of 2)

3шт.

45

A57484

INSERT

KIT - valve seat (Set of 2) (Replaces A21681)

3шт.

46

A21694

SPRING

KIT - valve (Set of 4)

3шт.

47

A24993

CAP

ROTO-CAP - (Set of 2)

3шт.

48

A21657

LOCK

RETAINER KIT - intake valve spring (Set of 2 includes 4 locks)

3шт.

49

A40352

LOCK

KIT - spring retainer (Set of 8)

3шт.
