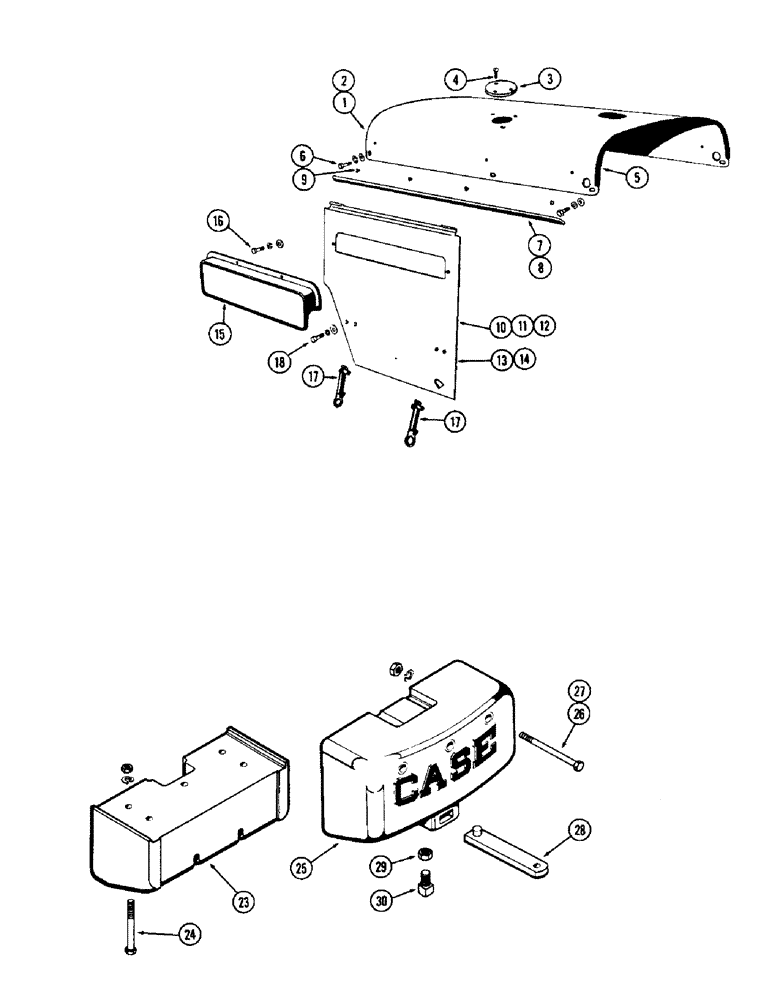

Запчасти Case W10 (146) - ENGINE HOOD AND PANELS (09) - CHASSIS

1

A14419

HOOD - engine (See A14801 w/cab)

1шт.

1

A14801

HOOD - engine (w/cab) Order A14419

1шт.

3

A16579

COVER - air cleaner opening (Use with oil bath cleaner)

1шт.

4

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- mach., 1/4 x 5/8" rd. hd.

3шт.

5

A12604

MOLDING - hood edge

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

A14420

MOLDING - R.H. side (Prior to "62" production)

1шт.

8

A14421

MOLDING - L.H. side (Prior to "62" production)

1шт.

9

A26838

CLIP -, Serial Range: molding-hood

8шт.

10

A15578

SIDE - R.H., hood (w/o name plate)

1шт.

11

A15579

SIDE - L.H., hood (w/o name plate)

1шт.

13

A14424

SIDE - R.H., hood (w/name plate) Order A15578

1шт.

14

A14425

SIDE - L.H., hood (w/name plate)

1шт.

15

A12474

PLATE - name "TERRALOADER"

2шт.

16

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

- 5/16 x 1" N.F. hex.

8шт.

17

A12514

LATCH

- hood side

4шт.

18

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach., #12-32 x 5/8" rd. hd.

8шт.

23

A12253

COUNTERWEIGHT - lower, drawbar

1шт.

24

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- 3/4 x 8-1/2" N.C. hex., counter weights and drawbar

5шт.

25

A12252

COUNTERWEIGHT - upper, drawbar

1шт.

26

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

Counterweights and drawbar Hex, 3/4"-10 x 4", G5

2шт.

27

13-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

Counter weights and drawbar Hex, 3/4"-10 x 7", G5

3шт.

28

A12249

DRAWBAR, counter weights

1шт.

29

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" N.C. hex., counter weights and drawbar

1шт.

30

85-1032

SCREW - set, 5/8 x 2" N.C. sq. hd. cup pt., counter weights and drawbar

1шт.
