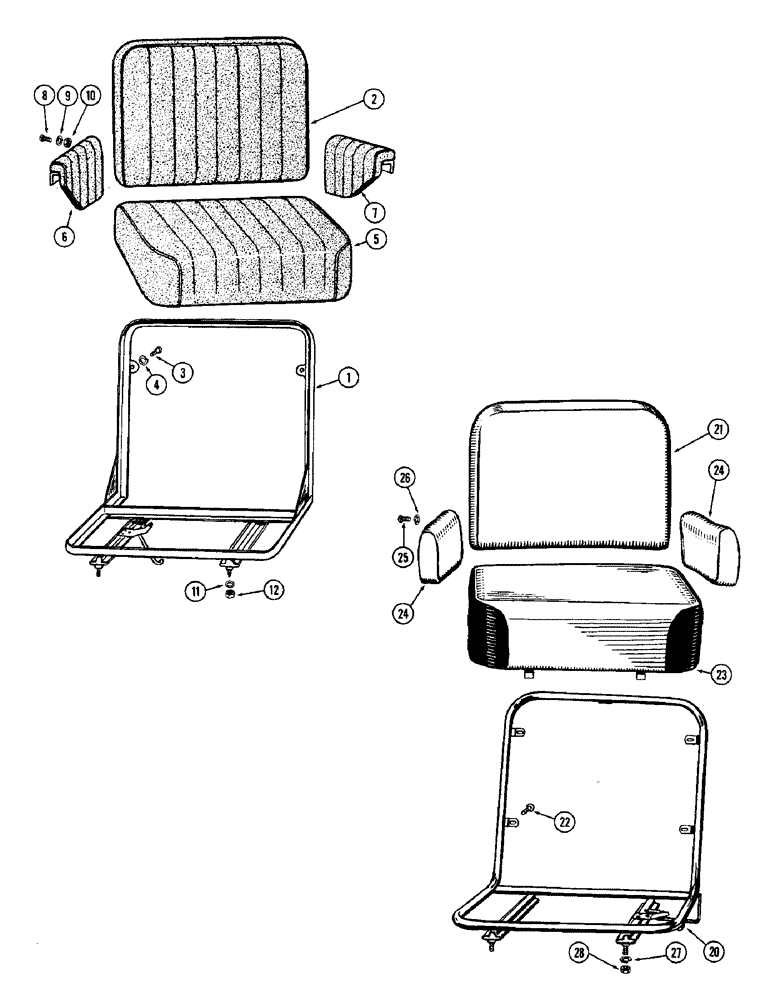

Запчасти Case W10 (144) - SEAT, 1ST USED LOADER SN 8162900 (09) - CHASSIS

A16763

SEAT ASSY. - operators, complete, Includes: Ref. 1 - 7

1шт.

A15525

SEAT ASSY., Includes: Ref. 1 - 5

1шт.

1

A15822

FRAME ASSY. - seat

1шт.

2

A15824

BACK REST - seat

1шт.

3

175-415

SCREW,Phil Truss Hd, 5/16" - 18 x 1"

- mach., 5/16 x 1" N.C. Phillips

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

A15823

CUSHION - seat

1шт.

6

A15526

ARM

REST - R.H.

1шт.

7

A15527

ARM REST - L.H.

1шт.

8

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

25-104

NUT,1/4"-20, G5

4шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

131-507

NUT

- lock, 5/16" N.C. hex.

4шт.

A12229

SEAT ASSY. - operators, used prior to loader, Includes: Ref. 20 - 23, Start Serial: 8162900

1шт.

20

A13094

FRAME ASSY. - seat, used prior to loader, Start Serial: 8162900

1шт.

21

A13095

CUSHION

BACK REST - seat, used prior to loader, Start Serial: 8162900

1шт.

22

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- mach., 1/4 x 3/4" N.C. rd. hd., used prior to loader, Start Serial: 8162900

4шт.

23

A13096

CUSHION - seat, used prior to loader, Start Serial: 8162900

1шт.

24

A12233

ARM REST - R.H. & L.H., used prior to loader, Start Serial: 8162900

2шт.

25

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.C. hex., used prior to loader, Start Serial: 8162900

4шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used prior to loader 1/4", Start Serial: 8162900

4шт.

27

92-5

LOCK WASHER,5/16"

used prior to loader 5/16", Start Serial: 8162900

4шт.

28

25-115

NUT,5/16"-24, G5

- 5/16" NF hex, used prior to loader, Start Serial: 8162900

4шт.
