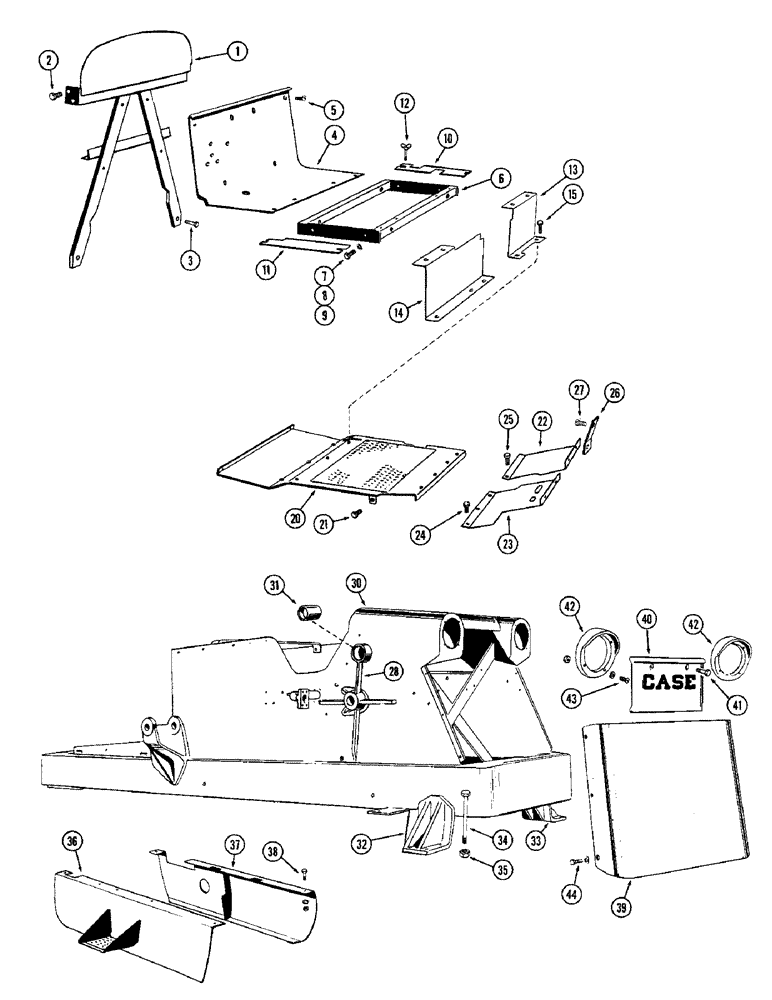

Запчасти Case W10 (142) - OPERATORS COMPARTMENT (09) - CHASSIS

1

A14452

BRACE - fuel tank & panel

1шт.

2

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.F. hex.

2шт.

4

A12359

PANEL - rear, compartment

1шт.

5

187-1009

BOLT

SCREW - 1/4 x 3/8" self-tapping

4шт.

6

A12232

SUPPORT - operators seat

1шт.

7

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/8" N.F. hex.

1шт.

8

14-814

BOLT - 1/2 x 7/8" N.F. hex.

2шт.

9

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex.

1шт.

10

A16592

SHIELD - top L.H., battery

1шт.

11

A12360

SHIELD - top R.H., battery

1шт.

12

183-110

SCREW - thumb, 1/4 x 1/2" N.C.

4шт.

13

A15954

SHIELD - L.H. front, battery

1шт.

14

A15955

SHEILD - front R.H., battery

1шт.

15

187-1009

BOLT

SCREW - 1/4 x 3/8" self-tapping

4шт.

20

A12350

PLATFORM - compartment

1шт.

21

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

22

A12353

PLATE - front L.H., platform

1шт.

23

A16904

PLATE - front R.H., platform

1шт.

24

187-1009

BOLT

SCREW - mach., 1/4 x 3/8" self-tapping

5шт.

25

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16 x 1" N.F. hex.

1шт.

26

A12355

SUPPORT - L.H. front plate

1шт.

27

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

28

A16457

LEVEL LINK KIT

1шт.

30

A17867

CHASSIS ASSY., panels, Includes: Ref. 31 - 33

1шт.

31

A16761

BUSHING

- lift arm pivot, chassis assembly and panels

2шт.

32

A14362

BRACKET - R.H., front axle, chassis assembly and panels

1шт.

33

A14363

BRACKET - L.H., front axle, chassis assembly and panels

1шт.

34

116-703

BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8

Hex, 3/4"-16 x 9 1/2", G8, Axle, Chassis assembly and panels

8шт.

35

131-186

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4" N.F. hex., chassis assembly and panels

8шт.

36

A12246

PANEL ASSY. - R.H. lower, chassis assembly and panels

1шт.

37

A14449

PANEL ASSY. - L.H. lower, chassis assembly and panels

1шт.

38

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/4 x 1-1/4" N.F. hex., chassis assembly and panels

8шт.

39

A12250

PANEL - front cover, chassis assembly and panels

1шт.

40

A12251

PLATE - name, front cover, chassis assembly and panels

1шт.

41

193-508

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- 5/16 x 1" N.C. Sems, chassis assembly and panels

2шт.

42

R16791

RING - head lamp mounting, chassis assembly and panels

2шт.

43

75-424

SCREW

- mach., 1/4 x 1-1/2" N.C. oval hd., chassis assembly and panels

8шт.

44

114-206

BOLT - 3/8 x 3/4" N.F. hex. hd., chassis assembly and panels

6шт.
