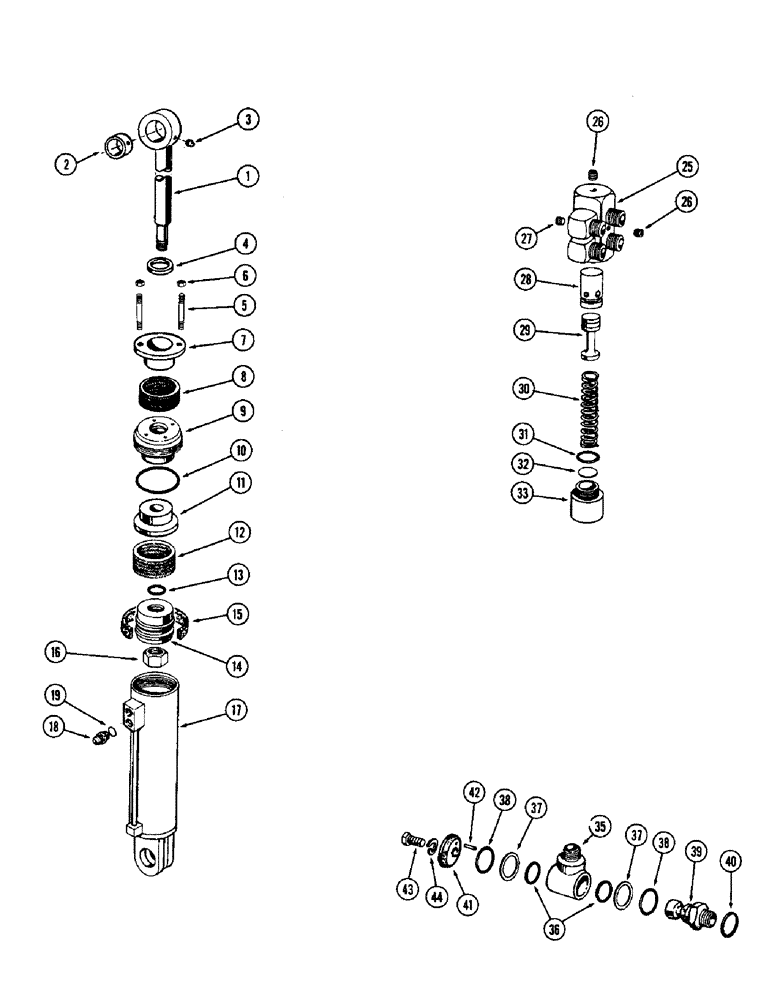

Запчасти Case W10 (200) - CLAM CYLINDER (08) - HYDRAULICS

A17668

CYLINDER

ASSY. - clam, R.H., Includes: Ref. 1 - 19

1шт.

A17669

CYLINDER

ASSY. - clam, L.H., Includes: Ref. 1 - 19

1шт.

1

A17671

ROD

- piston, Includes: Ref. 2

1шт.

2

A17670

BUSHING

- pivot

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

4

A17672

SEAL

SEAL - wiper, piston rod

1шт.

5

A17673

STUD

- flange

2шт.

6

131-181

LOCK NUT,3/8"-24, GC

NUT - lock, 3/8" N.F. hex.

2шт.

7

A17674

GLAND

FLANGE - packing

1шт.

8

A17675

PACKING

CUP ASSY. - packing, cyl. head

1шт.

9

A17676

CYLINDER HEAD

HEAD - cylinder

1шт.

10

A17677

O-RING

GASKET - "O" ring, cyl. head

1шт.

11

A17678

PISTON

- cylinder

1шт.

12

A17679

KIT

CUP ASSY. - packing, piston

1шт.

13

A17680

O-RING

"O" RING - piston rod

1шт.

14

A17681

PISTON

- follower

1шт.

15

A17686

RING

- wear, piston

1шт.

16

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, , Piston rod 1 1/4"-12, GB

1шт.

17

A17682

CYLINDER

ASSY. - R.H., piston

1шт.

17

A17683

CYLINDER

ASSY. - L.H., piston

1шт.

18

A17684

ROD, CONNECTING

SPUD - hose connector, Includes: Ref. 19

2шт.

A17701

VALVE

ASSY. - relief, Includes: Ref. 25 - 33

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - (Order A17701), relief valve

1шт.

26

221-1849

PLUG

- pipe, 1/8" P.T. socket hd., relief valve

2шт.

27

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" N.C. cup pt. Allen hd., relief valve

1шт.

28

A17703

SEAT

- plunger, relief valve

1шт.

29

A17704

PLUNGER

- valve, relief

1шт.

30

A17705

SPRING

- plunger, relief valve

1шт.

31

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - cap to body (Replaces A18683), relief valve

1шт.

32

A17707

PLUG

- adjustment, relief valve

1шт.

33

A17708

CAP - plunger, relief valve

1шт.

A17688

LINK

CONNECTOR ASSY. - swivel, Includes: Ref. 35 - 44

2шт.

35

NSS

NOT SOLD SEPARAT

BODY - (Order A17688), swivel connector

1шт.

36

A17692

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING - body, swivel connector

2шт.

37

A17691

RING

- back-up, swivel connector

2шт.

38

A17690

O-RING

"O" RING - swivel stem & dirt guard, connector

2шт.

39

A17693

STEM - swivel, connector

1шт.

40

A17694

O-RING

"O" RING - stem to tube, swivel connector

1шт.

41

A17689

GUARD - dirt, swivel connector

1шт.

42

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, , Swivel connector 1/8" x 5/16", Slotted

1шт.

43

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Swivel connector Hex, 1/4"-28 x 1/2", G5, Full Thd

1шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Swivel connector 1/4"

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, spud to tube (1/2" tube)

1шт.
