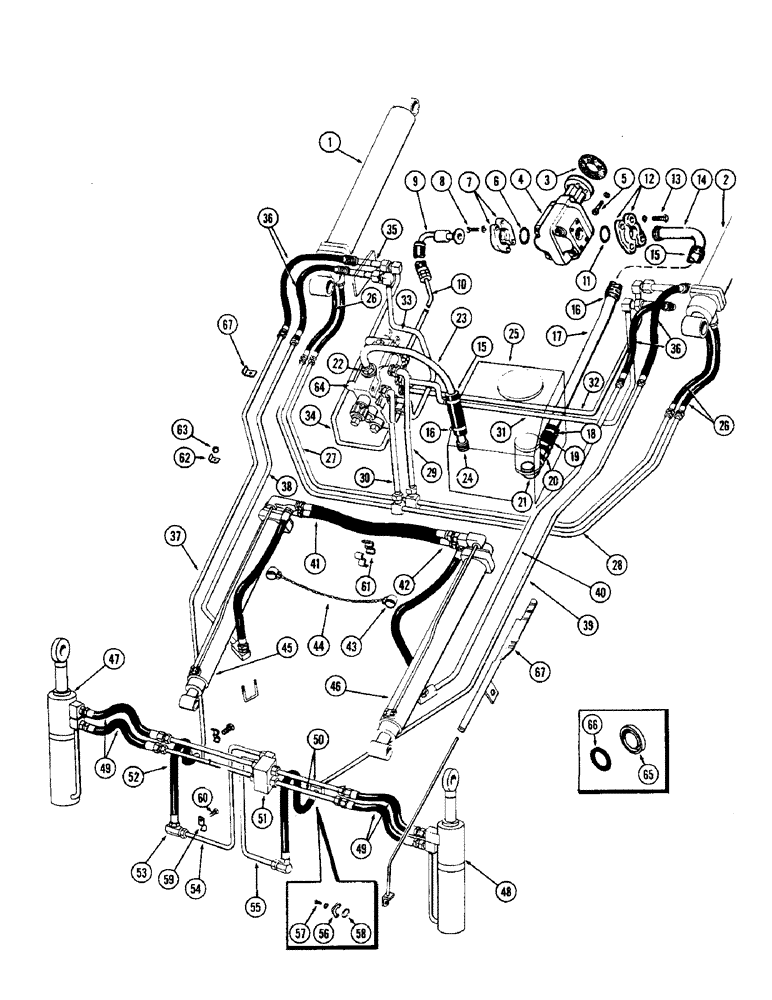

Запчасти Case W10 (196) - THREE SPOOL VALVE HYDRAULIC SYSTEM (08) - HYDRAULICS

36

A14473

HOSE - junction to cylinder tube

4шт.

37

A16954

TUBE - R.H. clam cyl. hose

1шт.

38

A12336

TUBE

- R.H. tilt cyl. hose

1шт.

39

A16955

TUBE - L.H. clam cyl. hose

1шт.

40

A12337

TUBE - L.H. tilt cyl. hose

1шт.

41

A12339

HOSE ASSY.

HOSE - cross over, tilt cylinder

2шт.

42

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - cross over hose (3/4" tube x 1-1/16" N.F. thrd.)

2шт.

43

A13241

CLAMP - tilt cylinder hose

2шт.

44

A13242

O-RING

CHAIN - tie, tilt cylinder hose

1шт.

45

A17862

CYLINDER - R.H. tilt (Repairs Figure 182)

1шт.

46

A17863

CYLINDER - L.H. tilt (Repairs Figure 182)

1шт.

47

A17668

CYLINDER

- clam, R.H. (Repairs Figure 200)

1шт.

48

A17669

CYLINDER

- clam, L.H. (Repairs Figure 200)

1шт.

49

A17687

HOSE ASSY.

HOSE - clam cylinder, Includes: Ref. 50

4шт.

50

A17697

TUBE

- relif valve

4шт.

51

A17701

VALVE

- relief, clam cyl. (Repairs Figure 200)

1шт.

52

A16960

HOSE - tube to relief valve

2шт.

53

A17688

LINK

SWIVEL ASSY. - hose connector (Repairs Figure 200)

2шт.

54

A17700

TUBE - R.H., relief, Serial Range: valve-connector

1шт.

55

A17699

TUBE ASSY.

TUBE - L.H., relief, Serial Range: valve-connector

1шт.

56

A16961

FLANGE

CLAMP - split flange, clam cyl., Serial Range: hose-tube

8шт.

57

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

58

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - hose to tube

4шт.

59

A17698

CLAMP -, Serial Range: tube-bucket

2шт.

60

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 3/8 x 3/4" N.C. hex.

2шт.

61

A12332

CLAMP

- cross over hose

2шт.

62

A16959

BRACKET

CLAMP - lift cyl. tube

2шт.

63

A16957

SPACER - clamp

2шт.

64

A16940

VALVE - control (Repairs Figure 190) Order A19984

1шт.

64

A19984

VALVE - control (Repairs Figure 192)

1шт.

65

A18342

PLUG

- tube (w/o 4 in 1 bucket)

2шт.

66

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - plug

2шт.

67

A16962

GAUGE - bucket level

1шт.
