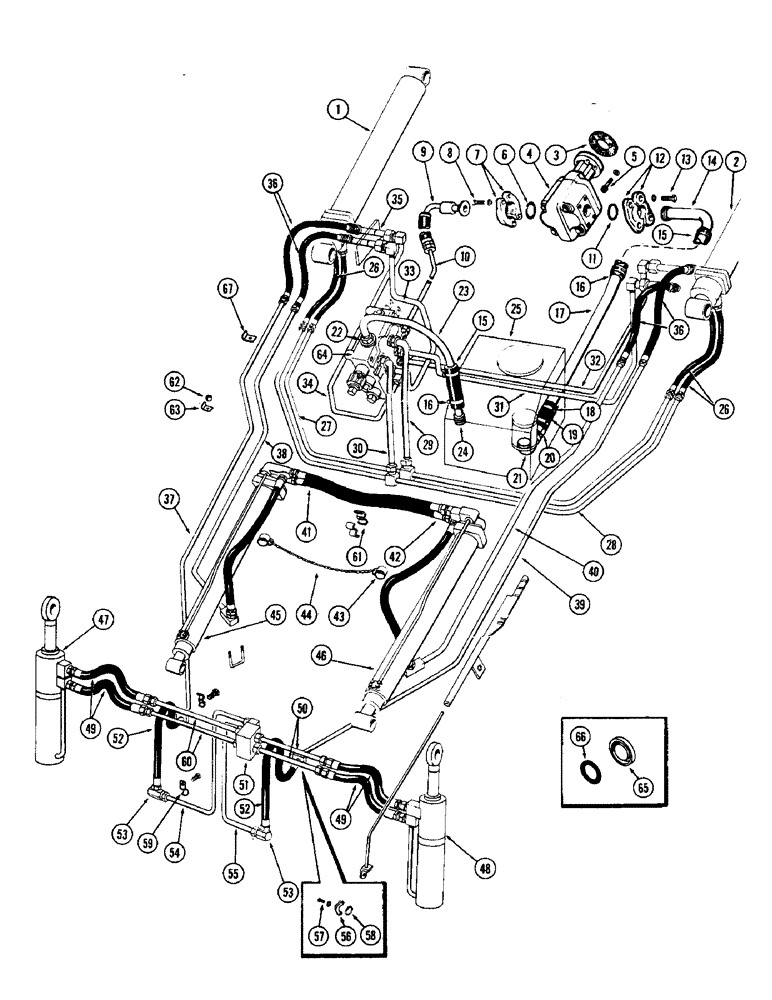

Запчасти Case W10 (194) - THREE SPOOL VALVE HYDRAULIC SYSTEM (08) - HYDRAULICS

1

A17860

CYLINDER - lift, R.H. (Repairs Figure 180)

1шт.

2

A17861

CYLINDER - lift, L.H. (Repairs Figure 180)

1шт.

3

A12304

GASKET,0.4mm Thk

- hydraulic pump

1шт.

4

A16690

PUMP, HYDRAULIC

PUMP - hydraulic (Repairs Figure 176)

1шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

4шт.

6

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - pressure hose

1шт.

7

A12301

CLAMP,Half

CLAMP - split flange, pressure hose

2шт.

8

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

9

A16710

HOSE - pressure, Serial Range: pump-valve

1шт.

10

A14469

TUBE - pressure, Serial Range: pump-valve

1шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - suction elbow to pump

1шт.

12

A14157

FLANGE

CLAMP - split flange, suction elbow

2шт.

13

113-309

BOLT - 7/16 x 1-3/8" N.C. hex.

4шт.

14

A16711

ELBOW - pump suction

1шт.

15

A16712

HOSE,1.75" ID x 5.50", SAE 20R1

- Suction tube & return tube 1.75" ID x 5.50", SAE 20R1

2шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

17

A14775

TUBE - suction, Serial Range: tank-pump

1шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

19

A14777

HOSE - suction tube

1шт.

20

A14780

NIPPLE - outlet, tank hose

1шт.

21

221-1396

ELBOW - outlet, 1-1/2" P.T. 90 degrees 90º, 1 1/2" NPT

1шт.

22

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - return tube to valve

1шт.

23

A12314

TUBE - oil return, Serial Range: valve-tank

1шт.

24

A12294

NIPPLE, LUBE

NIPPLE - return, Serial Range: hosse-tank

1шт.

25

A16586

TANK - oil reservoir (See Figure 158)

1шт.

26

A12333

HOSE

- lift cylinder

4шт.

27

A12327

TUBE

- manifold, lift cyl. inner

1шт.

28

A12331

TUBE

- manifold, lift cyl. outer

1шт.

29

A12323

TUBE - valve to inner manifold

1шт.

30

A12328

TUBE - valve, inner manifold

1шт.

31

A16915

TUBE - valve to L.H. tilt cyl.

1шт.

32

A16955

TUBE - valve to L.H. clam cyl.

1шт.

33

A16914

TUBE - valve to R.H. tilt cylinder

1шт.

34

A16948

TUBE - valve to R.H. clam cyl.

1шт.

35

A16950

PIPE ASSY. - junction, chassis side

2шт.
