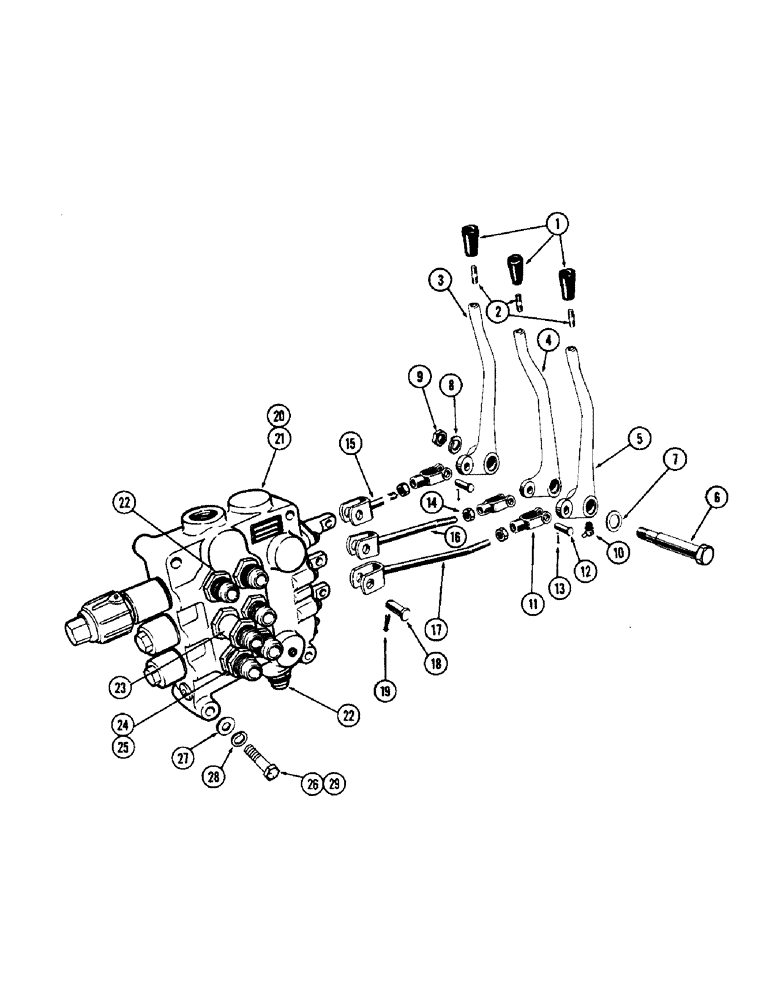

Запчасти Case W10 (188) - THREE SPOOL HYDRAULIC VALVE CONTROLS (08) - HYDRAULICS

1

A14051

GRIP

BALL - hand lever

3шт.

2

A16775

STUD

- ball to hand lever

3шт.

3

A18399

LEVER - lift control

1шт.

4

A12341

LEVER - bucket tilt control

1шт.

5

A16943

LEVER - bucket clam control

1шт.

6

A16944

PIN - pivot, control lever

1шт.

7

A26462

WASHER

- lever pin

3шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

25-1110

NUT,5/8"-18, G5

- 5/8" N.F., hex.

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Lincoln 90º, 1/8" NPT x .84" lg

3шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - end, adjustable

3шт.

12

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke end, 1/2" dia.

3шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

3шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

3шт.

15

A16916

ROD - lift control levr

1шт.

16

A16942

ROD - bucket tilt control lever

1шт.

17

A16941

ROD - clam opening control lever

1шт.

18

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

3шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

20

A19984

VALVE ASSY. - control (Repairs, Figure 192)

1шт.

21

A16940

VALVE ASSY. - control, (Use A19984) (Repairs Figure 190)

1шт.

22

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - tube to valve (1" tube x 1-5/16" N.F.)

5шт.

23

A16921

FITTING - hyd. tube to valve, long

1шт.

24

A17646

CONNECTOR, ELEC

FITTING - hyd., tube to valve, short

1шт.

25

A15925

ELBOW UNION

ELBOW - hyd. tube to valve fitting

1шт.

26

15-872

X

BOLT - 1/2 x 4-1/2" N.C., hex.

4шт.

27

195-33

WASHER,1/2"

- plain, SAE 1/2"

4шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

25-108

NUT,1/2"-13, G5

- 1/2" N.C., hex.

4шт.
