(004) - CYLINDER HEAD COVER AND ROCKER ARMS

Запчасти Case W10 (004) - CYLINDER HEAD COVER AND ROCKER ARMS (02) - ENGINE

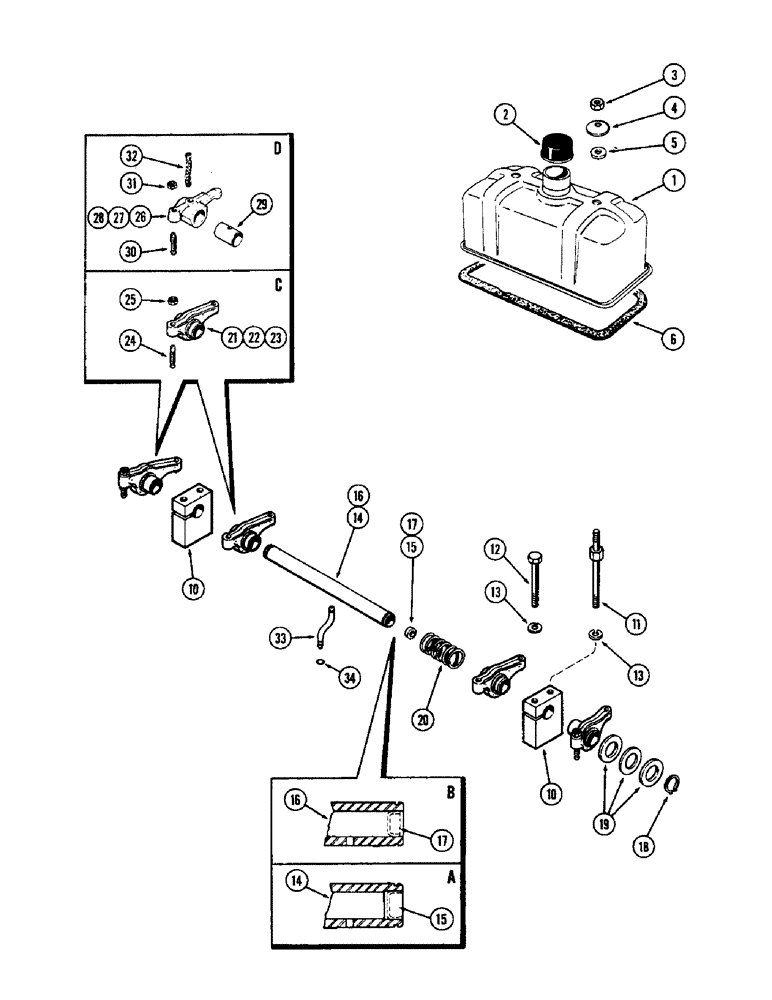

Схема запчастей Case W10 - (004) - CYLINDER HEAD COVER AND ROCKER ARMS (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A20345

COVER - cylinder head

3шт.

2

A27973

CAP

BREATHER - cylinder head cover

3шт.

3

25-117

NUT,7/16"-20, G5

- cover stud, 7/16" N.F. hex

6шт.

4

A23683

WASHER

- cover stud

6шт.

5

A23684

GASKET

GASKET - cover stud nut

6шт.

6

A57595

CYLINDER HEAD GASKET

- cover to head (Replaces A27972)

3шт.

10

A27881

BRACKET

- rocker shaft

6шт.

11

A27882

STUD - bracket & cover

6шт.

12

13-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

6шт.

13

92-7

LOCK WASHER,7/16"

12шт.

14

A57532

SHAFT

- rocker arm (Solid), Includes: Ref. 15

3шт.

14

A21100

SHAFT

- rocker arm (Reamed) See inset A (1st used eng. SN 2107858) Order A57532, Includes: Ref. 15

3шт.

15

A26667

PLUG - shaft (9/16 dia. x 1/4")

2шт.

16

A22320

SHAFT - rocker arm (Not reamed) (Order A57532), Includes: Ref. 17

3шт.

17

A22318

PLUG - shaft (17/32 dia. x 1/4")

2шт.

18

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

19

A27878

WASHER

- spacer (29/32 x 1-5/16 x 9/32")

18шт.

20

A27877

SPRING

- rocket shaft

3шт.

21

A22322

ROCKER

ARM ASSY. - rocker, intake valve (Stamped type.See inset C) (Incl. ref. 24 & 25)

6шт.

22

A22324

ROCKER

ARM ASSY. - rocker, exhaust valve #1, 3 & 5 (Stamped type. See inset C) (Incl. ref. 24 & 25)

3шт.

23

A22326

ROCKER

ARM ASSY. - rocker, exhaust valve #2, 4 & 6 (Stamped type. See inset C) (Incl. ref. 24 & 25)

3шт.

24

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

1шт.

26

A28659

X

ARM ASSY. - rocker, intake valve (Forged type. See inset D) (Includes ref. 29)

6шт.

27

A28660

ARM

ASSY. - rocker, exhaust valve #1, 3 & 5 (Forged type. See inset D) (Includes ref. 29)

3шт.

28

A28661

X

ARM ASSY. - rocker, exhaust valve #2, 4 & 6 (Forged type. See inset D) (Includes ref. 29)

3шт.

29

A27876

BUSHING

- rocker arm

1шт.

30

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting (Separate w/forged arm)

12шт.

31

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam , 5/16" N.F. (Separate w/forged arm)

12шт.

32

A27938

WICK

- oil, exhaust valve arm

6шт.

33

A27879

TUBE

- oil, rocker arm shaft

3шт.

34

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube

3шт.
