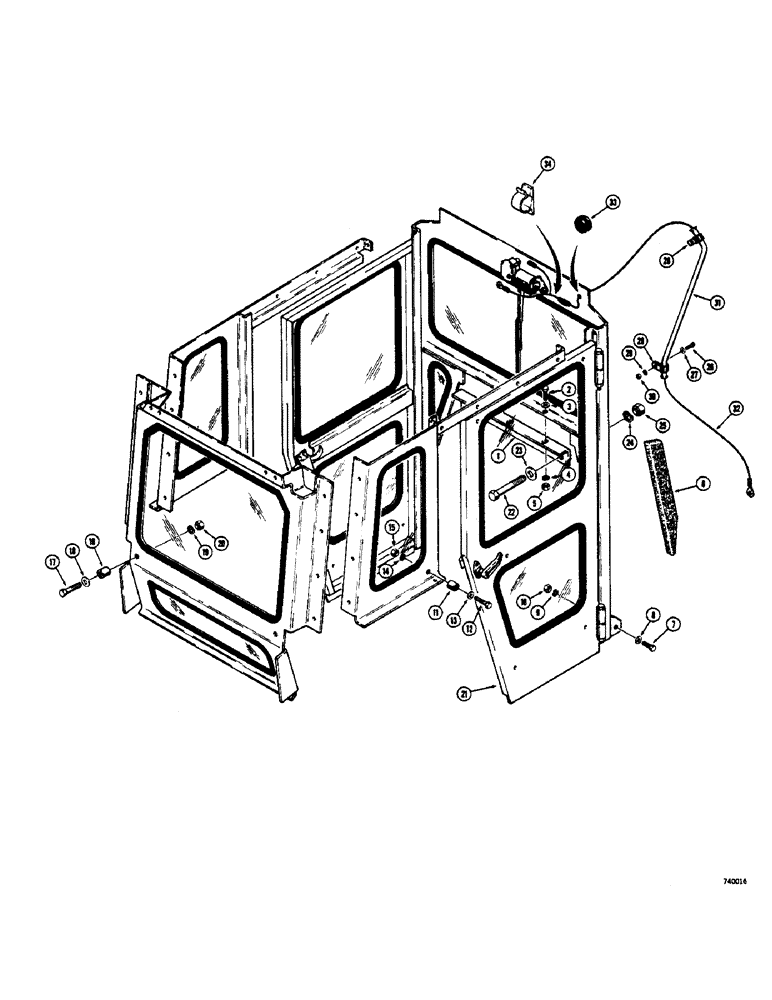

Запчасти Case 825 (232) - CAB MOUNTING AND WIRING (05) - UPPERSTRUCTURE CHASSIS

MACHITEM

CAB ASSEMBLY - operators, see Figure 2 for ordering, Includes: Ref. 1 - 21

1шт.

1

L35723

BRACKET - front mounting

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

3

195-104

WASHER,3/8"

- flat, zinc plated 3/8"

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

6

L35722

STRIP - urethane, lower cowl, between cab and tractor

2шт.

7

13-208

CLUTCH

BOLT - hex., 3/8" - 16 N.C. x 1-1/4", zinc plated

6шт.

8

195-104

WASHER,3/8"

- flat, , zinc plated 3/8"

6шт.

9

192-21

LOCK WASHER,3/8"

WASHER - flat, , zinc plated 3/8"

6шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

11

A31246

SPACER

- cab mounting, center

2шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

195-104

WASHER,3/8"

- flat, , zinc plated 3/8"

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

L35783

SPACER - rear mounting

2шт.

17

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

- hex., 1/2" - 13 N.C. x 2-1/2", zinc plated

2шт.

18

195-106

WASHER,1/2"

- flat, , zinc plated 1/2"

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - hex., 16-1/2", zinc plated

2шт.

21

REF

INSTRUCTION

DOORS, WINDOWS AND RELATED PARTS - parts list Figure 234

1шт.

22

16-2096

BOLT - hex., 1-1/4" - 8 N.C. x 6", cab to front mounting bracket

2шт.

23

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- plain, 1-1/4"

4шт.

24

92-20

WASHER,1 1/4"

LOCK, 1 1/4"

2шт.

25

131-479

LOCK NUT,1 1/4"-7

NUT - hex., lock, 1-1/4" - 8 N.C.

2шт.

26

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Protection tube clamp mounting Hex, 1/4"-20 x 1", G5

2шт.

27

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

28

49833

CLAMP

- protection tube mounting

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

25-104

NUT,1/4"-20, G5

2шт.

31

L52850

TUBE - protection, heater and wiper harness

1шт.

32

L54620

HARNESS - heater and wiper

1шт.

33

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- wiring through cab

1шт.

34

L54606

CLIP

- wiper lead wire

2шт.
