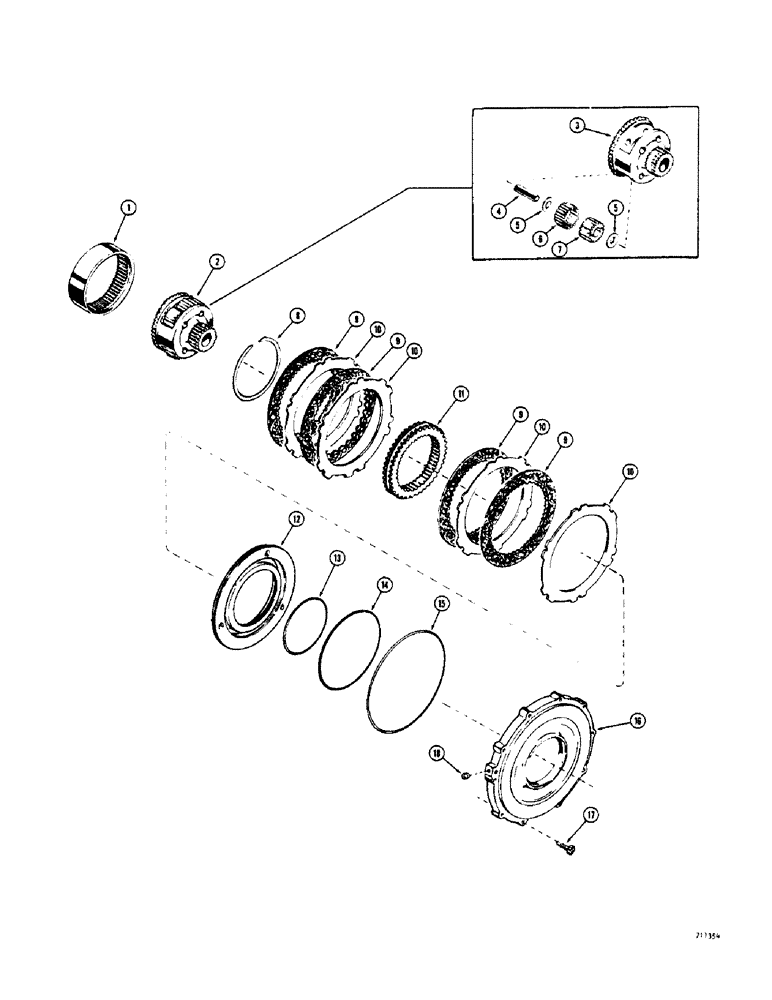

Запчасти Case 825 (114) - TRANSMISSION, FORWARD CLUTCH AND PLANETARY (03) - TRANSMISSION

L49048

TRANSMISSION ASSEMBLY - soft shift, complete, used on 600 Skid King only, Includes: Ref. 1 - 18

1шт.

L49047

TRANSMISSION ASSEMBLY - soft shift, complete, used on 800 and 825 Skid Kings only, Includes: Ref. 1 - 18

1шт.

1

A12712

GEAR

- reverse ring

1шт.

2

L32405

CARRIER

ASSEMBLY - forward clutch planetary, when stock is exhausted, order L35533 carrier assembly, for service, Includes: Ref. 3 - 7

1шт.

2

L35533

CARRIER

ASSEMBLY - forward clutch planetary, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - forward clutch planetary

1шт.

4

A12705

SPINDLE

- pinion

4шт.

5

A12700

WASHER

- thrust

8шт.

6

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

7

L35993

GEAR

PINION SET - planetary, matched set of 4

1шт.

8

A12687

RING

SNAP RING - retaining

1шт.

9

L33970

PLATE

- clutch, internal spline

4шт.

10

L33958

PLATE

- clutch, external spline

4шт.

11

L33976

GEAR

- ring, forward clutch, when stock is exhausted, order L35535 gear for service

1шт.

11

L35535

GEAR

- ring, forward clutch

1шт.

12

L33975

PISTON

- forward clutch

1шт.

13

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- ring type, small

1шт.

14

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

- ring type, medium

1шт.

15

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

- ring type, medium

1шт.

16

L33977

HOUSING

- forward clutch piston

1шт.

17

121-225

BOLT,Hex, Lock, 3/8"-16 x 1 3/4"

- hex., 3/8" - 16 N.C. x 1-3/4"

10шт.

18

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square socket head, 1/4" N.P.T.

1шт.
