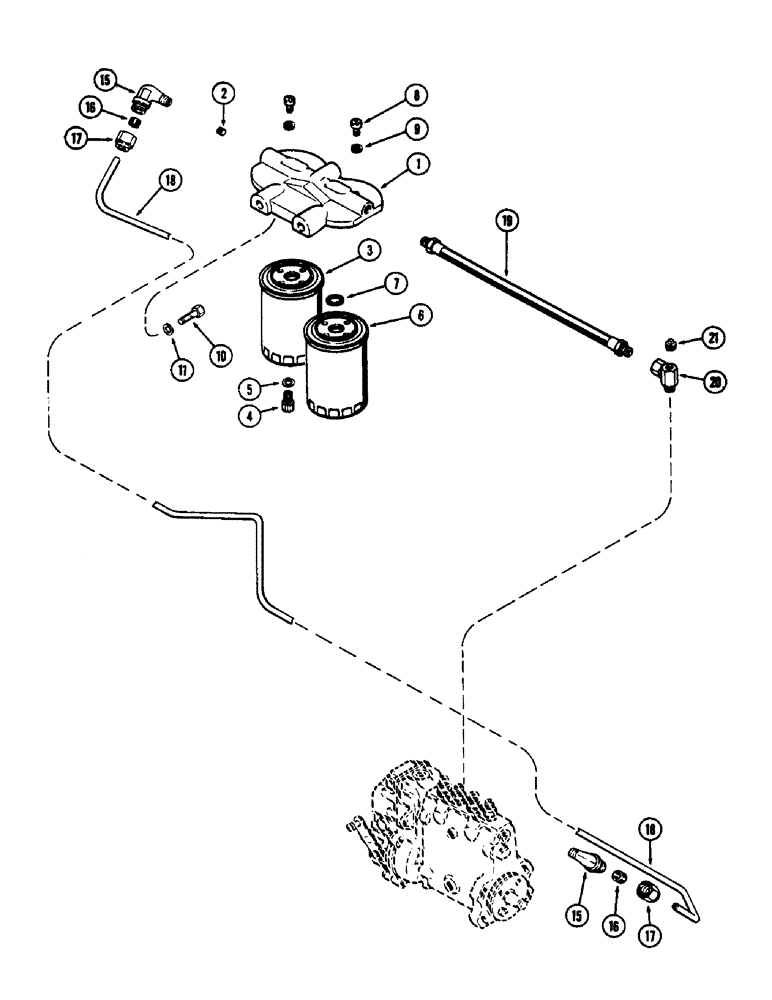

Запчасти Case 825 (052) - FUEL FILTER SYSTEM, (336BD) AND (336BDT) DIESEL ENGINES (02) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - fuel filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" P.T., sckt. hex. hd.

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - filter replacement, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage, Includes: Ref. 4 and 5

1шт.

4

G49080

PLUG

- filter drain (3/8" - 24, 12 pt. hd. plastic)

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage, Includes: Ref. 7

1шт.

7

A42315

GASKET

-, Serial Range: filter-head

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter (#10-32 x 5/16" rd. hd.)

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw (Replaces A66619 & A20662) (3/16 x 3/8 x 1/16" aluminum)

2шт.

10

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

- filter mounting (3/8 x 1-1/4" N.C. hex.)

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - filter tube, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - (For 5/16" tube)

1шт.

18

A62341

TUBE

- pump to 1st stage filter

1шт.

19

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- 2nd stage, Serial Range: filter-pump

1шт.

20

A20539

FITTING

UNION - hose

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union (1/8" P.T., sq. hd.)

1шт.
