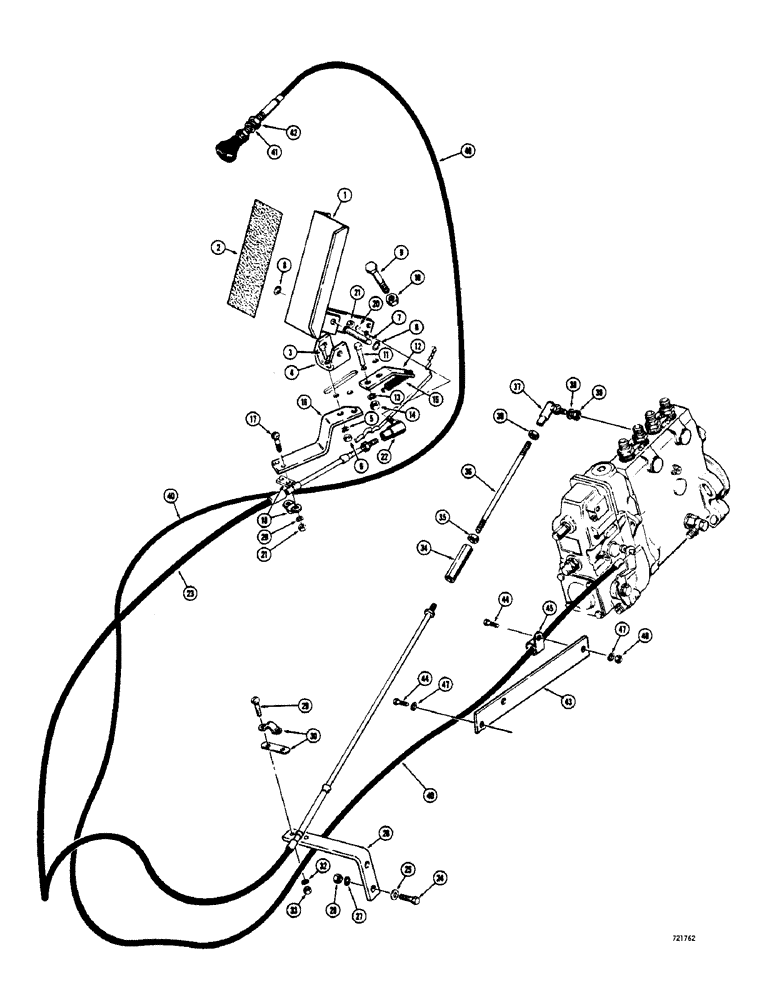

Запчасти Case 825 (090) - ENGINE CONTROLS, THROTTLE CONTROL LINKAGE (01) - ENGINE

1

L48004

PEDAL

- accelerator control

1шт.

2

L48674

PAD

- accelerator pedal

1шт.

3

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

4

L48002

BRACKET

- accelerator pivot

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

25-104

NUT,1/4"-20, G5

2шт.

7

L48003

PIN

- accelerator pivot

1шт.

8

A27795

RING

- snap, retaining

2шт.

9

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex., 3/8" - 16 N.C. x 3-3/4", accelerator stop

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., lock, 3/8" - 16 N.C.

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

12

L48024

BRACKET

- accelerator return spring

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

L48104

SPRING

- accelerator return

1шт.

16

L52641

BRACKET - support, throttle cable, rear

1шт.

17

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- fillister head, slotted, no. 10 - 32 N.F. x 3/4"

2шт.

18

L12441

CLAMP

- accelerator cable, includes shim

1шт.

19

RESERVED

1шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

129-37

NUT,#10-32

2шт.

22

L12437

BALL JOINT,#10 - 32 x 7/8"

- accelerator cable

1шт.

23

L50792

CABLE

- accelerator control, parts list Figure 242

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

95-8

WASHER,1/2"

plain 1/2"

2шт.

26

L52640

BRACKET - support, throttle cable, front

1шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

2шт.

29

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- fillister head, slotted, no. 10 - 32 N.F. x 3/4"

2шт.

30

L12441

CLAMP

- accelerator cable, includes shim

1шт.

31

RESERVED

1шт.

32

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

33

129-37

NUT,#10-32

2шт.

34

L14227

CONNECTOR, ELEC

TURNBUCKLE - adjusting, throttle rod

1шт.

35

129-315

NUT,#10-32, LH

1шт.

36

L79499

ROD

- throttle, front

1шт.

37

L12437

BALL JOINT,#10 - 32 x 7/8"

- throttle control

1шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

39

129-37

NUT,#10-32

2шт.

40

L52064

CONTROL

CABLE - fuel shutoff, engine

1шт.

41

95-6

WASHER,3/8"

- plain, , fuel shutoff 3/8"

1шт.

42

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock, 3/8" - 16 N.C., fuel shutoff

1шт.

43

L50803

BRACKET

- clamp support, fuel shutoff

1шт.

44

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Fuel shutoff Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

45

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- cable, fuel shutoff

1шт.

46

RESERVED, fuel shutoff

1шт.

47

92-6

LOCK WASHER,3/8"

fuel shutoff 3/8"

2шт.

48

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 N.C., fuel shutoff

1шт.
