Запчасти Case 825 (048) - INJECTION PUMP DRIVE, (336BD) AND (336BDT) DIESEL ENGINES (01) - ENGINE

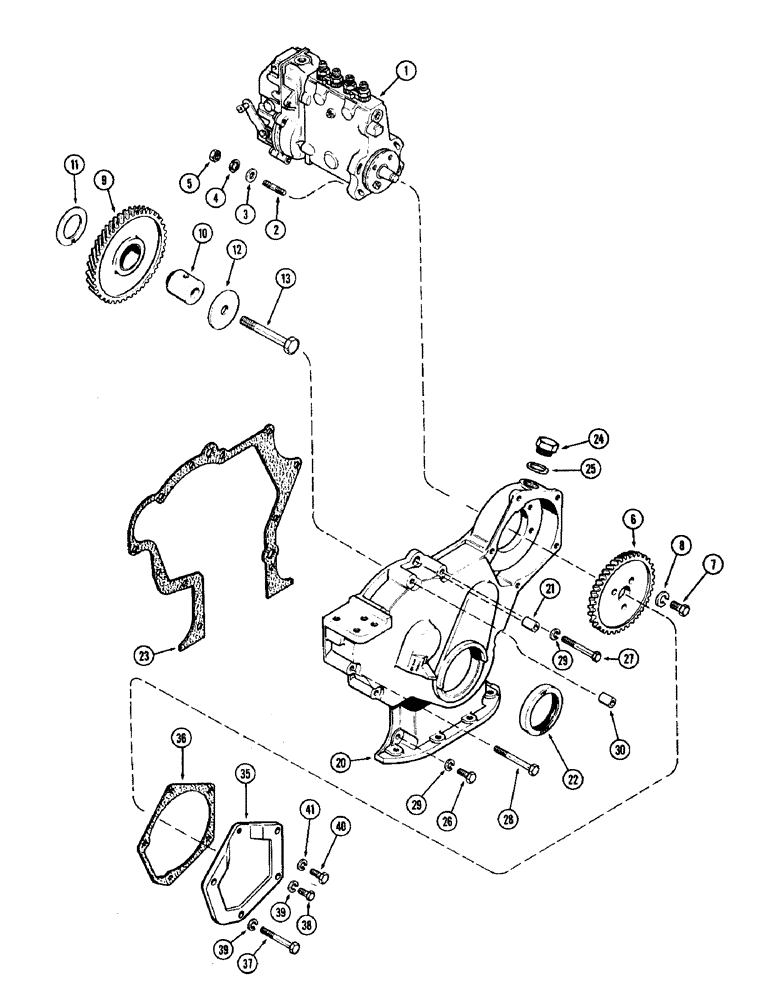

Схема запчастей Case 825 - (048) - INJECTION PUMP DRIVE, (336BD) AND (336BDT) DIESEL ENGINES (01) - ENGINE

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY, fuel injection (See Figures 48-54)

1шт.

2

A58689

STUD

Pump mtg. (3/8" N.C. x 1-7/8")

3шт.

2

A142092

STUD

Pump mtg. (3/8" N.C. x 1-7/8") (Drilled for anti-tamper wire)

1шт.

3

A57470

WASHER

3/8 x 11/16 x 16 ga.

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

(Used w/A58689 stud)

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

(Used w/A142092 stud)

1шт.

6

A58693

GEAR

Injection pump drive

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A62542

GEAR

ASSY, idler, w/bushing

1шт.

10

A58690

SHAFT

Idler gear

1шт.

11

A58691

WASHER

Thrust, idler shaft

1шт.

12

A58692

PLATE

Thrust, idler shaft

1шт.

13

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

20

A58609

COVER

ASSY, timing gear, Includes: Ref. 21

1шт.

21

A58611

PIN

Dowel, cover locating, timing gear cover

2шт.

22

A62049

OIL SEAL

Oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2"), timing gear cover

1шт.

23

A58612

GASKET

Cover, timing gear cover

1шт.

24

A21140

PLUG

Timing window, timing gear cover

1шт.

25

A58613

SEALING WASHER

Plug, timing gear cover

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover

4шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Timing gear cover

2шт.

28

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

3шт.

29

92-6

LOCK WASHER,3/8"

Timing gear cover

9шт.

30

A19774

BUSHING

SPACER - alternator pry point, timing gear cover

1шт.

35

A61053

COVER

Fuel pump, timing gear cover

1шт.

36

A58615

GASKET

Cover, timing gear cover

1шт.

37

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

2шт.

38

A150118

BOLT

3/8 x 1-1/4" N.C. drilled hex. hd. (Rpl. A148253), timing gear cover

2шт.

39

92-6

LOCK WASHER,3/8"

Timing gear cover

4шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Timing gear cover

1шт.

41

92-5

LOCK WASHER,5/16"

Timing gear cover

1шт.

Выбрано товаров: 33
