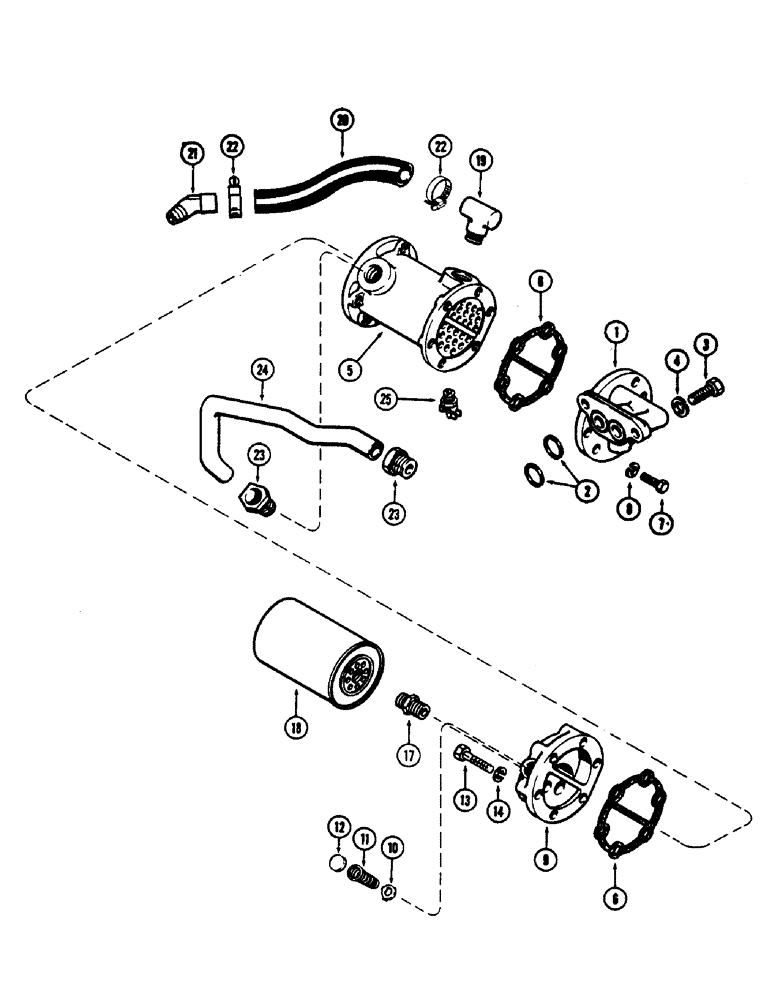

Запчасти Case 825 (042) - OIL FILTER AND HEAT EXCHANGER, (336BD) AND (336BDT) DIESEL ENGINES (01) - ENGINE

1

A61244

BASE

- heat exchanger

1шт.

2

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 15/16 x 1-1/8 x 3/32"

2шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

A61245

COOLER

EXCHANGER - heat, lube oil

1шт.

6

A64367

GASKET

- heat exchanger

2шт.

7

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

A136934

HOUSING

BODY ASSY. - (Replaces A61902), Includes: Ref. 10 - 12

1шт.

10

A58754

VALVE

- relief

1шт.

11

A58755

FILTER

SPRING - relief valve

1шт.

12

41-1016

PLUG,Cup, 1"

- relief valve (1" cup type)

1шт.

13

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

6шт.

17

A58757

ADAPTER

-, Serial Range: filter-body

1шт.

18

A146696

ENGINE OIL FILTER

FILTER - lube oil (Replaces A58758)

1шт.

19

217-128

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

ELBOW - hose (To exchanger) 90 degrees

1шт.

20

A59223

HOSE

- exchanger to block (3/4" I.D. x 6-3/4")

1шт.

21

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- hose (To block) 45 degrees

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

23

222-1618

HYD CONNECTOR,Flareless, 1 3/16"-12 Tube x 3/4" NPT

CONNECTOR - tube

2шт.

24

A61976

TUBE

- exchanger to water pump

1шт.

25

A23656

COCK, DRAIN

VALVE - drain cock

1шт.
