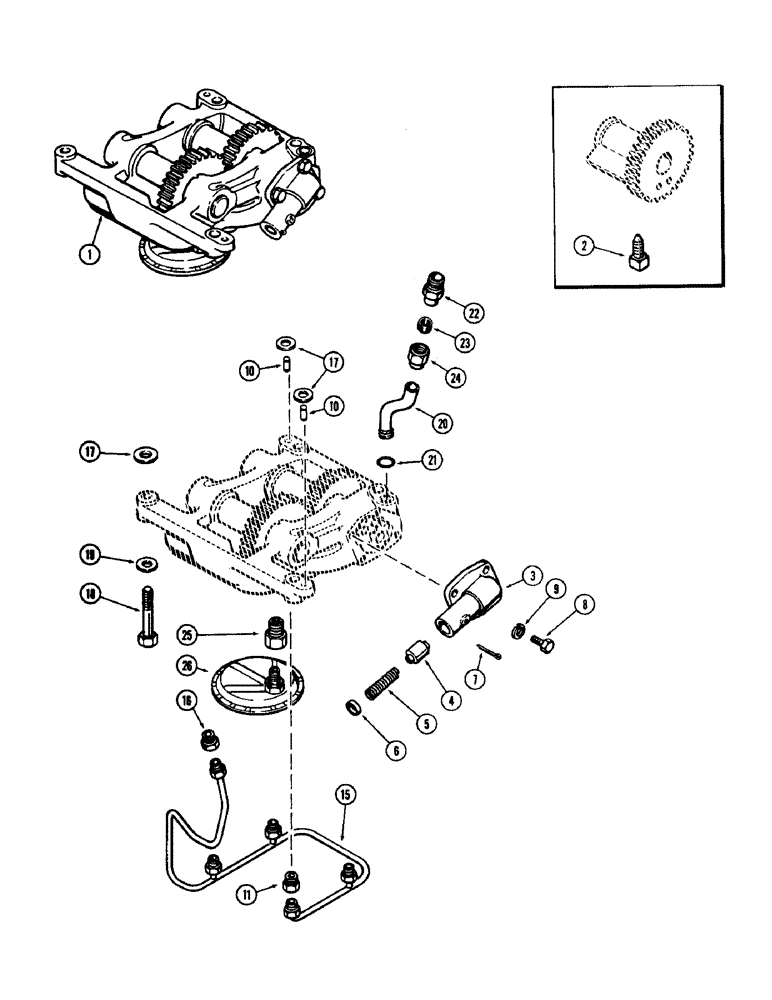

Запчасти Case 825 (040) - BALANCER AND OIL PUMP, (336BD) AND (336BDT) DIESEL ENGINES (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A66169
PUMP
BALANCER ASSY. - (Replaces A62000), Includes: Ref. 2 - 11
1шт.
2
181-675
SET SCREW,Sq Hd, 1/2"-13 x 1"
SCREW - set (1/2 x 1-1/4" N.C. sq. hd.)
4шт.
3
A61129
COVER
- oil pump
1шт.
4
A65083
VALVE
- relief, oil pump (Rpl. A34992)
1шт.
5
A59111
SPRING
- relief valve
1шт.
7
132-32
COTTER PIN,3/32" x 1 1/2"
Pin, Split (Cotter), 3/32" x 1 1/2"
1шт.
8
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Oil pump cover Hex, 5/16"-18 x 7/8", G5, Full Thd
3шт.
8
13-522
BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5
- oil pump cover (5/16 x 1-3/8" N.C. hex.)
1шт.
9
92-5
LOCK WASHER,5/16"
4шт.
10
A8134
PIN
- dowel, balancer locating
2шт.
11
222-1012
HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT
CONNECTOR - manifold to balancer
4шт.
15
A62002
MANIFOLD
- balancer oil supply
1шт.
16
222-1012
HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT
CONNECTOR
1шт.
17
G49401
SHIM,.005" Thk
Mounting .005" Thk
1шт.
17
G49402
SHIM,.010" Thk
Mounting .010" Thk
1шт.
18
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- balancer to block (1/2 x 2-1/2" N.C. hex.)
2шт.
18
13-852
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
Balancer to block Hex, 1/2"-13 x 3 1/4", G5
2шт.
19
A150672
WASHER
- 1/2 x 7/8 x 1/8"
4шт.
20
A61130
TUBE
-, Serial Range: pump-block
1шт.
21
A64436
O-RING,0.549" ID x 0.755" OD
- tube (9/16 x 3/4 x 3/32")
1шт.
22
221-31
DRAIN PLUG,Sq Soc, 1/4"-18 NPTF
CONNECTOR ASSY., Includes: Ref. 23 and 24
1шт.
23
222-106
SLEEVE,5/8" Tube
- (For ) 5/8" Tube
1шт.
24
222-116
TUBE NUT,1"-18
NUT - (For 5/8" tube)
1шт.
25
A21235
FITTING
ADAPTER - screen to balancer (1-9/16" long) (Used w/A59140 stamped oil pan) (See figure 38)
1шт.
25
A22591
ADAPTER
- screen to balancer (1-7/8" long) (Used w/A65167 cast iron oil pan) (See figure 38)
1шт.
26
A22590
FILTER SCREEN
SCREEN ASSY. - float (Oil inlet)
1шт.
Выбрано товаров: 27
