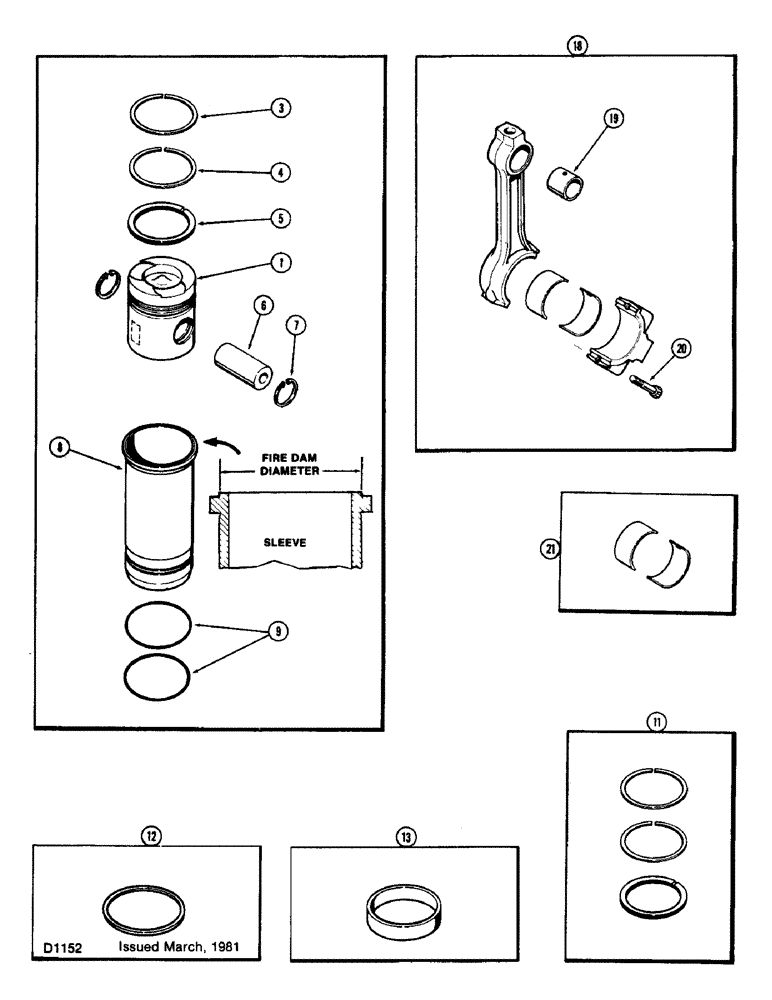

Запчасти Case 825 (038) - PISTONS AND SLEEVES, WITH 5.092 INCH TO 5.097 INCH FIRE DAM DIAMETER SLEEVE, (336BDT) DIESEL ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A146697
PISTON
PISTON - cylinder, 4-5/8" (107.47 mm) Bore
4шт.
3
NSS
NOT SOLD SEPARAT
RING - compression (1st groove) (Order ref. 11)
4шт.
4
NSS
NOT SOLD SEPARAT
RING - compression (2nd groove) (Order ref. 11)
4шт.
5
NSS
NOT SOLD SEPARAT
RING - oil control (3rd groove) (Order ref. 11)
4шт.
6
A58584
PIN,45.71mm OD x 98.17mm L
PIN - piston
4шт.
7
A44249
SNAP RING,1.812", Int, #181
Ring, Snap, , piston pin 1.812", Int, #181
8шт.
8
A140216
SLEEVE CYLINDER
SLEEVE - piston
4шт.
9
A146616
O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro
O-RING - sleeve (Replaces A58571)
8шт.
11
A44054
RING
RING KIT - piston re-ring (Set of 1)
4шт.
12
A148553
SHIM
SHIM - sleeve, 0.010" (0.254 mm) (Repairs only)
1шт.
12
A148554
SHIM
SHIM - sleeve, 0.005" (0.127 mm) (Repairs only)
1шт.
13
A150327
BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L
BUSHING - sleeve (Repairs only)
1шт.
A150328
ADHESIVE
LOCTITE - tube (Not shown)
1шт.
18
A65032
ROD
ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20
4шт.
18
AR65032
REMAN-CONNECTING ROD
Remanufactured Connecting Rod
4шт.
18
AC65032
CORE-ROD CONNECTING
Core Connecting Rod Return Part Number
4шт.
19
A58580
BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L
BUSHING - piston pin, connecting rods
1шт.
20
A65757
FLANGE BOLT,1/2" - 20 x 2.31"
BOLT - connecting rod cap (Replaces A66618)
2шт.
21
A41758
BEARING LINER
INSERT - connecting rod bearing (Standard) (Set of 2)
4шт.
21
A41899
BEARING LINER
INSERT - connecting rod bearing, 0.002" (0.051 mm) Undersize (Set of 2)
4шт.
21
A41900
BEARING LINER
INSERT - connecting rod bearing, 0.010" (0.254 mm) Undersize (Set of 2)
4шт.
21
A41901
BEARING LINER
INSERT - connecting rod bearing, 0.020" (0.508 mm) Undersize (Set of 2)
4шт.
21
A41902
BEARING LINER
INSERT - connecting rod bearing, 0.030" (0.762 mm) Undersize (Set of 2)
4шт.
Выбрано товаров: 23
