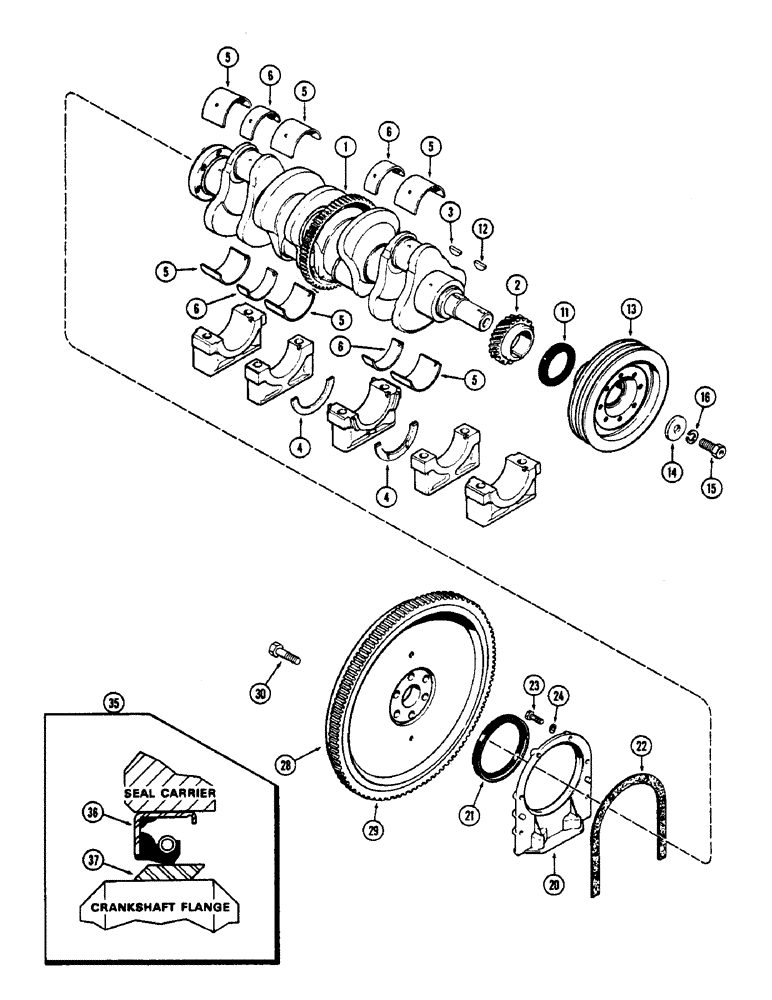

Запчасти Case 825 (036) - CRANKSHAFT AND FLYWHEEL, (336BD) AND (336BDT) DIESEL ENGINES (01) - ENGINE

1

A148621

SHAFT

CRANKSHAFT ASSY. - (Replaces A64473), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, (Standard) (0.185")

2шт.

4

A42447

WASHER

- thrust (Oversize) (0.191")

2шт.

5

A43090

BEARING LINER

LINER SET - main brg., wide (Std.)

3шт.

5

A43124

LINING

LINER SET - main brg., wide (-.002")

3шт.

5

A43125

CRANKSHAFT BEARING

LINER SET - main brg., wide (-.010")

3шт.

5

A43126

LINING

LINER SET - main brg., wide (-.020")

3шт.

5

A43127

LINING

LINER SET - main brg., wide (-.030")

3шт.

6

A43089

BEARING LINER

LINER SET - main brg., narrow (Std.)

2шт.

6

A43120

LINING

LINER SET - main brg., narrow (-.002")

2шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER SET - main brg., narrow (-.010")

2шт.

6

A43122

LINING

LINER SET - main brg., narrow (-.020")

2шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER SET - main brg., narrow (-.030")

2шт.

11

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

13

A66621

PULLEY

- crankshaft (Replaces A61047)

1шт.

14

A27903

WASHER

- pulley

1шт.

15

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley retaining Hex, 5/8"-18 x 1 1/2", G5

1шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- rear oil seal

1шт.

21

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2") (See ref. 35)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

28

A65049

FLYWHEEL

ASSY., Includes: Ref. 29

1шт.

29

A27920

GEAR

- ring

1шт.

30

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- flywheel to crankshaft (5/8 x 1-1/2" N.C. hex.)

6шт.

35

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear (Incl. tool), Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-3/4 x 1/2"), wear seal kit

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), wear seal kit

1шт.

REFER TO ILLUSTRATION PAGE,REF#1 THE GEAR SHOWN IS NSS

1шт.
