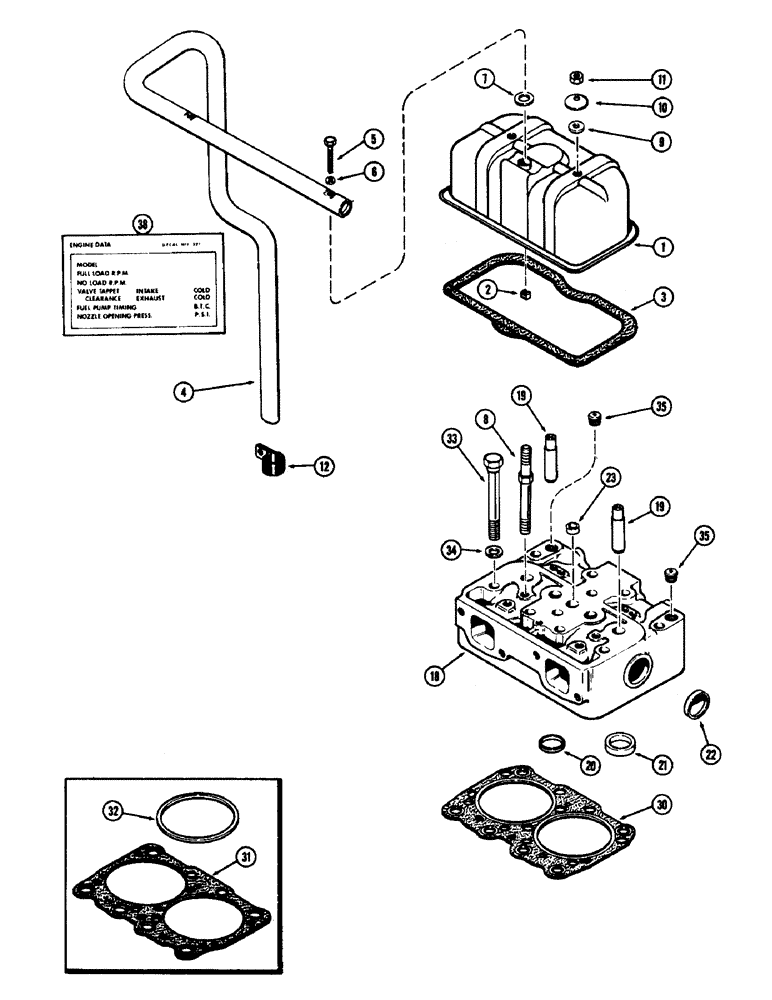

Запчасти Case 825 (026) - CYLINDER HEAD AND COVER, (336BD) AND (336BDT) DIESEL ENGINES (01) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover (Replaces A58928)

2шт.

4

A64994

TUBE

TUBE - breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT - 1/4 x 2-1/4" N.C. hex. head

2шт.

6

A34133

GASKET

GASKET - breather tube bolt, 1/4 x 1/2 x 1/16" (6.35 x 12.7 x 1.59 mm)

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube to cover, 11/16 x 1-1/4 x 1/4" (17.46 x 31.75 x 6.35 mm)

2шт.

8

A67121

STUD

STUD - cylinder head cover, 7/16" N.C. x 6"

4шт.

9

A23684

GASKET

GASKET - cover stud, 1/2 x 7/8 x 1/8" (12.7 x 22.22 x 3.17 mm)

4шт.

10

A23683

WASHER

WASHER - cover stud (Beveled)

4шт.

11

25-107

NUT,7/16"-14, G5

NUT - 7/16" N.C. hex.

4шт.

12

D34033

CLAMP

CLAMP - breather tube

1шт.

18

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A58618 and A60558), Includes: Ref. 19 - 23

2шт.

18

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

2шт.

18

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

19

A41783

GUIDE

GUIDE - intake and exhaust valves

4шт.

20

A60557

INSERT

INSERT - intake valve seat

2шт.

21

A66192

INSERT

INSERT - exhaust valve seat

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.27 mm) Cup type

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.05 mm) Cup type

3шт.

30

REF

INSTRUCTION

GASKET - cylinder head (Engine serial no. 2511310 and after) (See Figure 46)

2шт.

31

REF

INSTRUCTION

GASKET - cylinder head (Prior to engine serial no. 2511310) (See Figure 46)

2шт.

32

A58622

RING

RING - fire (Standard) (1/16" plain) (Prior to engine serial no. 2511310)

4шт.

32

A42596

RING - fire (Oversize) (5/16" with blue stripe) (Prior to engine serial no. 2511310)

4шт.

33

A62732

STEP BOLT

BOLT - cylinder head, 5/8 x 5-5/8" N.C. hex.

20шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt, 5/8 x 1 x 1/8" (15.87 x 25.4 x 3.17 mm)

20шт.

35

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" P.T., hex. socket head

4шт.

38

321-2310

DECAL

DECAL - engine data (For turbocharged engines)

1шт.

38

321-2309

DECAL

DECAL - engine data (For naturally aspirated engines)

1шт.
