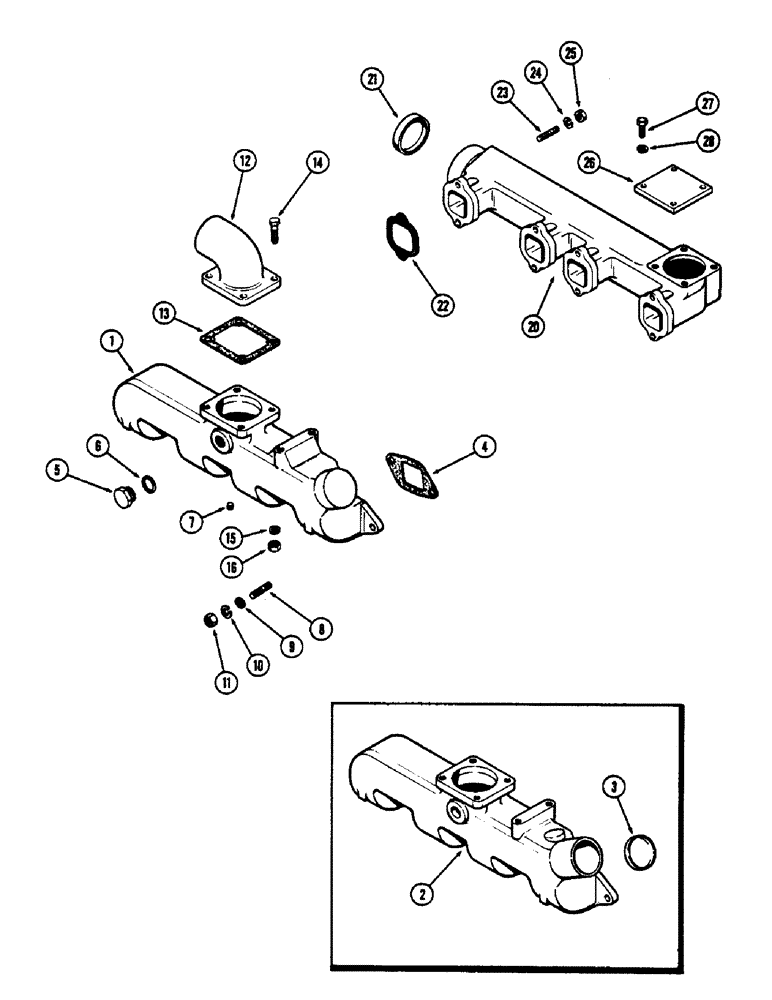

Запчасти Case 825 (022) - MANIFOLDS (01) - ENGINE

1

A140120

MANIFOLD

- intake (Aluminum) (1st used eng. ser. no. 2575274)

1шт.

2

A59225

MANIFOLD

ASSY. - intake (Cast iron) (Order A140120) (Used prior to eng. ser. no. 2575274), Includes: Ref. 3

1шт.

3

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

4шт.

5

A20917

PLUG

- heater hole

1шт.

6

A20916

MANIFOLD GASKET

GASKET - heater hole plug

1шт.

7

221-1840

PLUG

- 1/8" P.T. hex. sckt. hd.

1шт.

8

A59077

STUD

- manifold (3/8" N.C. x 1-3/4")

8шт.

9

195-25

WASHER,3/8"

- (Used w/aluminum manifold) (3/8 x 13/16 x 1/16")

3шт.

10

92-6

LOCK WASHER,3/8"

8шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

12

A60458

ELBOW

- intake manifold

1шт.

13

A58910

GASKET

-, Serial Range: elbow-manifold

1шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Elbow Hex, 3/8"-16 x 1 3/4", G5

4шт.

15

193-72

LOCK WASHER

- 3/8" int./ext. skpf.

4шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

20

A65272

MANIFOLD

ASSY. - exhaust, Includes: Ref. 21

1шт.

21

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" cup type, exhaust manifold

1шт.

22

A58666

MANIFOLD GASKET

- exhaust manifold (Asbestos faced)

4шт.

23

A59077

STUD

- manifold (3/8" N.C. x 1-3/4"), exhaust

8шт.

24

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

8шт.

25

131-903

NUT,3/8"-16

NUT - 3/8" N.C. seez-pruf, exhaust manifold

8шт.

26

A58665

COVER

- exhaust manifold

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover, exhaust manifold Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

4шт.
