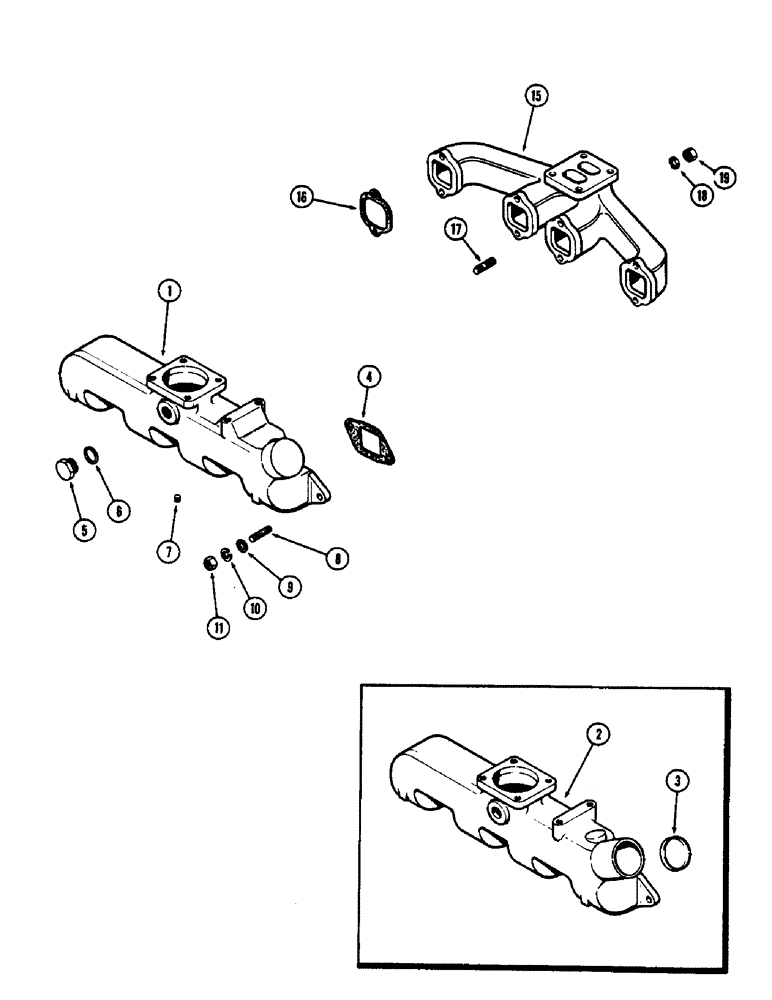

Запчасти Case 825 (020) - MANIFOLDS, (336BDT) DIESEL ENGINE, INTAKE MANIFOLD (01) - ENGINE

1

A140120

MANIFOLD

- intake (Aluminum) (1st used eng. ser. no. 2575274)

1шт.

2

A59225

MANIFOLD

ASSY. - intake (Cast iron) (Order A140120) (Used prior to eng. ser. no. 2575274), Includes: Ref. 3

1шт.

3

41-1042

PLUG,Cup, 2 5/8"

- 2-3/8" cup type

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

4шт.

5

A20917

PLUG

- heater hole

1шт.

6

A20916

MANIFOLD GASKET

GASKET - heater hole plug

1шт.

7

221-1840

PLUG

- 1/8" P.T., hex. sckt. hd.

1шт.

8

A59077

STUD

- manifold (3/8" N.C. x 1-3/4")

8шт.

9

195-25

WASHER,3/8"

- (Used w/aluminum manifold) (3/8 x 13/16 x 1/16")

8шт.

10

92-6

LOCK WASHER,3/8"

8шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

15

A61001

MANIFOLD

- exhaust

1шт.

16

A58895

GASKET

- exhaust manifold (Metal faced)

4шт.

17

A59077

STUD

- manifold (3/8" N.C. x 1-3/4"), exhaust

8шт.

18

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

8шт.

19

131-903

NUT,3/8"-16

NUT - 3/8" N.C. seez-pruf, exhaust manifold

8шт.
