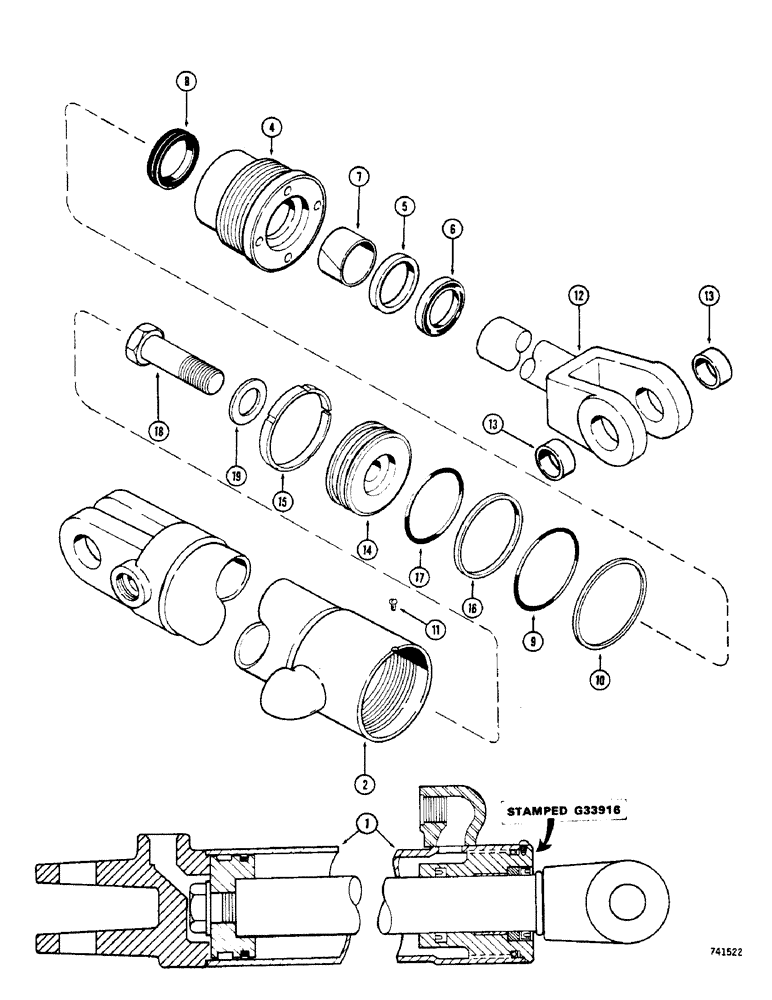

Запчасти Case 825 (096) - G33916 STEERING CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (13) - STEERING SYSTEM

1

G33916

CYLINDER ASSEMBLY - steering, stamped G33916 on gland, 3" (76 mm x 15" (330 mm) stroke, Includes: Ref. 2 - 19

2шт.

See Figure 098 for G33916 cylinder without center bearing in gland.

1шт.

2

G33911

TUBE - cylinder body 22.69" L

1шт.

3

RESERVED

1шт.

G34328

GLAND

ASSEMBLY - hand stamp for identification, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, 1-1/2" x 2" x 5/16"

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

7

G34302

BEARING

- center

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

8

D36969

CUP

SEAL piston rod, 1-1/2" x 2" x 7/16", for extreme heat or cold use P/N G100776, see below

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland, 3 x 3-1/4" x 1/8"

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland, O-ring backup

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, no. 8 - 32 x 1/4", self-tapping

1шт.

12

G34336

ROD

ASSEMBLY - piston, 1-1/2" dia., Includes: Ref. 13

1шт.

13

D34337

BUSHING

- piston rod

2шт.

14

G33747

PISTON

- cylinder

1шт.

15

G32033

RING

- wear, piston

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

16

G32034

RING

- seal, piston, 2-7/8" x 3 x 5/32" teflon

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

17

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston, 2-1/2" x 2-3/4" x 1/8"

1шт.

Part of P/N G34656 Cylinder Repair Seal Kit

1шт.

18

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt, 7/8" x 1-3/8" x 1/8"

1шт.

G34656

SEAL

KIT - cylinder repair, Includes: Ref. 6 - 10 and 15 - 17

1шт.

G100776

SEAL

piston rod, extreme heat of cold, optional for Ref. 8

1шт.
