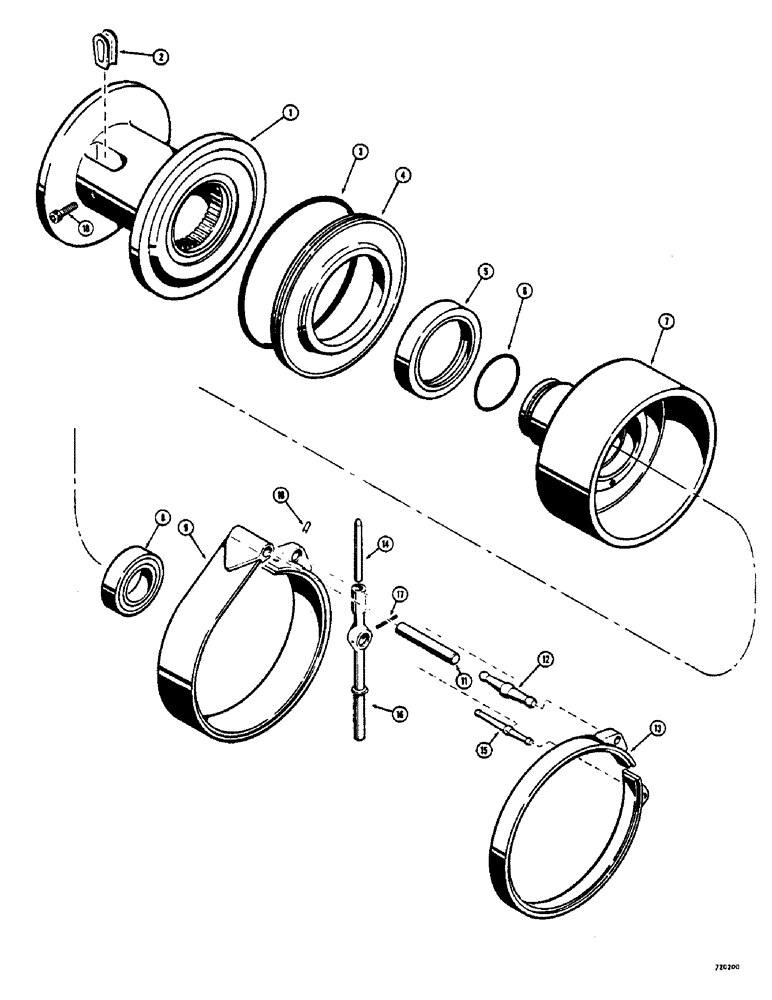

Запчасти Case 825 (266) - RHINOMATIC WINCH, CABLE DRUM AND BRAKE BANDS (05) - UPPERSTRUCTURE CHASSIS

1

L35140

DRUM - cable

1шт.

2

L35142

HONDU - drum cable retaining

1шт.

3

L35138

O-RING - housing

1шт.

4

L35143

HOUSING - seal, oil

1шт.

5

L35097

SEAL

- oil

1шт.

6

L35136

RING

O-RING - brake drum

1шт.

7

L35135

DRUM - brake

1шт.

8

L35120

BALL BEARING

BEARING - ball

1шт.

9

L35137

BAND - brake, secondary

1шт.

10

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

11

L35134

PIN - anchor, brake

1шт.

12

L35133

LEVER - brake, secondary

1шт.

13

L35131

BAND - brake, primary

1шт.

14

L35141

ROD - push

1шт.

15

L35205

LEVER

- brake, primary

1шт.

16

L35206

LEVER BLOCK - brake band

1шт.

17

L35207

PIN - lock, 1/8" dia. x 1-1/4"

1шт.

18

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SHCS - 3/8" - 16 N.C. x 3/4"

1шт.
