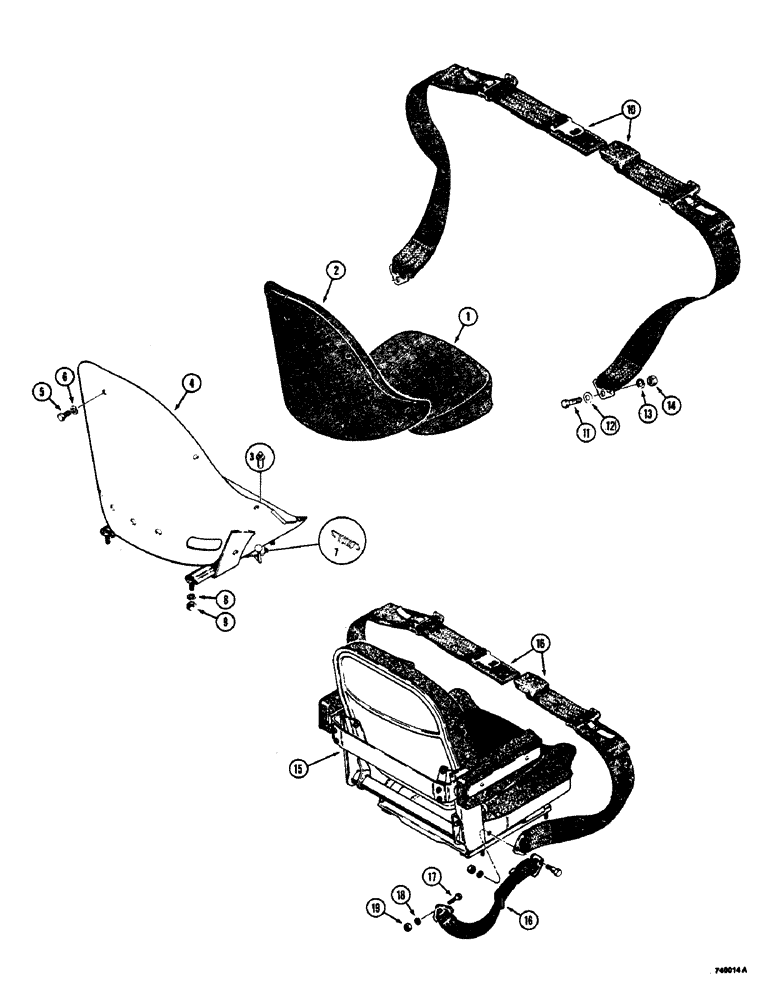

Запчасти Case 825 (244) - SEAT AND SEAT BELTS (05) - UPPERSTRUCTURE CHASSIS

L46484

SEAT

ASSEMBLY - Jr. Road King, Includes: Ref. 1 - 7

1шт.

1

D52470

CUSHION

- seat

1шт.

2

A42747

BACKREST

CUSHION - backrest

1шт.

3

L32870

PIN

- cushion alignment

1шт.

4

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

5

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex., 3/8" - 16 N.C. x 5/16"

5шт.

6

195-525

WASHER,3/8", SAE

- plain, 3/8"

5шт.

7

L30533

VALVE SPRING

SPRING - adjusting

2шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

10

D60615

SAFETY BELT ,3.00" W

Set 3.00" W

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12

DR10768

WASHER

- special

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

131-654

LOCK NUT,1/2"-13, GB

NUT - hex., 1/2" - 13 N.C., zinc plated

2шт.

15

L73447

SEAT

- operators, used after tractor S.N. 9116639, see Figure 246

1шт.

16

L57915

SAFETY BELT 3.00" W, Set 3.00" W

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

131-654

LOCK NUT,1/2"-13, GB

NUT - hex., lock, 1/2" - 13 N.C., zinc plated

2шт.
