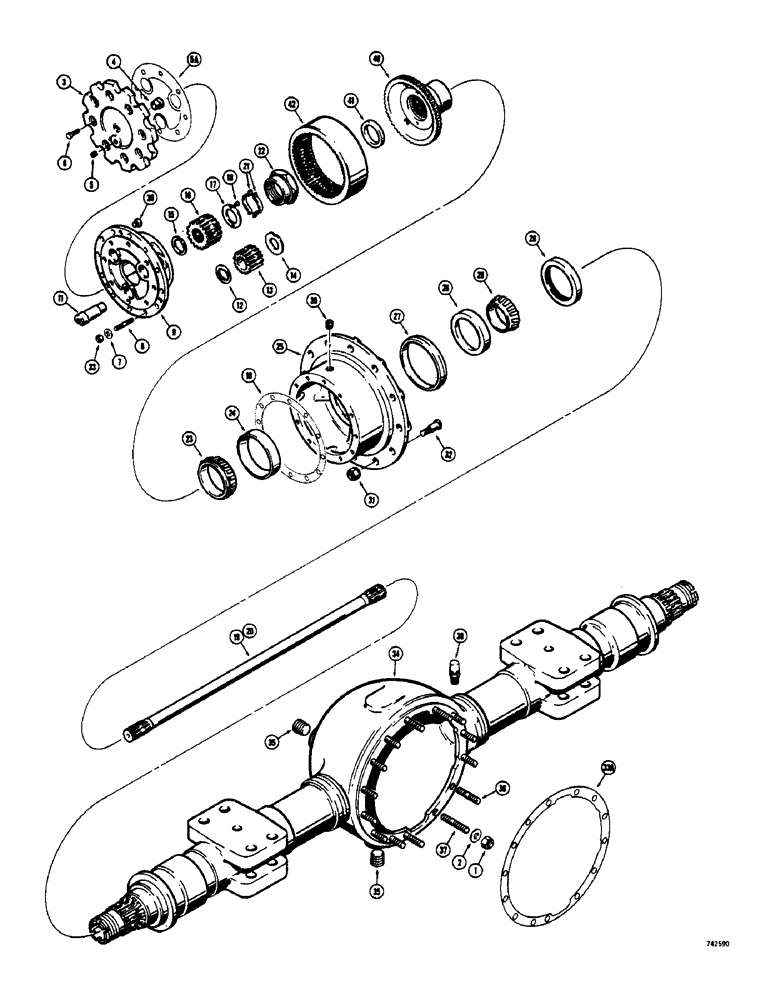

Запчасти Case 800 (178) - PRM130 AXLE AND PLANETARY (03) - TRANSMISSION

L59524

AXLE ASSEMBLY - front, complete, PRM-130 with 22.2 to 1 ratio, hi-traction, Includes: Ref. 1 - 42

1шт.

L59525

AXLE ASSEMBLY - front, complete, PRM-130 with 22.2 to 1 ratio, no-spin, Includes: Ref. 1 - 42

1шт.

L57778

AXLE ASSEMBLY - front, complete, PRM-130 NXT, Includes: Ref. 1 - 42

1шт.

1

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex., lock, 1/2" - 20 N.F.

14шт.

2

D47366

WASHER

- special

14шт.

L32820

COVER

ASSEMBLY - planetary, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

4

A12980

BUTTON

- thrust

1шт.

5

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - fill, square socket head, 1/4" N.P.T.

2шт.

5a

NSS

NOT SOLD SEPARAT

GASKET - planetary cover, formed from M20704 Silastic material

1шт.

6

L30675

SCREW

BOLT - hex., special

16шт.

7

L35578

WASHER

- spider to hub, special, 9/16"

24шт.

8

L35031

STUD

- spider to hub, 9/16"

24шт.

9

L35035

U-JOINT SPIDER

SPIDER - planetary, uses 9/16" studs

2шт.

10

M20704

ADHESIVE

GASKET - spider to hub, formed from Silastic material

1шт.

11

L35026

SHAFT - planetary pinion gear

6шт.

12

A12904

WASHER

- pinion thrust, outer

6шт.

13

L35028

GEAR - pinion, planetary

6шт.

14

A40145

WASHER

- pinion thrust, inner

6шт.

15

A12907

O-RING,1.74" ID x 0.1205"

SNAP RING - sun gear

2шт.

16

L35027

GEAR - sun, planetary

2шт.

A13103

WASHER

AND DOWEL ASSEMBLY, Includes: Ref. 17 and 18

2шт.

17

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

18

A13137

AXLE PIN

PIN - thrust washer

2шт.

19

L35036

SHAFT - axle, PRM-130, 46" long

1шт.

20

L35037

SHAFT - axle, PRM-130, 44" long

1шт.

21

A12953

RETAINER

LOCK - bearing nut

4шт.

22

A13104

BEARING LOCK NUT

NUT - hub bearing retaining

2шт.

23

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

CONE - bearing, tapered roller type, outer

2шт.

L35022

HUB

ASSEMBLY - rim, uses 9/16" studs, Includes: Ref. 24 - 27

2шт.

24

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

CUP - bearing, tapered roller type, outer

1шт.

25

NSS

NOT SOLD SEPARAT

HUB - rim

1шт.

26

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - bearing, tapered roller type, inner

1шт.

27

L35024

GUARD - seal, hub

2шт.

28

L35032

OIL SEAL,126.09mm ID x 158.95mm OD x 15.37mm Thk

SEAL - hub bearing oil

2шт.

29

A63217

ROLLER BEARING,100 mm ID x 160 mm OD x 41.20 mm

CONE - hub, inner

2шт.

30

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic, drain, 3/4" N.P.T.

2шт.

31

A12522

WHEEL NUT

- wheel stud

24шт.

32

A13112

STUD

STUD - wheel

24шт.

33

129-551

SPECIAL NUT,9/16"-18, G8

- hex., 9/16" - 18 N.F.

24шт.

33a

NSS

NOT SOLD SEPARAT

GASKET - housing, formed from M20704 Silastic material

1шт.

D66247

HOUSING ASSEMBLY - axle, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

35

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - oil drain and level

2шт.

36

A13130

STUD

- short

10шт.

37

L30673

STUD

- long

4шт.

38

A12928

BREATHER

- oil

1шт.

39

L36117

BUTTON

THRUST BUTTON - spider

6шт.

L33735

HUB

AND SLEEVE ASSEMBLY, Includes: Ref. 40 and 41

2шт.

40

NSS

NOT SOLD SEPARAT

HUB - planetary ring gear

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

42

D66248

GEAR - planetary ring

2шт.

M20704

ADHESIVE

SILASTIC GASKET MATERIAL - 3 oz., not shown

1шт.
