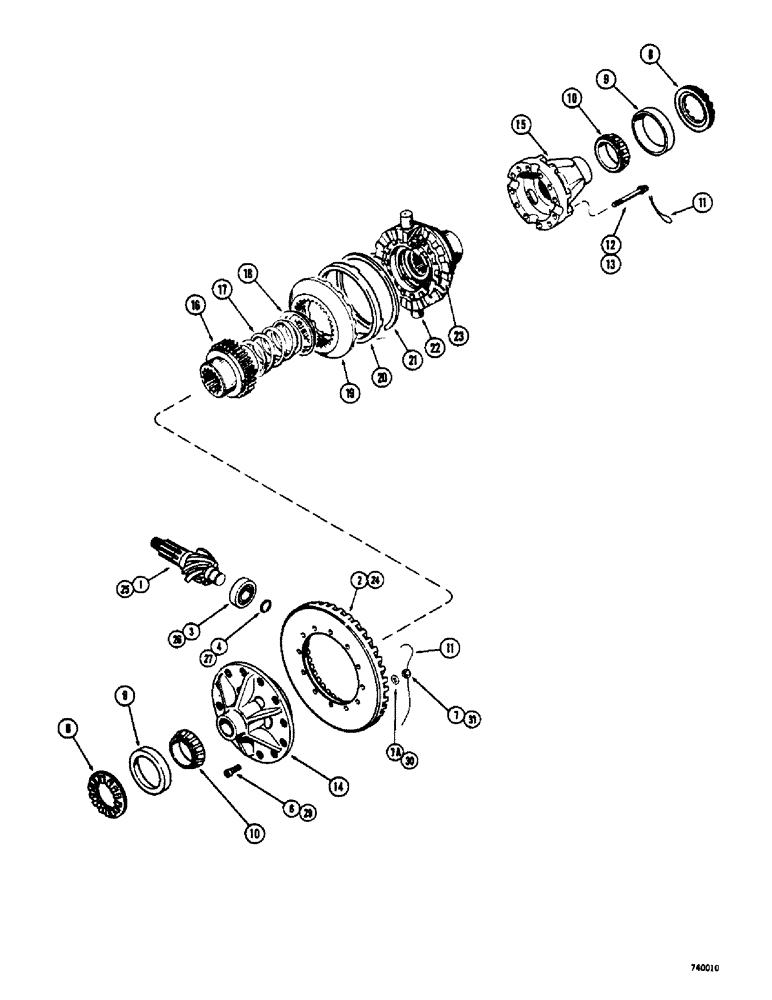

Запчасти Case 800 (160) - PR130 DIFFERENTIAL, NO-SPIN, PINION, RING GEAR AND DIFFERENTIAL CASE (03) - TRANSMISSION

L52393

AXLE ASSEMBLY - complete, PR 130, no-spin, Includes: Ref. 1 - 31

1шт.

L35017

GEAR

SET - pinion and ring gear, matched set, when stock is exhausted, order L36020 bevel gear assembly for service, Refs. 24 - 31, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

3

L30387

ROLLER BEARING

BEARING - pinion, pilot

1шт.

4

A15442

LOCK

RING - retaining, pilot bearing

1шт.

6

D47597

BOLT

- special, ring gear to differential when stock is exhausted, order L35919 bolt, 131-1138 nut and D47366 washer for service

12шт.

6

L35919

BOLT

- special, ring gear to differential used with 131-1138 nut and D47366 washer

12шт.

7

129-282

SLOTTED NUT

- hex., slotted, 1/2" - 20 N.F., used with D47597 bolt

12шт.

7

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., self-locking, used with L35919 bolt

12шт.

7a

D47366

WASHER

- special, used with L35919 bolt and 131-1138 nut

12шт.

8

A12942

GASKET

RING - adjusting, differential bearing

2шт.

9

A12946

BEARING CUP

CUP - bearing, differential

2шт.

10

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, differential

2шт.

L35019

DIFFERENTIAL ASSY

DIFFERENTIAL CASE AND GEAR ASSEMBLY - axle, Includes: Ref. 11 - 15

1шт.

11

391-631

WIRE

LOCKWIRE - bolt, no. 16-28" long, used with L30668 and L30667 bolts only

1шт.

L35227

CASE

ASSEMBLY - differential, Includes: Ref. 12 - 15

1шт.

12

L30668

SCREW

BOLT - special, differential case, long, when stock is exhausted, order L34062 bolt for service

8шт.

12

L34062

BOLT

- special, differential case, long

8шт.

13

L30667

BOLT

- special, differential case, short, when stock is exhausted, order L34063 bolt for service

4шт.

13

L34063

BOLT

- special, differential case, short

4шт.

14

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

15

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

L35020

NON SPINNING ROPE

NO-SPIN ASSEMBLY - differential, Includes: Ref. 16 - 23

1шт.

16

L35083

GEAR - differential, side

2шт.

17

L35085

SPRING - differential

2шт.

18

L35084

RETAINER - spring

2шт.

19

D87181

CLUTCH

- driven

2шт.

20

L35080

RING

- hold out

2шт.

21

L35086

RING

SNAP RING - differential, when stock is exhausted, D66319 spider kit will be supplied

1шт.

22

L35079

SPIDER ASSY.

SPIDER - differential, when stock is exhausted, D66319 spider kit will be supplied

1шт.

23

L35082

CAM

- differential, when stock is exhausted, D66319 spider kit will be supplied

1шт.

D66319

SPIDER ASSY.

SPIDER ASSEMBLY KIT, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SNAP RING - differential, when stock is exhausted, D66319 spider kit will be supplied

1шт.

22

NSS

NOT SOLD SEPARAT

SPIDER - differential

1шт.

23

NSS

NOT SOLD SEPARAT

CAM - differential

1шт.
