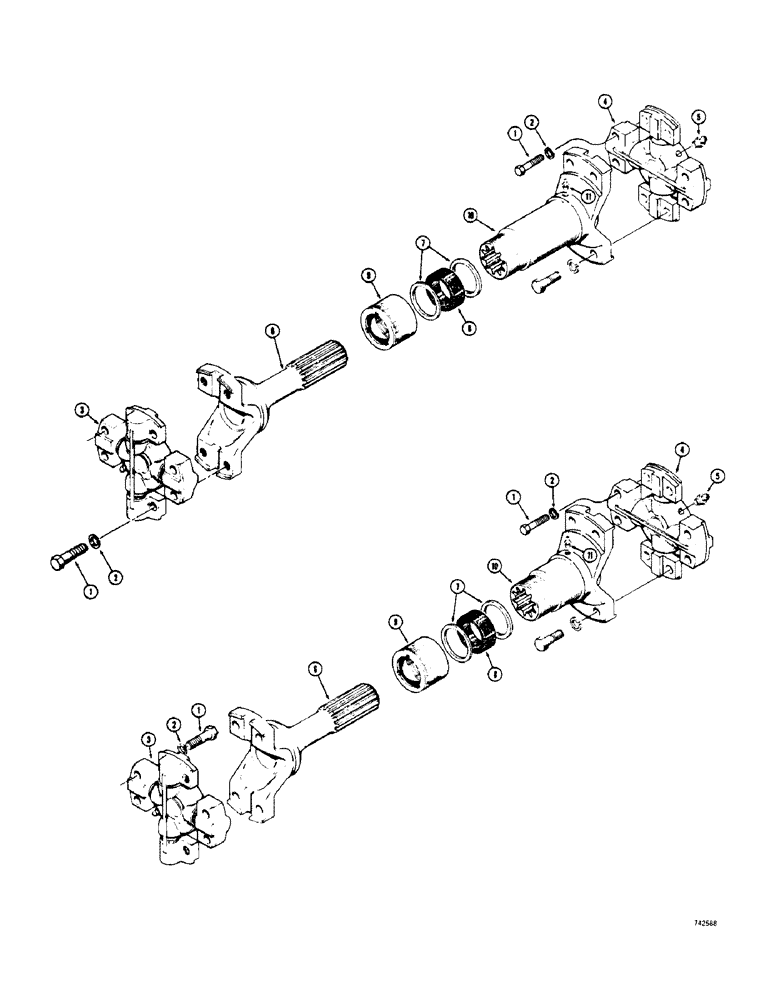

Запчасти Case 800 (138) - L49260 FRONT AXLE DRIVE SHAFT (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
L49260
DRIVE SHAFT ASSEMBLY - front axle, used on 600 and 800 Skid Kings only, Includes: Ref. 1 - 11
1шт.
1
L33426
SCREW
BOLT - special, spider and bearing to drive shaft or front axle
16шт.
2
192-161
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
16шт.
3
L31776
SPIDER
SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 4 and 5
2шт.
4
NSS
NOT SOLD SEPARAT
SPIDER AND BEARING - drive shaft
1шт.
5
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" N.P.T.
1шт.
6
L33739
YOKE - drive shaft, splined, transmission end
1шт.
L32425
CAP
KIT - dust, drive shaft, Includes: Ref. 7 - 9
1шт.
7
L31779
WASHER
- felt retaining
2шт.
8
L31778
WASHER
- felt type, when stock is exhausted, order L33948 washer for service
1шт.
8
L33948
WASHER
- felt type
1шт.
9
NSS
NOT SOLD SEPARAT
CAP - dust, drive shaft
1шт.
10
L31775
YOKE
TUBE AND YOKE ASSEMBLY - drive shaft, axle end
1шт.
11
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" N.P.T.
1шт.
L52387
DRIVE SHAFT ASSEMBLY - front axle, used on 825 Skid Kings only, L52387, Includes: Ref. 1 - 11
1шт.
1
L33426
SCREW
BOLT - special, spider and bearing to drive shaft or front axle, L52387
16шт.
2
192-161
LOCK WASHER,3/8"
WASHER, LOCK, , L52387 3/8"
16шт.
3
L31776
SPIDER
SPIDER AND BEARING ASSEMBLY - drive shaft, L52387, Includes: Ref. 4 and 5
2шт.
4
NSS
NOT SOLD SEPARAT
SPIDER AND BEARING - drive shaft, L52387
1шт.
5
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" N.P.T., L52387
1шт.
6
L33997
YOKE - drive shaft, splined, transmission end, L52387
1шт.
L32425
CAP
KIT - dust, drive shaft, L52387, Includes: Ref. 7 - 9
1шт.
7
L31779
WASHER
- felt retaining, L52387
2шт.
8
L31778
WASHER
- felt type, when stock is exhausted, order L33948 washer for service, L52387
1шт.
8
L33948
WASHER
- felt type, L52387
1шт.
9
NSS
NOT SOLD SEPARAT
CAP - dust, drive shaft, L52387
1шт.
10
L33998
TUBE AND YOKE ASSEMBLY - drive shaft, axle end, L52387
1шт.
11
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" N.P.T., L52387
1шт.
Выбрано товаров: 28
