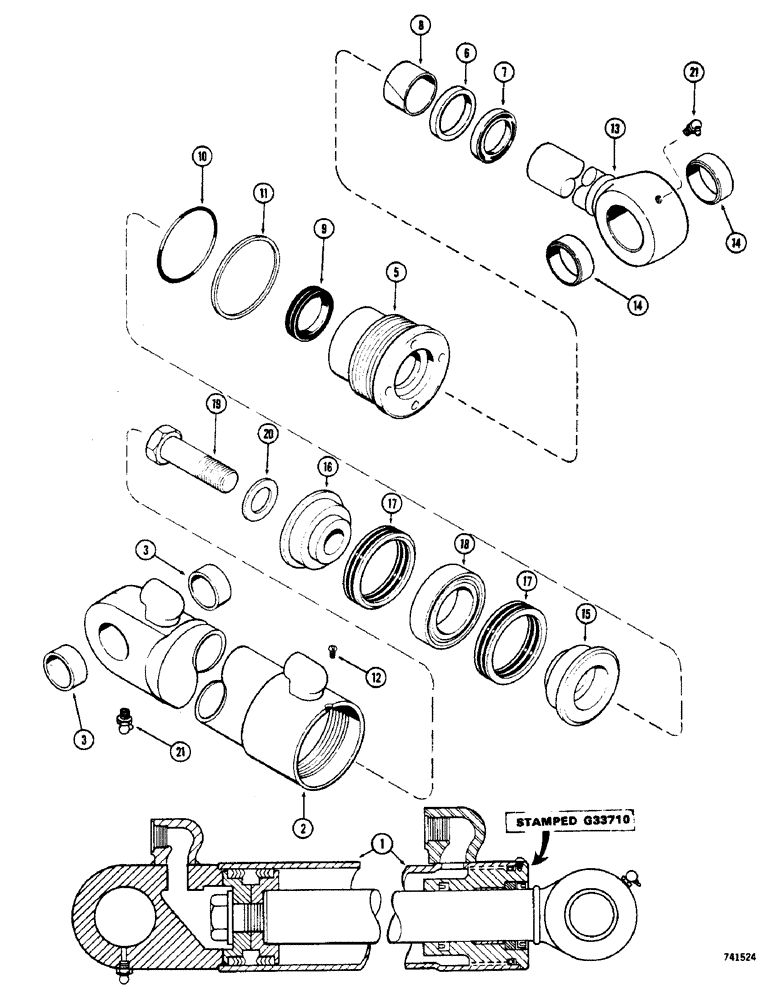

Запчасти Case 800 (208) - G33710 DECKING BLADE CYLINDER, PART NUMBER STAMPED ON GLAND (07) - HYDRAULIC SYSTEM

1

G33710

CYLINDER ASSEMBLY - decking blade, stamped G33710 on gland, 2-1/2" diameter cylinder with 15" stroke, Includes: Ref. 2 - 21

1шт.

For cylinder without gland center bearing see Figure 210.

1шт.

2

G33903

TUBE ASSEMBLY - cylinder body, Includes: Ref. 3

1шт.

3

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- tube

2шт.

G34623

GLAND

ASSEMBLY - hand stamp for identification, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

G34600

RING

- center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, 1-3/4" x 2-1/4" x 5/16"

1шт.

Part of P/N G34655 Cylinder Repair Seal Kit

1шт.

8

G34621

BUSHING

BEARING - center

1шт.

Part of P/N G34655 Cylinder Repair Seal Kit

1шт.

9

D36970

CUP

SEAL piston rod, 1-3/4" x 2-1/4" x 7/16", for extreme heat or cold use G100777, see below

1шт.

Part of P/N G34655 Cylinder Repair Seal Kit

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland, 3-1/2" x 3-3/4" x 1/8"

1шт.

Part of P/N G34655 Cylinder Repair Seal Kit

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland, o-ring, backup

1шт.

Part of P/N G34655 Cylinder Repair Seal Kit

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, no. 8 - 32 x 1/4" self-tapping

1шт.

13

G33907

ROD ASSEMBLY - piston, 1-3/4" dia., Includes: Ref. 14

1шт.

14

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- piston rod

2шт.

15

G33520

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSEMBLY - piston, V-type

2шт.

Part of P/N G34655 Cylinder Repair Seal Kit

1шт.

18

D47208

RING

- center bearing

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt, 1-1/8" x 1-7/8" x 1/8"

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

G34655

SEAL

KIT cylinder repair, Includes: Ref. 7 - 11 and 17

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

piston rod, extreme heat or cold, option for Ref. 9

1шт.
