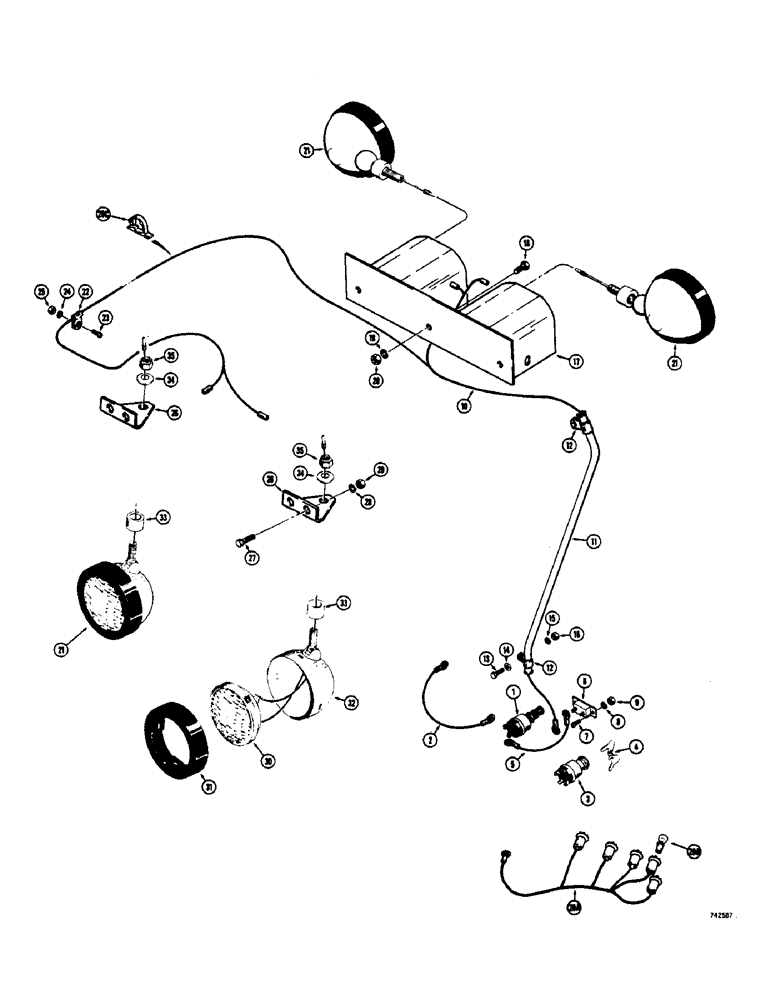

Запчасти Case 800 (078) - ELECTRICAL SYSTEM, LIGHTS (06) - ELECTRICAL SYSTEMS

1

D35065

SWITCH

ASSEMBLY - front and rear lights

1шт.

2

L18397

WIRE - jumper, ammeter to light switch

1шт.

D35092

SWITCH

AND KEY - electrical, Includes: Ref. 4 and 5

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

4

D36822

KEY

- switch, set of two

1шт.

5

L18397

WIRE - jumper, light switch to circuit breaker

1шт.

6

D37203

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

7

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head machine, no. 8 - 32 N.C. x 1/2"

2шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

9

129-16

NUT,#8-32

2шт.

10

L52848

HARNESS - wiring, front and rear lights

1шт.

11

L52850

GUARD - harness, tube

1шт.

12

49833

CLAMP

- tube, if used

2шт.

13

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

14

95-4

WASHER,1/4"

- plain, 1/4"

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

25-104

NUT,1/4"-20, G5

2шт.

17

L53434

BRACKET AND GUARD ASSEMBLY - front flood light mounting

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

19

92-8

LOCK WASHER,1/2"

3шт.

20

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

3шт.

21

REF

INSTRUCTION

LIGHT ASSEMBLY - front and rear flood, see parts below

4шт.

22

L18299

CLAMP

- wiring harness

5шт.

23

173-240

SCREW - round head machine, no. 10 - 32 N.F. x 3/4", if used

5шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

5шт.

25

129-37

NUT,#10-32

If used #10-32

5шт.

26

L52847

BRACKET - rear flood light mounting

2шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

4шт.

29a

L53386

HARNESS - wiring, instrument panel light

1шт.

29b

P0732978Q

SCREW

BULB - instrument panel light

5шт.

29c

L54606

CLIP

- harness, if used

5шт.

L13292

INTERIOR LIGHT

LIGHT ASSEMBLY - front and rear flood, painted yellow, Includes: Ref. 30 - 35

4шт.

L71730

INTERIOR LIGHT

LIGHT ASSEMBLY - front and rear flood, painted black, Includes: Ref. 30 - 35

4шт.

30

D37920

LAMP

- 24 volt, flood light

1шт.

31

A25210

MOUNTING PARTS

RETAINER - lamp, flood light

1шт.

32

NSS

NOT SOLD SEPARAT

SHELL ASSEMBLY - lamp, flood light

1шт.

33

D37048

BUSHING

- pivot, lamp, flood light

1шт.

34

D37049

WASHER

- mounting, flood light

1шт.

35

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., self lock, 1/2" - 20 N.F., flood light

1шт.
