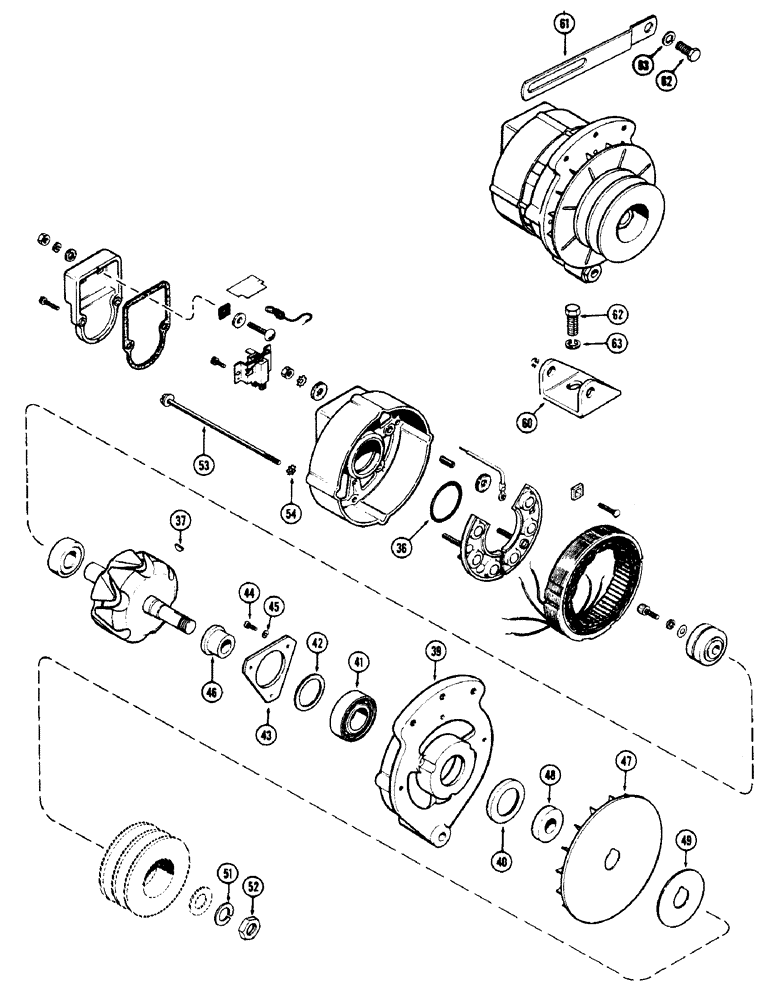

Запчасти Case 800 (070) - A41360 ALTERNATOR, (336BD) AND (336BDT) DIESEL ENGINES (06) - ELECTRICAL SYSTEMS

A41360

ALTERNATOR

ALTERNATOR ASSY. - (Continued from Figure 68), Includes: Ref. 36 - 54

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 40 Amp Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 40 Amp Alternator

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

36

A42806

RING

RETAINER - rear bearing

1шт.

37

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

39

A41437

HOUSING

HOUSING - front

1шт.

40

A41047

SEAL ASSY.

SEAL - bearing

1шт.

41

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - sealed (1 x 2-3/64 x 19/32")

1шт.

42

A41039

RETAINER

WASHER - (1-1/4 x 1-5/8 x 3/32")

1шт.

43

A41050

SPARE PART RETAINER - front bearing

1шт.

44

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - (#8 x 3/8" N.C., sltd. pan hd.)

3шт.

45

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

46

A41052

SLEEVE

SLEEVE - shaft

1шт.

47

A42431

FAN

FAN - alternator

1шт.

48

A42432

SPACER

SPACER - fan

1шт.

49

A41051

SPACER

SPACER - pulley

1шт.

51

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

52

A41035

NUT

NUT - 5/8" N.C. hex.

1шт.

53

A41037

BOLT

BOLT - thru

4шт.

54

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, Ext-Int Tooth, #8

4шт.

60

A38492

BRACKET

BRACKET - alternator mounting

1шт.

61

A62429

STRAP

STRAP - alternator adjusting

1шт.

62

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, , Bracket & strap Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

63

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

3шт.
