Запчасти Case 800 (066) - A42376 SOLENOID, (336BD) AND (336BDT) DIESEL ENGINES (06) - ELECTRICAL SYSTEMS

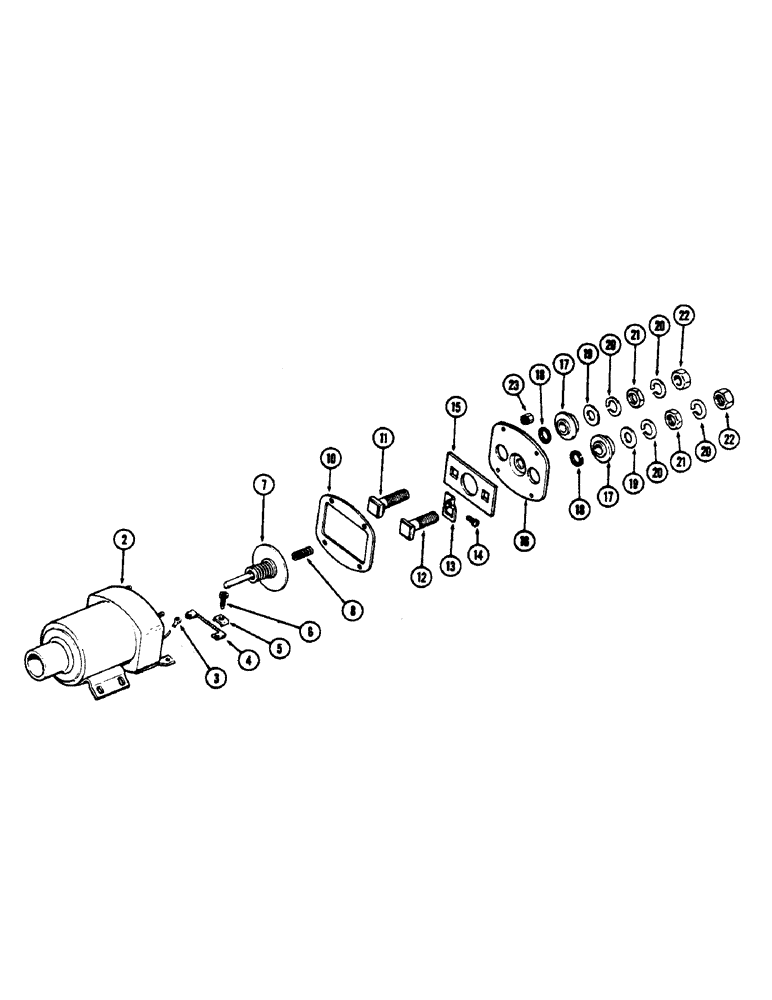

Схема запчастей Case 800 - (066) - A42376 SOLENOID, (336BD) AND (336BDT) DIESEL ENGINES (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A42376

SWITCH

SOLENOID ASSY. - (Delco-Remy #1119848), Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil, Includes: Ref. 3

1шт.

3

D30020

CLIP - terminal, coil lead

1шт.

4

A42408

ELECTRICAL WIRE

LEAD - ground

1шт.

5

A42407

CLAMP

CLIP - terminal

2шт.

6

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

2шт.

7

D32498

CONTACT

DISC ASSY. - contact

1шт.

8

A42411

VALVE SPRING

SPRING - contact disc return

1шт.

A42412

PLATE

ASSY., Includes: Ref. 10 - 22

1шт.

10

A42260

GASKET

- solenoid

1шт.

11

A42413

STUD

- battery term. (21/32" thread length)

1шт.

12

D32506

STUD

- starter term. (1-3/16" thread length)

1шт.

13

A42406

SUPPORT

- coil lead

1шт.

14

175-56

SCREW - support (#10 x 3/16" N.C., truss hd.) Slotted Truss Hd, #6-32 x 3/16"

1шт.

15

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

16

A42410

PLATE

- terminal

1шт.

17

A42409

BUSHING

- term. studs insulating

2шт.

18

D32510

BUSHING

- term. studs (1/2 x 11/16 x 3/32" rubber)

2шт.

19

A42404

X

WASHER - term. studs (1/2 x 7/8 x 1/32" metal)

2шт.

20

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

4шт.

21

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

23

D32500

NUT

ASSY. - plate to case studs

4шт.

Выбрано товаров: 23
