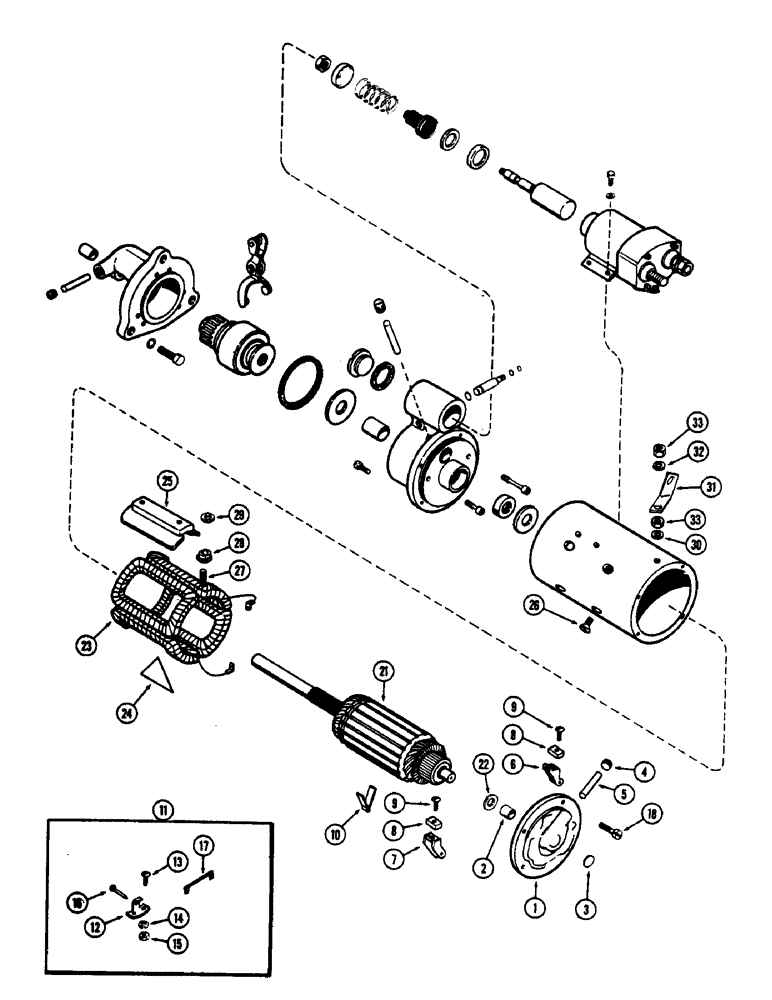

Запчасти Case 800 (062) - A15485 STARTER, (336BD) AND (336BDT) DIESEL ENGINES, USED PRIOR TO TRACTOR SERIAL NUMBER 9110276 (06) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

STARTER ASSY. - (Delco-Remy #1113370) (Order R26136 starter) (See Figure 60), Includes: Ref. 1 - 33

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Part Number

1шт.

1

R21559

FRAME

FRAME ASSY. - commutator end, Includes: Ref. 2 - 5

1шт.

2

R15020

BUSHING

BUSHING - (9/16 x 11/16 x 25/32")

1шт.

3

R15021

PLUG

PLUG - (3/4" expansion)

1шт.

4

221-1041

PLUG

PLUG - oil wick hole

1шт.

5

R15023

WICK

WICK - oil

1шт.

6

R15027

HOLDER

HOLDER - brush (Insulated)

2шт.

7

A40217

HOLDER

HOLDER - brush (Ground)

2шт.

8

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW ASSY. - brush attaching, w/lock washer (#8-32 x 13/16" fill. hd., self-tapping)

4шт.

10

R15025

SPRING

SPRING - brush tension

2шт.

11

R15029

BRUSH

BRUSH SUPPORT KIT, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

13

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - (#10 x 3/4" N.F., truss hd.)

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - #10 N.F. hex.

2шт.

16

R15035

PIN

PIN - brush holder

1шт.

17

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

18

R21578

SCREW

BOLT - commutator frame to starter housing

4шт.

21

A40909

ARMATURE

ARMATURE

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, comm. end (1/2 x 1 x 1/16")

1шт.

23

R21557

COIL ASSY.

COIL ASSY. - field

1шт.

24

A41977

RUBBER INSULATOR

INSULATION - coil terminal stud

1шт.

25

R15115

SHOE

SHOE - pole

4шт.

26

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" N.F., flat hd.)

8шт.

27

R15017

STUD

STUD - starter terminal

1шт.

28

R15010

BUSHING

BUSHING - terminal stud, insulating (In frame)

1шт.

29

A42010

WASHER

INSULATING - terminal stud (3/8 x 7/8 x 3/32")

1шт.

30

R15013

WASHER

WASHER - terminal stud (3/8 x 11/16 x 1/16")

1шт.

31

D32480

SPARE PART CONNECTOR - term., Serial Range: stud-solenoid

1шт.

32

192-11

WASHER - term. stud (3/8" lock)

1шт.

33

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Terminal stud Jam, 3/8"-16, G5

2шт.
