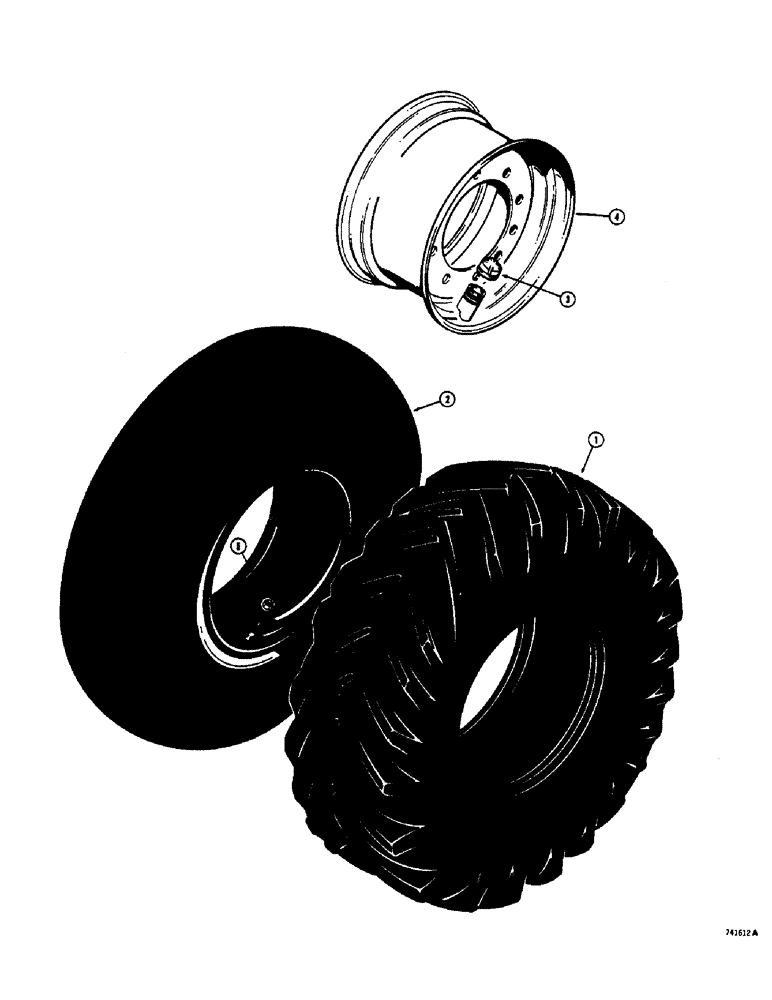

Запчасти Case 600 (250) - RIMS AND TIRES, USED ON MODELS WITH 18.4 X 26 - 10 PLY TIRES (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

TIRE - skidder, 18.4 x 26 - 10 ply

4шт.

2

REF

INSTRUCTION

TUBE - tire, 18.4 x 26

4шт.

3

221-530

CAP,2" NPT

PLUG - valve stem guard, square head, 2" N.P.T.

4шт.

4

L52191

RIM - tire

4шт.

5

L50592

NUT

- stem retaining

1шт.

1

REF

INSTRUCTION

TIRE - skidder, 18.4 x 24 - 10 ply, used on models with 18.4 x 34, 10 ply

4шт.

2

REF

INSTRUCTION

TUBE - tire, 18.4 x 34, used on models with 18.4 x 34, 10 ply

4шт.

3

221-530

CAP,2" NPT

PLUG - valve stem guard, square head, 2" N.P.T., used on models with 18.4 x 34, 10 ply tires

4шт.

4

L52192

RIM - tire, used on models with 18.4 x 34, 10 ply

4шт.

5

L50592

NUT

- stem retaining, used on models with 18.4 x 34, 10 ply tires

1шт.

1

REF

INSTRUCTION

TIRE - skidder, 23.1 x 26 - 10 ply, used on models with 23.1 x 26, 10 ply

4шт.

2

REF

INSTRUCTION

TUBE - tire, 23.1 x 26, used on models with 23.1 x 26, 10 ply

4шт.

3

221-530

CAP,2" NPT

PLUG - valve stem guard, square head, 2" N.P.T., used on models with 23.1 x 26, 10 ply tires

4шт.

4

L52193

RIM - tire, used on models with 23.1 x 26, 10 ply

4шт.

5

L50592

NUT

- stem retaining, used on models with 23.1 x 26, 10 ply tires

1шт.

1

REF

INSTRUCTION

TIRE - skidder, 24.5 x 32 - 10 ply, used on models with 24.5 x 32, 10 ply

4шт.

2

REF

INSTRUCTION

TUBE - tire, 24.5 x 32, used on models with 24.5 x 34, 10 ply

4шт.

3

221-530

CAP,2" NPT

PLUG - valve stem guard, square head, 2" N.P.T., used on models with 24.5 x 32, 10 ply tires

4шт.

4

L52194

RIM - tire, used on models with 24.5 x 32, 10 ply

4шт.

5

L50592

NUT

- stem retaining, used on models with 24.5 x 32, 10 ply tires

1шт.

1

REF

INSTRUCTION

TIRE - skidder, 28.1 x 26 - 10 ply, used on models with 28.1 x 26, 10 ply

4шт.

2

REF

INSTRUCTION

TUBE - tire, 28.1 x 26, used on models with 28.1 x 26, 10 ply

4шт.

3

221-530

CAP,2" NPT

PLUG - valve stem guard, square head, 2" N.P.T., used on models with 28.1 x 26, 10 ply tires

4шт.

4

L52195

RIM - tire, used on models with 28.1 x 26, 10 ply

4шт.

5

L50592

NUT

- stem retaining, use don models with 28.1 x 26, 10 ply tires

1шт.
