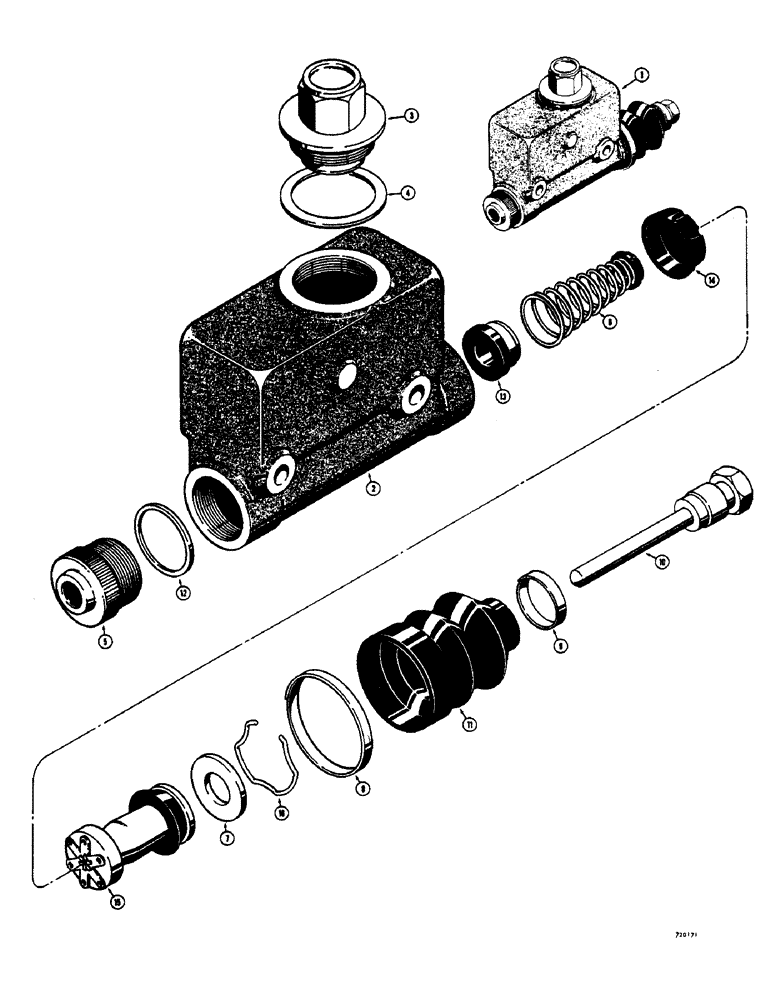

Запчасти Case 600 (198) - L49813 BRAKE MASTER CYLINDER (04) - UNDERCARRIAGE

1

L49813

MASTER CYLINDER - brake, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

3

L33806

PLUG

CAP - filler

1шт.

4

A19775

GASKET - filler cap

1шт.

5

L33807

HEAD - master cylinder

1шт.

6

L33810

SPRING - piston return

1шт.

7

L33813

PLATE - stop

1шт.

8

L33815

STRAP - retainer, large

1шт.

9

L33816

STRAP - retainer, small

1шт.

10

L33817

PUSH ROD - cylinder

1шт.

11

D42443

BOOT

- push rod

1шт.

L33818

KIT

- repair, cylinder, Includes: Ref. 12 - 16

1шт.

12

L33808

GASKET

- head

1шт.

13

L33809

VALVE - check

1шт.

14

L33811

CUP - primary

1шт.

15

L33812

PISTON ASSEMBLY - cylinder

1шт.

16

L33814

WIRE - lock

1шт.
