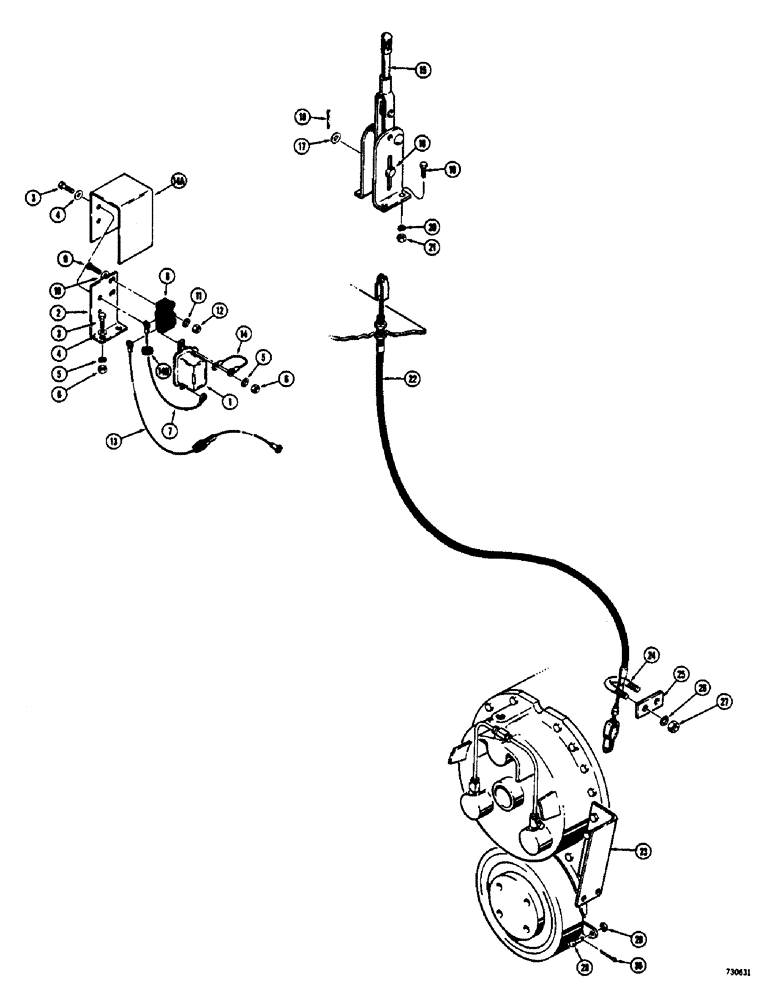

Запчасти Case 600 (196) - PARKING BRAKE AND WARNING BUZZER (04) - UNDERCARRIAGE

1

L15056

BUZZER

- warning, parking brake

1шт.

2

L53693

PLATE - buzzer mounting

1шт.

3

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

4

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

25-104

NUT,1/4"-20, G5

4шт.

7

L52503

ELECTRIC CABLE

WIRE - buzzer to micro switch

1шт.

8

L54683

SWITCH

- micro, parking brake buzzer

1шт.

9

173-267

RHMS - no. 6 - 32 N.C. x 1-1/4", switch mounting

2шт.

10

195-7

WASHER,#6

- plain, no. 6

4шт.

11

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

12

129-15

NUT,#6-32

2шт.

13

L53691

WIRE - micro switch to pressure switch

1шт.

14

L53692

ELECTRICAL WIRE

WIRE - ground, warning buzzer

1шт.

14a

L54338

GUARD - buzzer

1шт.

14b

A23870

GROMMET

- wire

1шт.

A17214

LEVER

ASSEMBLY - parking brake, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

16

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - clevis

1шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

1шт.

18

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

4шт.

22

L52063

CABLE

- parking brake, parts list Figure 242

1шт.

23

L52094

BRACKET - cable clamp

1шт.

24

O756BL

U-BOLT - cable clamp

1шт.

25

L49736

PLATE

- u-bolt

1шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 N.C.

2шт.

28

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16"

1шт.

29

95-7

WASHER,7/16"

- plain, 7/16"

1шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
