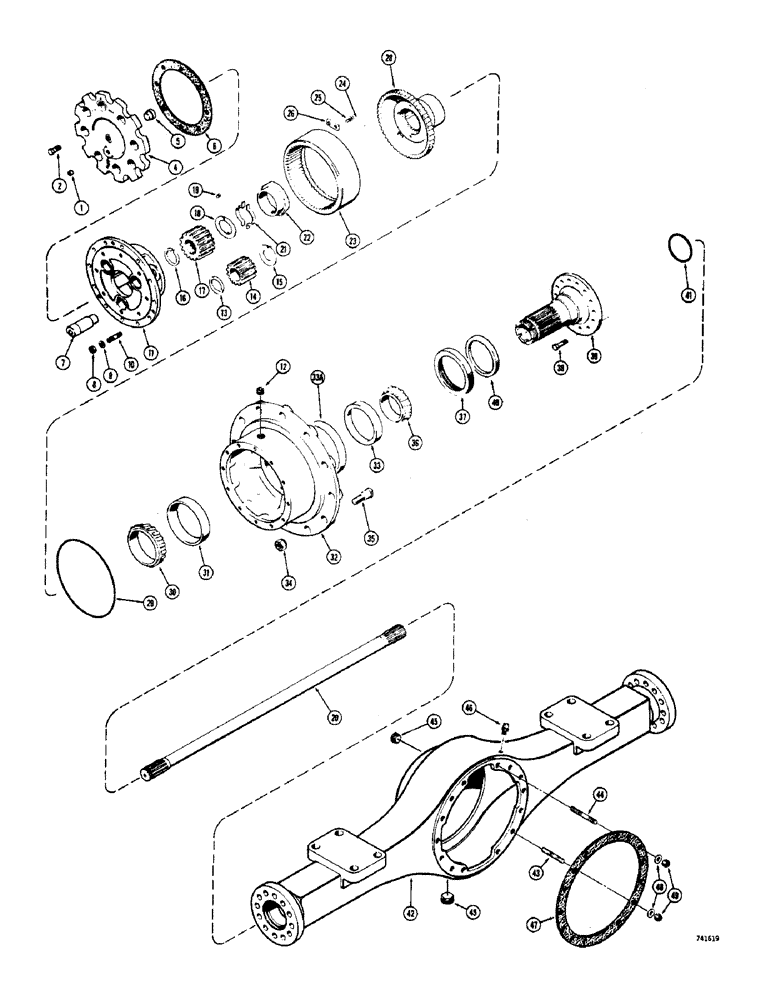

Запчасти Case 600 (166) - PR130 AXLE AND PLANETARY (03) - TRANSMISSION

L53490

AXLE ASSEMBLY - complete, PR 130 NXT, hi-traction, Includes: Ref. 1 - 49

1шт.

L52393

AXLE ASSEMBLY - complete, PR 130H, no-spin, Includes: Ref. 1 - 49

1шт.

1

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - fill, square socket head, 1/4" N.P.T.

2шт.

2

L30675

SCREW

BOLT - hex., special

16шт.

L32820

COVER

ASSEMBLY - planetary, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

5

A12980

BUTTON

- thrust

1шт.

6

A12910

GASKET,0.4mm Thk

- planetary cover

2шт.

7

L35026

SHAFT - planetary pinion gear

6шт.

8

129-551

SPECIAL NUT,9/16"-18, G8

- hex., 9/16" - 18 N.F.

24шт.

9

L35578

WASHER

- special, 9/16"

24шт.

10

D50996

STUD

- spider to hub, 9/16" - 18 N.F.

24шт.

11

L35035

U-JOINT SPIDER

SPIDER - planetary, uses 9/16" studs

2шт.

12

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - drain, magnetic, 3/4" N.P.T.

2шт.

13

A12904

WASHER

- pinion thrust, outer

6шт.

14

L35028

GEAR - pinion, planetary

6шт.

15

A40145

WASHER

- pinion thrust, inner

6шт.

16

A20222

RING, SNAP

SNAP RING - sun gear

2шт.

17

L35027

GEAR - sun, planetary

2шт.

A13103

WASHER

ASSEMBLY - thrust, Includes: Ref. 18 and 19

2шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

19

A13137

AXLE PIN

PIN - thrust washer

2шт.

20

L35036

SHAFT - axle, PR 130, 46" (1168 mm) long

2шт.

20

L35037

SHAFT - axle, PR 130, 44" (1118 mm) long

2шт.

21

A12953

RETAINER

LOCK - bearing nut

4шт.

22

A13104

BEARING LOCK NUT

NUT - hub bearing retaining

2шт.

23

L35029

GEAR - ring, planetary

2шт.

24

391-614

LOCKWIRE - bolt, no. 16, cut as required

8шт.

25

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- special, drilled head, uses lockwire

16шт.

25a

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- 5/16" - 18 N.C. x 3/4", grade 8, does not use lockwire

1шт.

26

A12914

LOCK ASSY

LOCK - ring gear hub

8шт.

28

L33735

HUB

ASSEMBLY - planetary ring gear

2шт.

29

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- spider to hub

2шт.

30

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

CONE - bearing, tapered roller type, outer

2шт.

L35022

HUB

ASSEMBLY - rim, uses 9/16" studs, Includes: Ref. 31 - 33

2шт.

31

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

CUP - bearing tapered roller type, outer

1шт.

32

NSS

NOT SOLD SEPARAT

HUB - rim

1шт.

33

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - bearing, tapered roller type, inner

1шт.

33a

L35024

GUARD - seal, hub

2шт.

34

A12522

WHEEL NUT

- stud, rim mounting

24шт.

35

A13112

STUD

STUD - wheel, Serial Range: rim-hub

24шт.

36

A63217

ROLLER BEARING,100 mm ID x 160 mm OD x 41.20 mm

CONE - bearing, tapered roller type, inner

2шт.

37

L35032

OIL SEAL,126.09mm ID x 158.95mm OD x 15.37mm Thk

SEAL - oil, hub bearing

2шт.

38

28-930

BOLT,Hex, 9/16" - 18 x 1-7/8", Gr 8

- hex., 9/16" - 18 N.F. x 1-7/8"

24шт.

39

L35034

SPINDLE ASSEMBLY - planetary, Includes: Ref. 40

2шт.

40

L35266

GUARD ASSY.

GUARD - oil seal

1шт.

41

A18280

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

- spindle to axle housing

2шт.

L35021

HOUSING ASSEMBLY - axle, Includes: Ref. 42 - 45

1шт.

42

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

43

A13130

STUD

- carrier to axle housing, short

10шт.

44

L30673

STUD

- carrier to axle housing, long

4шт.

45

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- drain and filter, square socket head, 3/4" N.P.T.

2шт.

46

A12928

BREATHER

- axle housing

1шт.

47

A12943

GASKET

-, Serial Range: carrier-housing

1шт.

48

L33864

WASHER

- special

14шт.

49

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex., lock, 1/2" - 20 N.F.

14шт.
