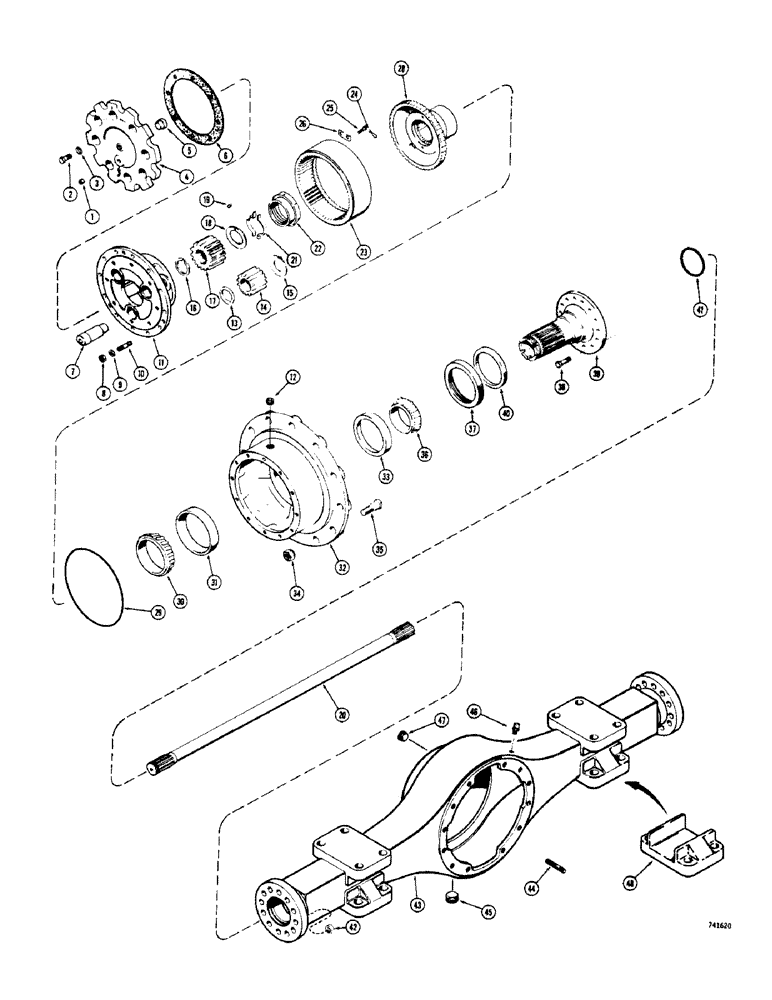

Запчасти Case 600 (154) - PR75 AXLE AND PLANETARY (03) - TRANSMISSION

L53489

AXLE ASSEMBLY - complete, PR 75, standard hi-traction, when stock is exhausted, order L57778 axle assembly for service, Includes: Ref. 1 - 48

1шт.

L57778

AXLE ASSEMBLY - complete, hi-traction, Includes: Ref. 1 - 48

1шт.

L52395

AXLE ASSEMBLY - complete, PR 75, option no-spin, when stock is exhausted, order L57777 axle assembly for service, Includes: Ref. 1 - 48

1шт.

L57777

AXLE ASSEMBLY - complete, no-spin, Includes: Ref. 1 - 48

1шт.

1

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - fill, square socket head, 1/4" N.P.T.

2шт.

2

26-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 8

- hex., 7/16" - 14 N.C. x 1-1/8"

16шт.

3

D47367

WASHER

- special

16шт.

L32820

COVER

ASSEMBLY - planetary, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

5

A12980

BUTTON

- thrust

1шт.

6

A12910

GASKET,0.4mm Thk

- planetary cover

2шт.

7

A40146

SHAFT

- planetary pinion gear

6шт.

8

129-551

SPECIAL NUT,9/16"-18, G8

- hex., 9/16" - 18 N.F., if used

24шт.

9

92-9

BEARING WASHER,9/16"

If used 9/16"

24шт.

10

D50996

STUD

- spider to hub, 9/16" - 18 N.F., if used

24шт.

11

D50997

SPIDER - planetary, uses 9/16" studs

2шт.

12

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - drain, magnetic, 3/4" N.P.T.

2шт.

13

A12904

WASHER

- pinion thrust, outer

6шт.

14

A12901

GEAR

- pinion, planetary

6шт.

15

A40145

WASHER

- pinion thrust, inner

6шт.

16

A20222

RING, SNAP

SNAP RING - sun gear

2шт.

17

A12905

GEAR

- sun, planetary

2шт.

A13103

WASHER

ASSEMBLY - thrust, Includes: Ref. 18 and 19

2шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

19

A13137

AXLE PIN

PIN - thrust washer

2шт.

20

L35011

SHAFT - axle, PR 75, 45" long

1шт.

20

L35012

SHAFT - axle, PR 75, 47" long

1шт.

21

A12953

RETAINER

LOCK - bearing nut

4шт.

22

A13104

BEARING LOCK NUT

NUT - hub bearing retaining

2шт.

23

A12911

GEAR

- ring, planetary

2шт.

24

391-614

LOCKWIRE - bolt, no. 16, 6" long, cut as required, if used

8шт.

25

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- special, drilled head, uses lockwire

16шт.

25a

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex., 5/16" - 18 N.C. x 3/4", grade 8, used without lockwire, not shown

16шт.

26

A12914

LOCK ASSY

LOCK - ring gear hub

8шт.

28

A12913

HUB CAP

HUB ASSEMBLY - planetary ring gear

2шт.

29

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- spider to hub

2шт.

30

A12915

ROLLER BEARING,4.25" ID x 1.375"

CONE - bearing, tapered roller type, outer

2шт.

L35215

HUB ASSY.

HUB ASSEMBLY - rim, uses 9/16" studs, when stock is exhausted, order L35851 hub assembly for service, Includes: Ref. 31 - 33

2шт.

L35851

HUB ASSY.

HUB ASSEMBLY - rim, uses 9/16" studs, Includes: Ref. 31 - 33

2шт.

31

A12916

BEARING CUP

CUP - bearing, tapered roller type, outer

1шт.

32

NSS

NOT SOLD SEPARAT

HUB - rim

1шт.

33

A14985

BEARING CUP

CUP - bearing, tapered roller type, inner

1шт.

34

A12522

WHEEL NUT

- stud, rim mounting

24шт.

35

D47370

STUD - wheel, Serial Range: rim-hub

24шт.

36

A14984

ROLLER BEARING

CONE - bearing, tapered roller type, inner

2шт.

37

D47371

SEAL

- oil, hub bearing

2шт.

38

28-942

BOLT,Hex, 9/16" - 18 x 2-5/8", Gr 8

- hex., 9/16" - 18 N.F. x 2-5/8"

24шт.

L35852

SPINDLE AND GUARD ASSEMBLY - planetary, L53489 standard hi-traction axle only, Includes: Ref. 39 and 40

2шт.

39

D47378

SPINDLE - planetary

1шт.

40

L35266

GUARD ASSY.

GUARD - oil seal

1шт.

NSS

NOT SOLD SEPARAT

SPINDLE AND GUARD ASSEMBLY - planetary, L52395 optional no-spin axle only, Includes: Ref. 39 and 40

2шт.

39

D47378

SPINDLE - planetary

1шт.

40

D47379

GUARD

- oil seal

1шт.

NSS

NOT SOLD SEPARAT

SPINDLE AND GUARD ASSEMBLY - planetary, L57777 and L57778 axle assemblies only, Includes: Ref. 39 and 40

2шт.

39

L35852

SPINDLE - planetary

1шт.

40

L35266

GUARD ASSY.

GUARD - oil seal

1шт.

41

A18280

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

- spindle to axle housing

2шт.

42

131-11

NUT,9/16"-18, GB

LOCK, 9/16"-18, GB

24шт.

L35007

HOUSING ASSEMBLY - axle, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

44

A18207

STUD

- carrier to axle housing

10шт.

45

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- drain, square socket head, 3/4" N.P.T.

1шт.

46

A12928

BREATHER

- axle housing

1шт.

47

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- filler, square socket head, 3/4" N.P.T.

1шт.

48

L35404

PAD - axle mounting, spring seat

4шт.
