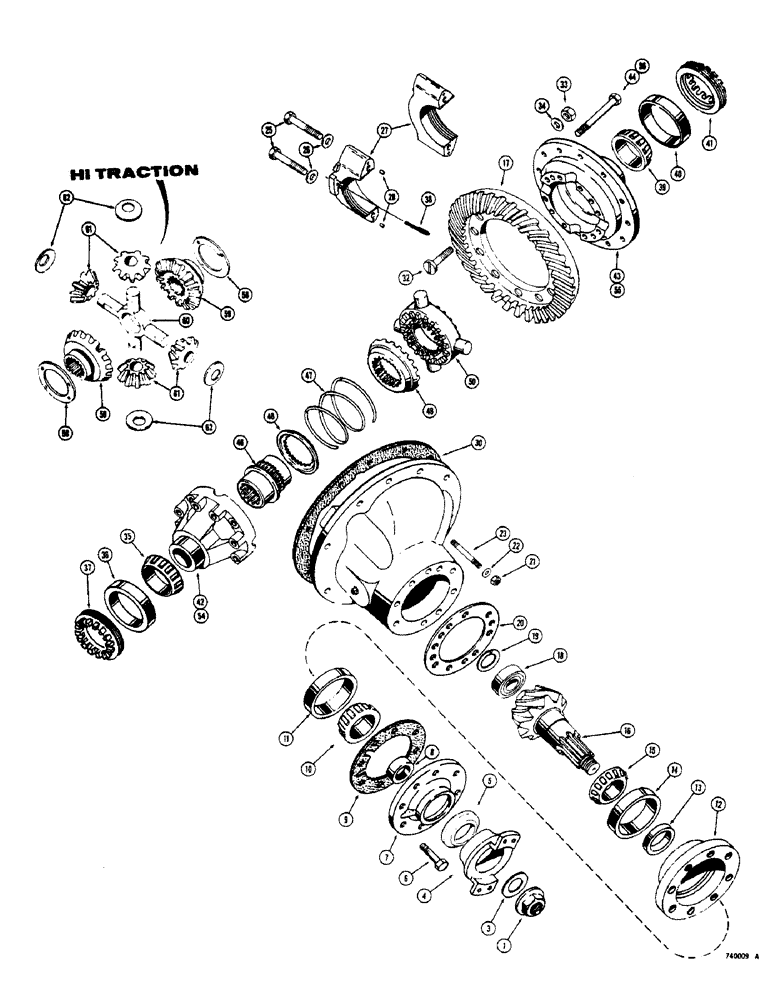

Запчасти Case 600 (150) - PR75 AXLE DIFFERENTIAL (03) - TRANSMISSION

L57778

AXLE ASSEMBLY - complete, PR 75, standard hi-traction, Includes: Ref. 1 - 62

1шт.

P/N L57778 and L57777, axle assy., were factory installed on tractor S.N. 9113864 through 9113868, 9113873, 9113879 through 9113882, 9113890, 9113904, 9113926 and after.

1шт.

L57777

AXLE ASSEMBLY - complete, PR 75, optional no-spin, Includes: Ref. 1 - 62

1шт.

P/N L57778 and L57777, axle assy., were factory installed on tractor S.N. 9113864 through 9113868, 9113873, 9113879 through 9113882, 9113890, 9113904, 9113926 and after.

1шт.

L35971

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - L57777 axle only, Includes: Ref. 1 - 62

1шт.

L35972

CARRIER

DIFFERENTIAL ASSEMBLY - L57778 axle only, Includes: Ref. 1 - 62

1шт.

1

L35091

NUT

NUT - yoke to pinion shaft

1шт.

3

A13124

WASHER

- special

1шт.

L35013

YOKE

ASSEMBLY - drive shaft, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A18189

SLINGER

- oil

1шт.

6

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

L35933

COVER ASSY

COVER ASSEMBLY - pinion shaft, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

A18185

OIL SEAL

- oil

1шт.

9

L33674

GASKET

-, Serial Range: cover-cage

1шт.

L35928

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 10 - 15

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller type

1шт.

11

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller type

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft bearing

1шт.

13

A18358

SPACER

- bearing, .172" thick

1шт.

13

A18359

SPACER

- bearing, .173" thick

1шт.

13

A18360

SPACER

- bearing, .174" thick

1шт.

13

A18361

SPACER

- bearing, .175" thick

1шт.

13

A18362

RING

SPACER - bearing, .176" thick

1шт.

13

A18363

SPACER

- bearing, .177" thick

1шт.

13

A18364

SPACER

- bearing, .183" thick

1шт.

13

A18365

SPACER

- bearing, .189" thick

1шт.

13

A18366

SPACER

- bearing, .195" thick

1шт.

13

A18367

SPACER

- bearing, .201" thick

1шт.

L30395

BEARING

CUP AND CONE - tapered roller bearing, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

CUP - bearing, tapered roller type

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - bearing, tapered roller type

1шт.

D47348

GEAR

SET - drive and pinion, matched set, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

18

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion, ball type

1шт.

19

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

20

L33676

DISC

SHIM - bearing cage, .003" thick

1шт.

20

L33677

DISC

SHIM - bearing cage, .005" thick

1шт.

20

L33678

DISC

SHIM - bearing cage, .010" thick

1шт.

21

129-530

NUT,7/16"-20, G8

10шт.

22

D47367

WASHER

- special, 7/16"

10шт.

23

A18207

STUD

- carrier to axle housing

10шт.

L35925

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

25

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" - 11 N.C. x 3-1/4"

4шт.

26

L30737

WASHER

- special

4шт.

27

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

28

A15443

DOWEL

- cap

4шт.

30

A18210

X

GASKET - carrier to axle housing, when stock is exhausted, order L35977 gasket for service

1шт.

30

L35977

GASKET

- carrier to axle housing

1шт.

31

L35045

ROLLER BEARING

1шт.

32

L35919

BOLT

- special, drive gear to differential case

12шт.

33

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., self-locking, 1/2" x 20 N.C.

12шт.

34

D47366

WASHER

- special

12шт.

35

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing tapered roller type, R.H. rear - L.H. front

1шт.

36

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, tapered roller type, R.H. rear - L.H. front

1шт.

37

A18194

RING

- bearing adjusting R.H. rear - L.H. front

1шт.

38

A18196

HARDWARE

PIN - cotter, special

2шт.

39

A18173

ROLLER BEARING

CONE - bearing, tapered roller type, L.H. rear - R.H. front

1шт.

40

L35931

BEARING CUP

CUP - bearing, tapered roller type, L.H. rear - R.H. front

1шт.

41

A18195

RING

- bearing adjusting, L.H. rear - R.H. front

1шт.

41a

221-835

PLUG

- pipe, square head, 3/4" N.P.T.

1шт.

D47420

DIFFERENTIAL CASE AND GEAR ASSEMBLY - optional no-spin L57777 axle only, Includes: Ref. 42 - 44

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

43

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

44

L34062

BOLT

- special

8шт.

L35996

TOGGLE

NO-SPIN ASSEMBLY - differential, Includes: Ref. 46 - 51

1шт.

46

L35999

PINION

GEAR - differential, side

2шт.

47

L36000

VALVE SPRING

SPRING - differential

2шт.

48

A44688

DIFFERENTIAL

RETAINER - spring

2шт.

49

L35998

CLUTCH ASSEMBLY

CLUTCH AND HOLDOUT - driven

2шт.

50

RESERVED

1шт.

51

L35997

TOGGLE

SPIDER AND CAM ASSEMBLY - differential

1шт.

A44686

SNAP RING - differential

1шт.

NSS

NOT SOLD SEPARAT

SPIDER - differential

1шт.

NSS

NOT SOLD SEPARAT

CAM - differential

1шт.

L34022

TRANSMISSION

DIFFERENTIAL CASE AND GEAR ASSEMBLY - standard hi-traction, L53489 axle only, Includes: Ref. 54 - 62

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, Includes: Ref. 54 - 56

1шт.

54

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

55

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

56

L34062

BOLT

- special

8шт.

58

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear

2шт.

59

D66304

GEAR

- differential, side

2шт.

60

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

61

A18175

PINION

GEAR - differential pinion

4шт.

62

A18176

DISC

WASHER - thrust

4шт.
