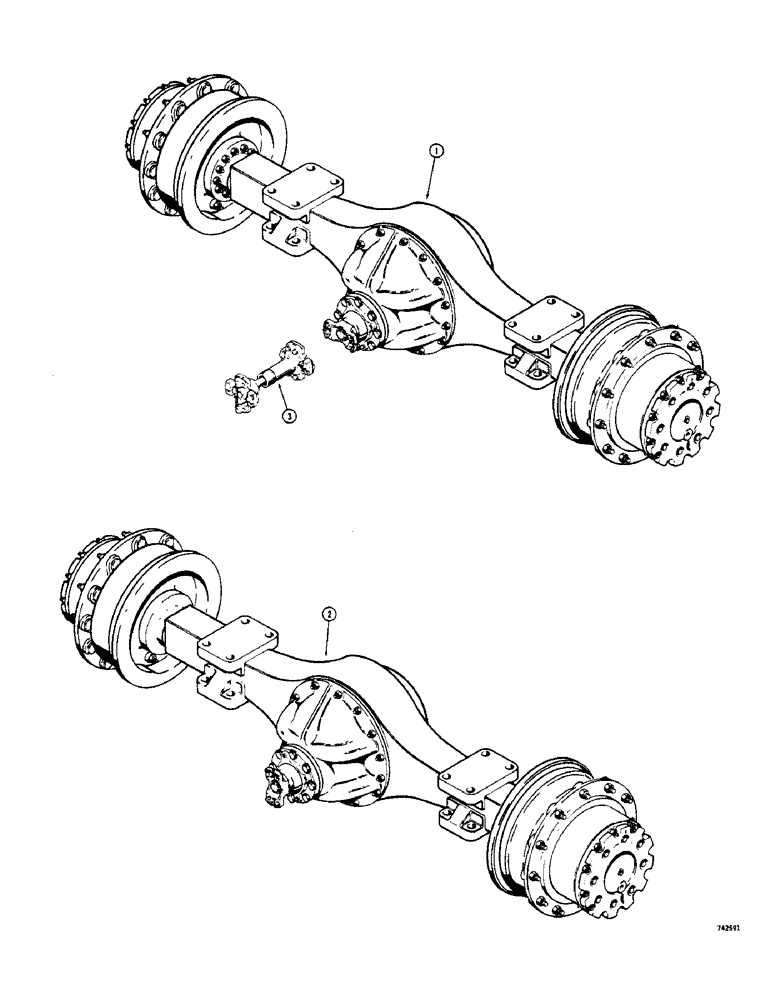

Запчасти Case 600 (134) - FRONT AXLES AND DRIVE SHAFTS (03) - TRANSMISSION

1

L53489

1шт.

AXLE ASSEMBLY - Rockwell Standard PR-75-NX-111, hi-traction, standard on 600 & 800 Skid Kings only, parts list Figs. 144 and 154, when stock is exhausted, order L57778 axle assembly for service, used on units before S.N. 9113926, except 9113864 - 9113868, 9113873, 9113879 - 9113882, 9113890 & 9113904

1шт.

1

L57778

1шт.

AXLE ASSEMBLY - Rockwell Standard PR-75-NX-126, hi-traction with modular housing, standard on 600 and 800 Skid Kings, used on units with S.N. 9113864 thru 9113868, 9113873, 9113879 thru 9113882, 9113890, 9113904, 9113926 and after, parts list Figures 150 and 154

1шт.

1

L52395

1шт.

AXLE ASSEMBLY - Rockwell Standard PR-75-NX-105, no-spin, optional on 600 and 800 Skid Kings only, parts list Figures 144 and 154, when stock is exhausted, order L57777 axle assembly for service, used before 9113926 except 9113864 thru 9113868, 9113873, 9113879 thru 9113882, 9113890 and 9113904

1шт.

1

L57777

AXLE ASSEMBLY - Rockwell Standard PR-75-NX-123, no-spin, optional on 600 and 800 Skid Kings only, parts list Figures 150 and 154, used on units 9113864 thru 9113868, 9113873, 9113879, thru 9113882, 9113890, 9113904, 9113926 and after

1шт.

1

L53490

AXLE ASSEMBLY - Rockwell Standard PR-130-NXT, hi-traction, standard on 825 Skid King only, parts list Figures 158, 164 and 166

1шт.

2

L59524

1шт.

AXLE ASSEMBLY - Rockwell Standard P.R.M. 130 with 22.2 to 1 ratio, hi-traction with modular housing design, standard on 825 Skid King, optional on 800 Skid King and standard on 800 Skid Kings equipped with model 37 grapple, parts list on pages 170 thru 178

1шт.

1

L52393

AXLE ASSEMBLY - Rockwell Standard PR130H, no-spin, optional on 825 Skid King only, parts list page Figures 158 and 166

1шт.

2

L59525

AXLE ASSEMBLY - moduler housing, Rockwell Standard PRM-130 with 22.2 to 1 ratio, no-spin, optional on 600, 800 and 825 Skid Kings only, parts list on Figures 170 thru 178

1шт.

3

L49260

DRIVE SHAFT ASSEMBLY - front axle, used on 600 and 800 Skid Kings only, parts list Figure 138

1шт.

3

L52387

DRIVE SHAFT ASSEMBLY - front axle, standard on 825 Skid King and optional on 800 Skid King, parts list on Figure 138

1шт.
