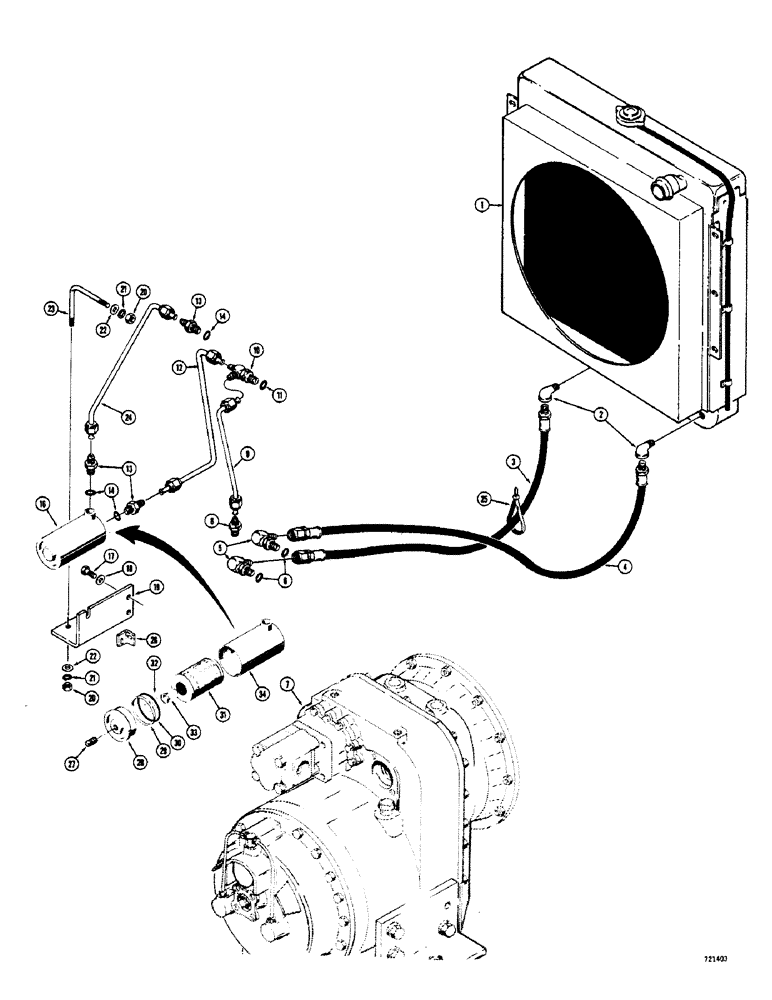

Запчасти Case 600 (128) - TRANSMISSION HYDRAULIC SYSTEM (03) - TRANSMISSION

1

REF

INSTRUCTION

RADIATOR - engine cooling, see Figure 12 for related components

1шт.

2

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

2шт.

3

L53219

HOSE - radiator cooler tank to transmission, 66" (1676 mm) long

1шт.

4

L48529

HOSE

- return, transmission to radiator, 68" (1727 mm) long

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees, Incl. Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

REF

INSTRUCTION

TRANSMISSION - soft shift, see figures 106 - 122 for parts

1шт.

8

218-1028

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/8"-18, NPTF

CONNECTOR - male, straight

1шт.

9

L52408

TUBE - transmission to tee 0.75" OD x 13.3, 7.54" L

1шт.

10

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

L52406

TUBE - tee to filter 0.75" OD x 13.8, 7.5" L

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 14

3шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

L47141

NO LONGER SERVICED

FILTER - hydraulic transmission oil, parts list below

1шт.

17

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

18

NLS

NO LONGER SERVICED

- special

2шт.

19

L52432

BRACKET - filter mounting

1шт.

20

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

95-6

WASHER,3/8"

- plain, 3/8"

2шт.

23

L52433

CLAMP

-, Serial Range: filter-bracket

1шт.

24

L52404

PISTON ROD,0.75" OD

TUBE - return, filter to transmission

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose suspending

1шт.

26

L54032

BRACKET - transmission filter support

1шт.

L47141

NO LONGER SERVICED

FILTER ASSEMBLY - transmission oil, L47141, Includes: Ref. 27 - 34

1шт.

27

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head, 1/8" N.P.T., L47141 transmission oil filter

1шт.

28

A60765

CAP

- filter, L47141 transmision oil

1шт.

A61234

HYDRAULIC OIL FILTER

ELEMENT REPLACEMENT KIT - transmission oil filter L47141, Includes: Ref. 29 - 31

1шт.

29

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Cap seal L47141 Transmission oil filter

1шт.

30

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

CAP, L47141 transmission oil filter

1шт.

31

NSS

NOT SOLD SEPARAT

ELEMENT - filter, L47141 transmission oil

1шт.

32

D31212

SPRING

- retaining, relief valve, L47141 transmission oil filter

1шт.

33

D37207

VALVE

- relief, L47141 transmission oil filter

1шт.

34

A60767

BODY

- filter, L47141 transmission oil filter

1шт.
