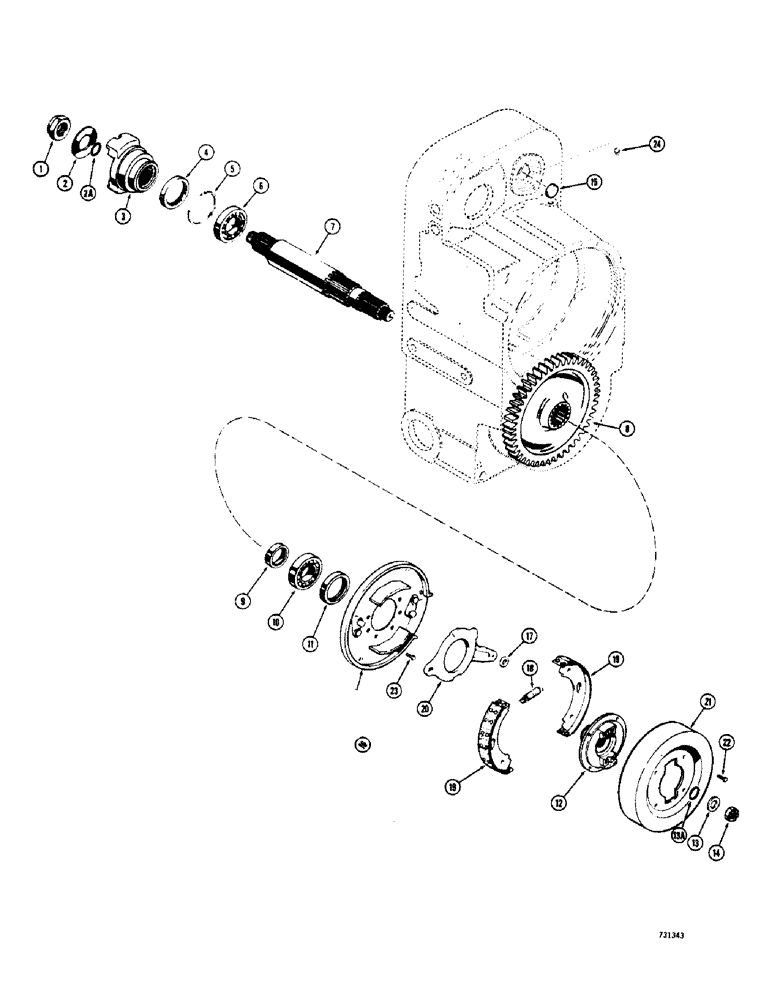

Запчасти Case 600 (120) - TRANSMISSION, AXLE OUTPUT SHAFT AND PARKING BRAKE (03) - TRANSMISSION

L49048

TRANSMISSION ASSEMBLY - soft shift, complete, used on 600 Skid Kings only, Includes: Ref. 1 - 24

1шт.

L49047

TRANSMISSION ASSEMBLY - soft shift, complete, used on 800 and 825 Skid King only, Includes: Ref. 1 - 24

1шт.

1

L31164

BEARING

NUT - flange washer retaining

1шт.

2

D47424

WASHER

- flange, retaining, when stock is exhausted, order (1) D47424 washer and (1) D71437 o-ring for service

1шт.

2

D47424

WASHER

- flange retaining

1шт.

2a

D71437

O-RING,1.475" ID x 1.895" OD

1шт.

3

L36064

FLANGE

- transmission to rear axle drive shaft

1шт.

4

D47485

SEAL

- oil

1шт.

5

D47486

SNAP RING

SNAP RING - internal type

1шт.

6

L31013

BALL BEARING

- ball type

1шт.

7

L36058

SHAFT

- output, main, axle drive

1шт.

8

D47487

GEAR

- transfer

1шт.

9

D51506

BUSHING

SPACER - bearing

1шт.

10

D47489

ROLLER BEARING

BEARING - ball type

1шт.

11

D47485

SEAL

- oil

1шт.

12

D71435

FLANGE

- transmission to front axle drive shaft

1шт.

13

D47424

WASHER

- flange retaining, when stock is exhausted, order (1) D7424 washer and (1) D71437 o-ring for service

1шт.

13

D47424

WASHER

- flange retaining

1шт.

13a

D71437

O-RING,1.475" ID x 1.895" OD

1шт.

14

L31165

NUT

- flange washer retaining

1шт.

15

L33620

PLUG

- housing

1шт.

D46610

BRAKE ASSEMBLY - parking, Includes: Ref. 16 - 21

1шт.

16

D47522

PLATE - backing

1шт.

17

L33579

ROLLER

- brake

1шт.

18

A18134

SPRING

- brake shoe return

2шт.

19

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

D47501 parking brake lining kit is available for service replacement. Includes (2) NSS linings and (24) L33939 rivets. For complete transmission see Figures 106 - 126

1шт.

20

D47526

LEVER

- brake shoe

1шт.

21

D47527

DRUM

- brake

1шт.

22

121-212

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 5/8", Gr 8

BOLT - hex., 3/8" - 24 N.C. x 5/8"

4шт.

23

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

BOLT - hex., 1/2" - 13 N.C. x 7/8"

4шт.

24

L33981

PLUG

- cup

1шт.
