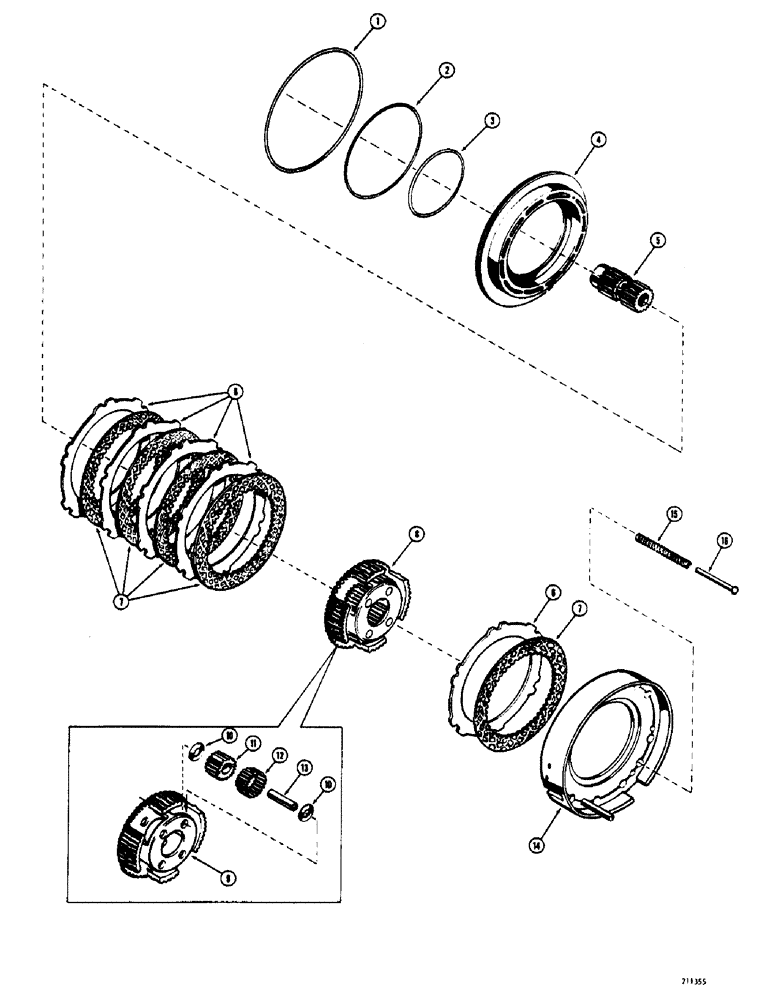

Запчасти Case 600 (116) - TRANSMISSION, REVERSE CLUTCH AND PLANETARY (03) - TRANSMISSION

L49048

TRANSMISSION ASSEMBLY - soft shift, complete, used on 600 Skid King only, Includes: Ref. 1 - 16

1шт.

L49047

TRANSMISSION ASSEMBLY - soft shift, complete, used on 800 and 825 Skid Kings only, Includes: Ref. 1 - 16

1шт.

1

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

- ring type, large

1шт.

2

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

- ring type, medium

1шт.

3

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- ring type, small

1шт.

4

L33969

PISTON

- reverse clutch

1шт.

5

L32404

GEAR

- sun, forward and reverse clutch

1шт.

6

L33958

PLATE

- clutch, external spline

5шт.

7

L33970

PLATE

- clutch, internal spline

5шт.

8

L35636

CARRIER

ASSEMBLY - reverse clutch planetary, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER AND HUB - reverse clutch planetary

1шт.

10

A12700

WASHER

- thrust

8шт.

11

L35993

GEAR

PINION SET - planetary, matched set of 4

1шт.

12

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

13

A12705

SPINDLE

- pinion

4шт.

14

L33973

ANCHOR

AND PIN ASSEMBLY - forward and reverse clutch

1шт.

15

A55806

SPRING

- clutch piston return

12шт.

16

D47468

PIN

- spring guide

12шт.
