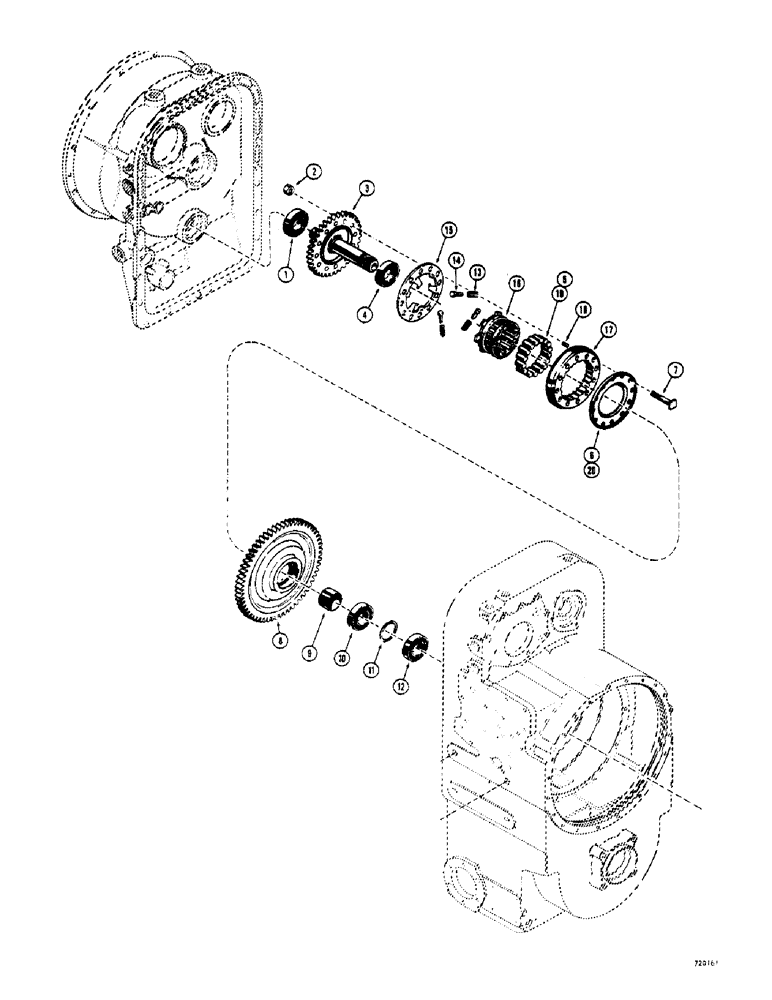

Запчасти Case 600 (112) - TRANSMISSION, TURBINE DRIVEN GEARS AND FREEWHEEL UNIT (03) - TRANSMISSION

L49048

TRANSMISSION ASSEMBLY - soft shift, complete, used on 600 Skid King only, Includes: Ref. 1 - 20

1шт.

L49047

TRANSMISSION ASSEMBLY - soft shift, complete, used on 800 and 825 Skid Kings only, Includes: Ref. 1 - 20

1шт.

1

D47572

BEARING

- ball type

1шт.

2

L31163

SPECIAL NUT

- hex., lock, special

12шт.

3

D50276

GEAR AND SHAFT ASSEMBLY - driven, second turbine

1шт.

4

D47573

BALL BEARING

BEARING - ball type

1шт.

5

L31161

ROLLER

- freewheel, also included in L35003 clutch kit

15шт.

6

D47454

RESERVOIR

COLLECTOR PLATE - lube, also included in L35003 overrunning clutch kit

1шт.

7

D47455

SQUARE BOLT

- special

12шт.

8

D47456

GEAR

- driven, first turbine, used before transmission S.N. 82063

1шт.

8

D77491

GEAR

- driven, first turbine, used on transmission S.N. 82063 and after

1шт.

9

D48331

BUSHING

SPACER - bearing

1шт.

10

D47572

BEARING

- ball type

1шт.

11

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER - bearing

1шт.

12

D47572

BEARING

- ball type

1шт.

L35003

KIT

- overrunning clutch, Includes: Ref. 13 - 20

1шт.

13

D48863

SPRING

- plate

3шт.

14

D47644

PIN

- spring positioning

3шт.

15

L33962

PLATE

- spring

1шт.

16

L33963

NEEDLE BEARING CAGE

CAGE - freewheel roller

1шт.

L33964

CAM

ASSEMBLY - freewheel, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

18

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

19

L31161

ROLLER

- free wheel

15шт.

20

D47454

RESERVOIR

COLLECTOR PLATE - lube

1шт.
