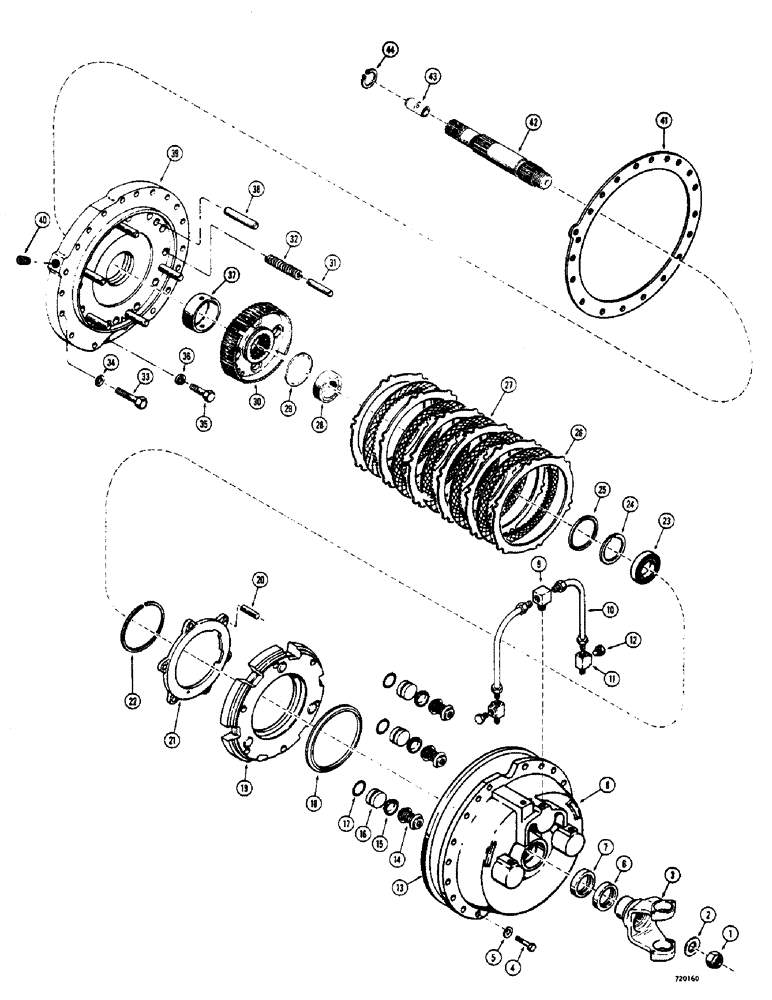

Запчасти Case 600 (110) - TRANSMISSION, REAR COVER AND BRAKE (03) - TRANSMISSION

L49048

TRANSMISSION ASSEMBLY - soft shift, complete, used on 600 Skid King only, Includes: Ref. 1 - 44

1шт.

L49047

TRANSMISSION ASSEMBLY - soft shift, complete, used on 800 and 825 Skid Kings only, Includes: Ref. 1 - 44

1шт.

1

131-465

LOCK NUT,7/8"-14, G8

NUT - flange retaining

1шт.

2

D47422

WASHER - flange retaining

1шт.

3

L33961

FLANGE - transmission to winch drive shaft

1шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex., 3/8" - 16 N.C. x 2-3/4"

18шт.

5

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

18шт.

D46607

COVER ASSEMBLY - transmission, rear, Includes: Ref. 6 - 8

1шт.

6

D47519

SHIELD - dust

1шт.

7

D47518

SEAL

- oil, output shaft

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - transmission, rear

1шт.

9

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- special

1шт.

10

D47482

TUBE

- brake system

2шт.

11

222-1076

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

FITTING - special, brake system

2шт.

12

D47484

PLUG

- special, when stock is exhausted, order 222-1062 plug for service

2шт.

12

222-1062

PLUG,7/16"-24, Inv Fl

1/4" tube 7/16"-24, Inv Fl

2шт.

13

D47480

SEAL - ring type, rear cover

1шт.

14

D47508

SPRING

AND EXPANDER ASSEMBLY - brake

3шт.

15

D47507

CUP

- brake piston

3шт.

16

D47506

PISTON

- brake actuator

3шт.

17

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - ring type, piston

3шт.

18

D47504

SEAL

- ring type

1шт.

D46612

PLATE ASSEMBLY - pressure brake, Includes: Ref. 19 - 21

1шт.

D47502 brake kit is available for service replacement. For complete transmission see Figures 106 - 126

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - pressure, brake

1шт.

20

D47530

PIN - spring

6шт.

21

NSS

NOT SOLD SEPARAT

RING - plate adjusting

1шт.

22

D47499

SNAP RING - external type

1шт.

23

L30286

BEARING

- ball type

1шт.

24

A12663

RING

SNAP RING - bearing retaining

1шт.

25

D47477

SEAL

RING - seal, step joint

1шт.

26

L33958

PLATE

- clutch, external spline

6шт.

27

D47497

COVER PLATE

PLATE - clutch, internal spline

5шт.

28

D47572

BEARING

- ball type

1шт.

29

D47479

RING, SNAP

SNAP RING - hub, inner

1шт.

30

D47495

HUB

- brake, internal

1шт.

31

D47494

PIN - return spring, used before transmission S.N. 65786

12шт.

31

D72790

PIN - return spring, used on transmission S.N. 65786 and after

12шт.

32

D47493

SPRING - brake return, used before transmission S.N. 65786

12шт.

32

L31169

SPRING

- brake return, used on transmission S.N. 65786 and after

12шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

D46611

DIAPHRAGM

ASSEMBLY - brake, used before transmission S.N. 65786

1шт.

D72780

PIN

DIAPHRAGM ASSEMBLY - brake, used on transmission S.N. 65786 and after, Includes: Ref. 37 - 40

1шт.

37

D47528

SLEEVE

- diaphragm

1шт.

38

NSS

NOT SOLD SEPARAT

PIN - diaphragm

6шт.

39

NSS

NOT SOLD SEPARAT

DIAPHRAGM - brake

1шт.

40

NSS

NOT SOLD SEPARAT

PLUG - diaphragm

1шт.

41

D47576

GASKET

- brake diaphragm

1шт.

D46606

SHAFT ASSEMBLY - transmission, winch drive, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

SHAFT - transmission, output, winch drive

1шт.

43

D47515

PIN - shaft

1шт.

44

L32407

RING

SNAP RING - hub, outer

1шт.
