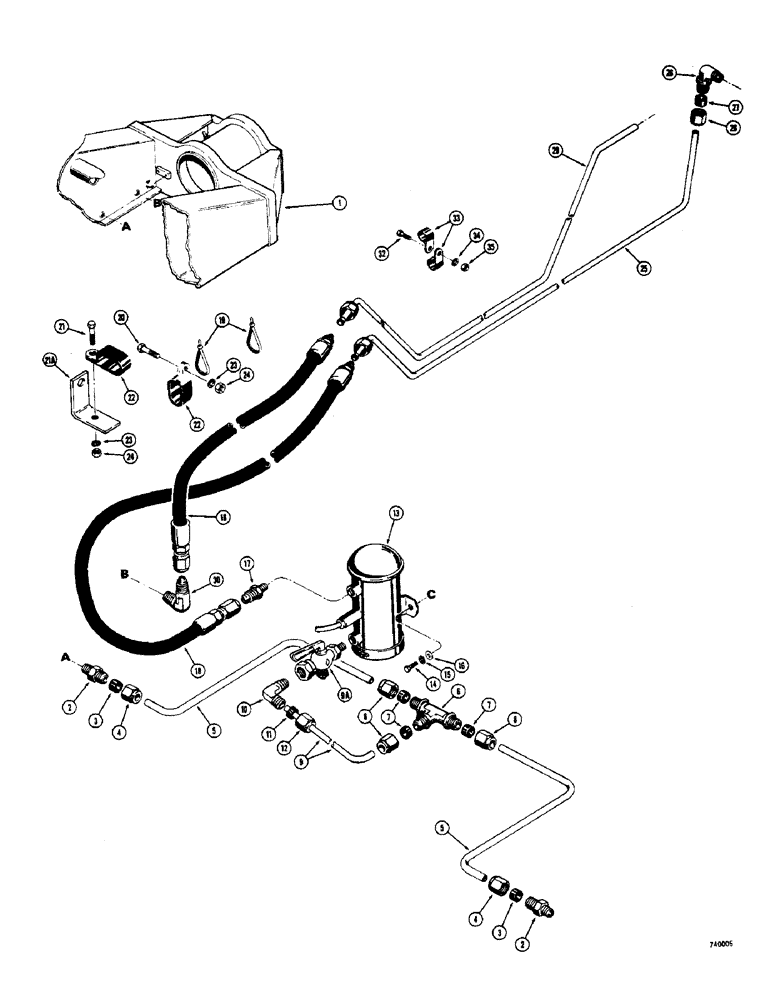

Запчасти Case 600 (072) - FUEL LINES, BEFORE TRACTOR SERIAL NUMBER 9110355 (02) - FUEL SYSTEM

1

REF

INSTRUCTION

REAR FRAME - skidder, see Figure 238 for related parts

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSEMBLY - straight, flex tube, at fuel tank, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

3

222-104

SLEEVE,3/8" Tube

- flex, connector

1шт.

4

222-114

NUT,5/8"-24

NUT - flex, connector

1шт.

5

L52603

TUBE - fuel tank to tee 0.375" OD x 10.4, 12.7" L

2шт.

222-124

TEE - flex, tube, Includes: Ref. 6 - 8 3/8" Flex Tubing

1шт.

6

NSS

NOT SOLD SEPARAT

TEE - tube

1шт.

7

222-104

SLEEVE,3/8" Tube

- tube tee

3шт.

8

222-114

NUT,5/8"-24

NUT - tube tee

3шт.

9

L52604

TUBE - tee to fuel pump 0.375" OD x 1.7" L

1шт.

9a

217-90

FITTING

VALVE - fuel shutoff

1шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, flex tube, at fuel pump inlet

1шт.

10

NSS

NOT SOLD SEPARAT

ELBOW - tube type, 90 degrees

1шт.

11

222-104

SLEEVE,3/8" Tube

- flex connector

1шт.

12

222-114

NUT,5/8"-24

NUT - flex, connector

1шт.

13

L52634

PUMP

- fuel, electric, parts list Figure 76

1шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

95-4

WASHER,1/4"

- plain, 1/4"

2шт.

17

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male, straight, fuel pump outlet

1шт.

18

L52605

HOSE - fuel pump to engine, 88" (2235 mm) long

2шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - hose

2шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21a

L53757

BRACKET - clamp mounting

1шт.

22

T38932

CLAMP

- hose

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

2шт.

25

L52600

TUBE - fuel pressure, hose to engine 0.25" OD

1шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degree, flex tube, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

ELBOW - 90 degrees

1шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - flex connector

1шт.

29

L52602

TUBE - fuel return 0.25" OD

1шт.

30

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

31

RESERVED

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

33

49851

SHIELD

- tube

2шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

1шт.

36

L57836

KIT

- filter, fuel, before fuel pump; parts list Figure 74, ref. 1 - 27 and ref. 4 on Figure 76

1шт.

L57836 fuel filter kit also includes L54235 pump and filter mounting bracket which is to be welded onto the fuel crossover pipe.

1шт.
