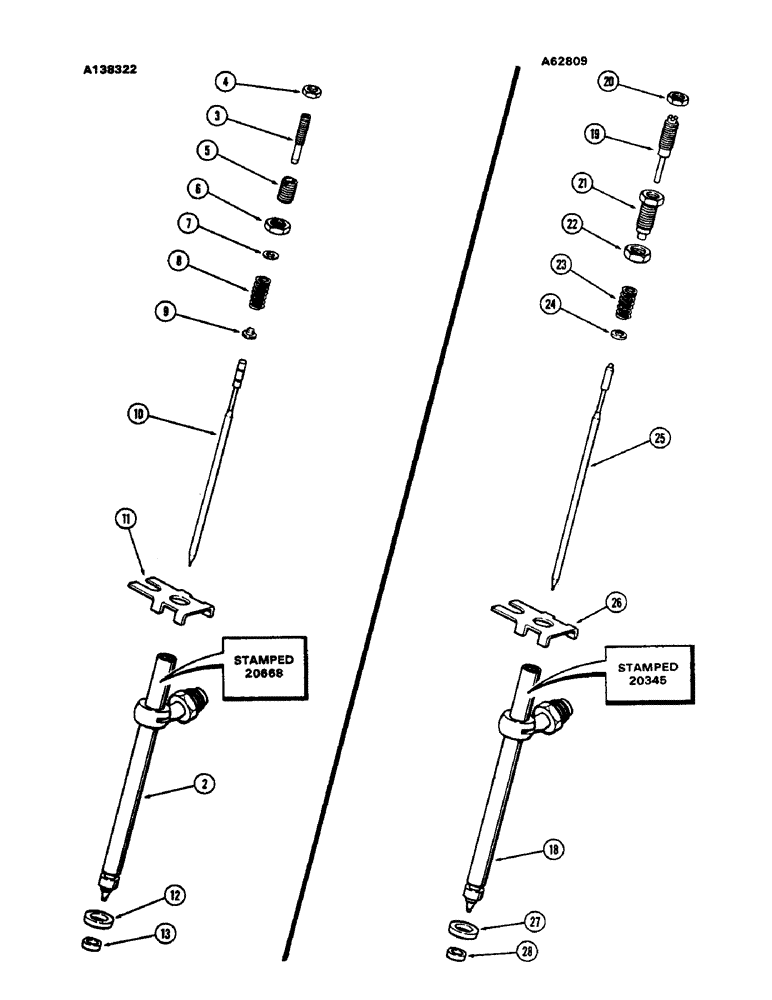

Запчасти Case 600 (057A) - INJECTOR NOZZLES, (336BDT) DIESEL ENGINE, A138322 NOZZLE, FIRST USED ENGINE SERIAL NUMBER 2581421 (02) - FUEL SYSTEM

A138322

NOZZLE CAP

NOZZLE ASSY. - injector (Stamped 20668 on body) (Red color code), Includes: Ref. 2 - 13

4шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

600, 800, 825 all FIRST USED ENGINE SERIAL NUMBER 2581421

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A45632

SHIM

SEAT - pressure spring, upper

1шт.

8

A45290

SPRING

- pressure spring (11/16" free length w/red color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

A62809

NOZZLE CAP

NOZZLE ASSY. - injector (Stamped 20345 on body) (Red color code), A62809 nozzle used prior to engine, Includes: Ref. 18 - 28, Start Serial: 2581421

4шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

600, 800, 825 all (Start Serial: 2581421), FIRST USED ENGINE SERIAL NUMBER 2581421 REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - nozzle, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

19

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

20

A43602

NUT

- lock, lift adjusting, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

21

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

22

A42424

LOCK NUT

- lock, pressure adjusting screw, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

23

A43601

SPRING

- pressure adjusting (1/2" free length w/brown stripe), A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

24

A44369

SEAT

- spring, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

26

A41768

PLATE

- nozzle locating, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A62809 nozzle used prior to engine, Start Serial: 2581421

1шт.
