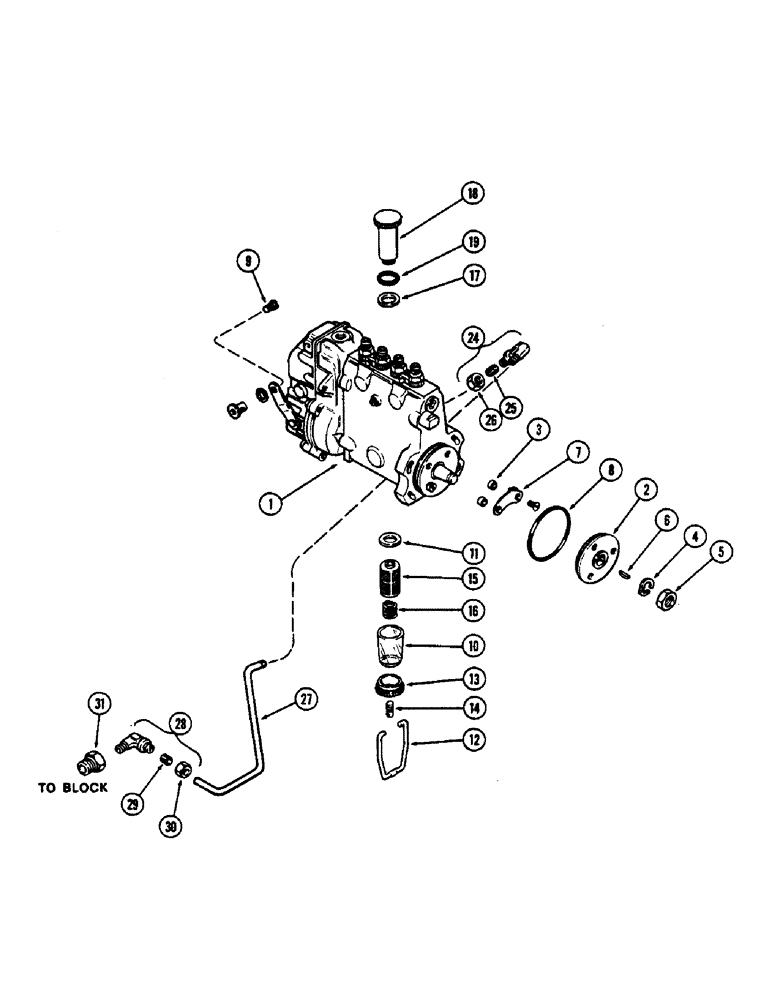

Запчасти Case 600 (055A) - A138014 INJECTION PUMP, (336BD) DIESEL ENGINE, WITH LUBE TUBE ON OUTSIDE OF PUMP (02) - FUEL SYSTEM

1

A138014

PUMP

ASSY. - fuel injection (2200 RPM), Includes: Ref. 2 - 19

1шт.

2

A41853

HUB

- pump drive (With 1/8" keyway)

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut (1/2" I.D.)

1шт.

5

A42313

NUT

- hub retaining (12 mm threads)

1шт.

6

A20933

KEY

- hub to shaft (1/8" wide)

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- (3 x 3-3/16 x 1/8")

1шт.

9

A44259

SCREW

- lock, pump stop control cable

1шт.

10

A43347

BOWL

- filter (Glass)

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

BAIL - bowl hanger

1шт.

13

A43348

NUT

BAILNUT - bowl seat

1шт.

14

A43349

STUD

- bailnut lock & adjustment

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element tension

1шт.

17

A43351

SEAL

- hand primer (Copper)

1шт.

18

A43343

CARTRIDGE

PUMP ASSY. - hand primer

1шт.

19

A45342

GASKET

- primer pump

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - (1/8" P.T. for 1/4" tube), Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

27

A136901

TUBE

- oil, Serial Range: gallery-pump

1шт.

28

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - (1/4" P.T. for 1/4" tube), Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

31

221-53

BUSHING

- reducing (3/8" to 1/4") (In block)

1шт.
