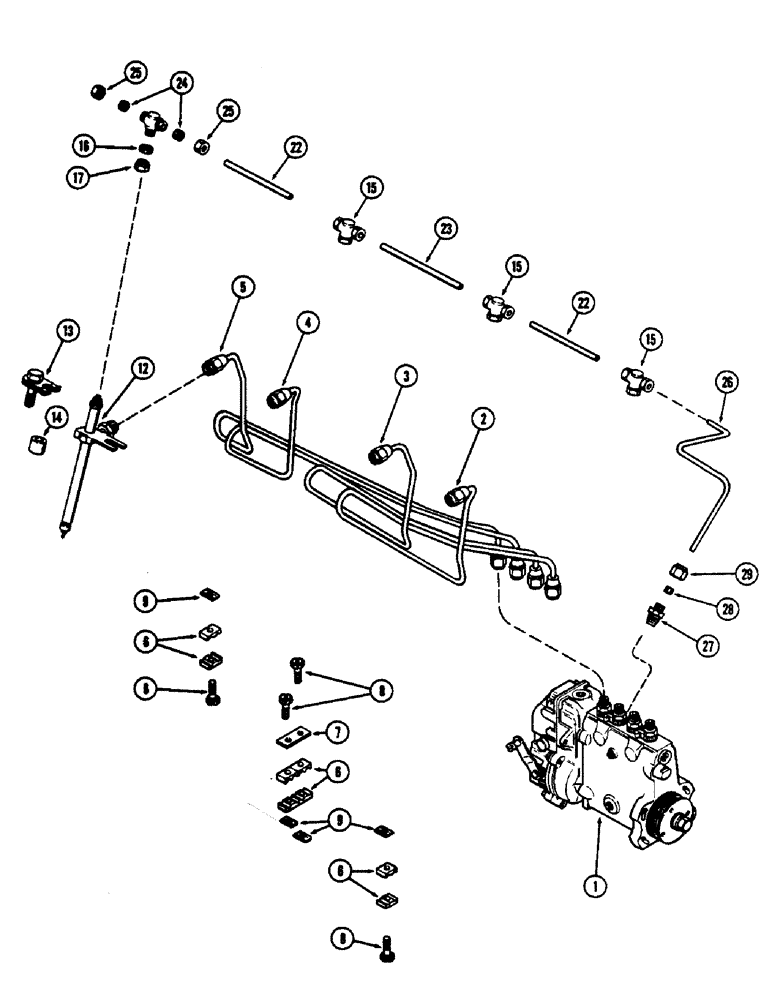

Запчасти Case 600 (050) - FUEL INJECTION SYSTEM, (336BD) AND (336BDT) DIESEL ENGINES (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 48-54)

1шт.

2

A58702

TUBE

ASSY, fuel injection, no. 1 cylinder

1шт.

3

A58703

TUBE

ASSY, fuel injection, no. 2 cylinder

1шт.

4

A58704

TUBE

ASSY, fuel injection, no. 3 cylinder

1шт.

5

A58705

TUBE

ASSY, fuel injection, no. 4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

8шт.

7

A58710

PLATE

Clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

4шт.

12

REF

INSTRUCTION

NOZZLE ASSY, fuel injector (See figures 56 & 58)

4шт.

13

A58695

CLAMP

ASSY, nozzle

4шт.

14

A58696

SPACER

SPACER - nozzle clamp

4шт.

15

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - inj. nozzle & leak-off lines

4шт.

16

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

Tee

4шт.

17

A58961

NUT

Tee

4шт.

22

A58965

TUBE

Leak-off, 4-5/8" long

2шт.

23

A58964

TUBE

Leak-off, 5-5/8" long

1шт.

24

222-102

SLEEVE,1/4" Tube

Leak-off Tube

8шт.

25

87017024

TUBE NUT,1/2"-24

Leak-off (For 1/4" tube)

8шт.

26

A58963

TUBE

Leak-off, no. 1, Serial Range: nozzle-pump

1шт.

27

A28098

VALVE

ASSY, check (One way valve), Includes: Ref. 28 and 29

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

(For 1/4" tube)

1шт.
