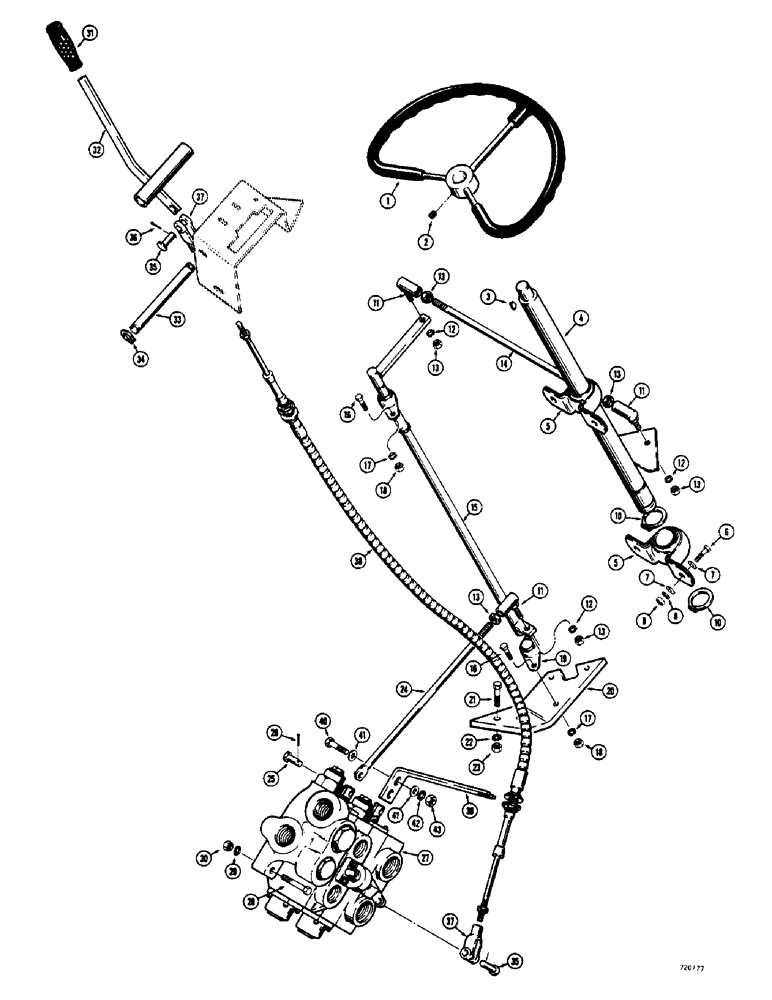

Запчасти Case 600 (092) - STEERING WHEEL AND LINKAGE (13) - STEERING SYSTEM

1

L52040

WHEEL - steering

1шт.

2

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16" - 18 N.C. x 3/8"

1шт.

3

126-210

KEY - Woodruff

1шт.

4

L52791

SHAFT - steering

1шт.

5

L52088

BEARING ASSEMBLY - steering shaft

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex., 3/8" - 16 N.C.

4шт.

10

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

11

D38296

JOINT

BALL JOINT - steering linkage

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., 3/8" - 24 N.F.

6шт.

14

L52795

ROD

- steering, Serial Range: shaft-bellcrank

1шт.

15

L54253

ROD ASSEMBLY - steering

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 N.C.

4шт.

19

L48412

FLANGED BEARING

BEARING ASSEMBLY - self-aligning

1шт.

20

L54255

PLATE - control rod mounting

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

2шт.

24

L52804

ROD -, Serial Range: bellcrank-valve

1шт.

25

A70130

PIN - clevis, 1"

1шт.

26

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

27

L54608

VALVE - hydraulic, parts list Figure 212

1шт.

28

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex., 1/2" - 13 N.C. x 2-1/4"

3шт.

29

92-8

LOCK WASHER,1/2"

3шт.

30

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

3шт.

31

L52476

HANDLE

GRIP - handle, steering control

1шт.

32

L52478

LEVER - flow control, steering

1шт.

33

L52481

PIN - lever mounting

1шт.

34

L11094

RING - retaining

2шт.

35

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4" x 5/64"

2шт.

36

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

37

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - yoke

2шт.

38

L52486

CABLE

- flow control, parts list Figure 242

1шт.

39

L52495

BRACKET - cable mounting

1шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex., 1/2" - 13 N.C. x 1-3/4"

2шт.

41

95-8

WASHER,1/2"

flat 1/2"

4шт.

42

92-8

LOCK WASHER,1/2"

2шт.

43

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 N.C.

2шт.
