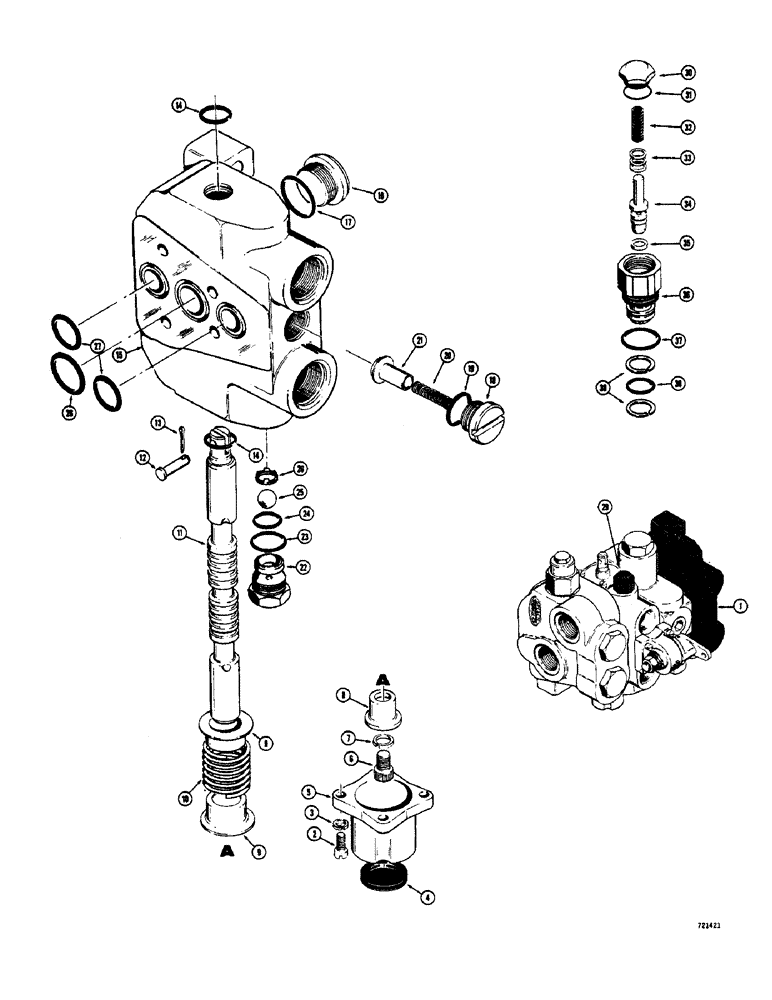

Запчасти Case 600 (216) - 54608 CONTROL VALVE, L35287 DECKING SECTION (07) - HYDRAULIC SYSTEM

1

L35287

DECKING SECTION - decking and steering control valve, Includes: Ref. 2 - 26

1шт.

2

167-157

RHMS - 1/4" - 20 N.C. x 1", zinc plated

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

A55906

DIAPHRAGM

- bonnet

1шт.

5

D51496

HOOD ASSY.

BONNET - end cap

1шт.

6

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SHCS - 3/8" - 16 N.C. x 3/4", spool end

1шт.

7

192-401

LOCK WASHER,3/8"

3/8"

1шт.

8

D51495

COLLAR

- spool end

1шт.

9

D51494

RETAINER

- spring

2шт.

10

D51500

SPRING

- spool return

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - control valve, decking section

1шт.

11a

D23694

ADAPTER

CLEVIS - spool eye, not shown

1шт.

11b

92-6

LOCK WASHER,3/8"

not shown 3/8"

1шт.

12

D23693

AXLE PIN

PIN - clevis

1шт.

13

132-5

COTTER PIN,1/16" x 1/2"

PIN - cotter, 1/4" dia. x 1/2" long

1шт.

14

D51497

SEAL - spool

2шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - decking section

1шт.

16

273916

PLUG,Hex, 1-5/16" - 12 ORB

1" J.I.C. Hex Hd, 1 5/16"-12 ORB

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5160 plug

1шт.

18

D51501

PLUG - check

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- check plug

1шт.

20

D28840

SPRING

- check

1шт.

21

D51502

POPPET - check

1шт.

22

D51515

BODY

- anticavitation check

1шт.

23

D39717

O-RING,1.051" ID x 1.191" OD

- outer

1шт.

24

D39718

O-RING,0.989" ID x 1.129" OD

- inner

1шт.

25

D51513

BALL

- anticavitation check

1шт.

26

D51514

RETAINER - ball

1шт.

27

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- section, small

2шт.

28

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- section, large

1шт.

29

NSS

NOT SOLD SEPARAT

RELIEF ASSEMBLY - secondary, L35285 steering section, relief, Includes: Ref. 30 - 39

2шт.

30

D39716

PLUG

CAP - secondary relief valve, L35285 steering section

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- cap, L35285 steering section, secondary relief

1шт.

32

L35294

SPRING

- relief valve, L35285 steering section, secondary

1шт.

33

D39712

SHIM

- relief valve spring, .0097" thick, L35285 steering section, secondary

1шт.

33

A55894

SHIM,.0209" Thk

Relief valve spring, L35285 steering section, secondary .0209" Thk

1шт.

33

A55893

SHIM,.0418" Thk

Relief valve spring, L35285 steering section, secondary .0418" Thk

1шт.

34

D66490

VALVE POPPET

POPPET - relief valve, L35285 steering section, secondary

1шт.

35

D39714

RING

SEAL - relief valve poppet, L35285 steering section, secondary

1шт.

36

L35293

BODY - relief valve, L35285 steering section, secondary

1шт.

37

D39717

O-RING,1.051" ID x 1.191" OD

- large, L35285 steering section, secondary relief

1шт.

38

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup, small seal, L35285 steering section, secondary relief

2шт.

39

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- small, L35285 steering section, secondary relief

1шт.
